Overview
Magnetic Separator is a device which is designed to assist with the purification and separation of process streams. The heart of each separator is magnetic system, which adopts high quality ferrite materials and rare earth magnets, the average magnetic induction intensity on the shell surface is 100~600mT. This product has the advantages of simple structure, big processing capacity, convenient operation and easy maintenance.
Application
Magnetic separator is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore, ilmenite etc, and can also be used for iron removal work from coal, non-metal ore and construction materials.
The wet type permanent-magnetic cylindrical separator is a common magnetic separator that can be widely used in iron ore separation. It is suitable for separating strong magnetic minerals. In recent years, it’s also used as concentrating equipment for replacing the magnetic dewatering tank before filtration.
Basic Structure
The wet type permanent-magnetic cylindrical separator is mainly composed of cylinder, magnetic system, trough and transmission part. The cylinder is welded by 2-3mm stainless plate, and the end covers are aluminum casting. The two parts are connected with stainless screws and cylinder. The motor drives cylinder and moves circularly through gearbox. The magnetic system which is equipped inside cylinder is an open style. The magnet is fixed on the foundation plate of field yoke by stainless screws. The shaft of field yoke stretches out of cylinder and connecting levers are fixed at the end of shaft. Magnetic system obliquity can be adjusted by tripping connecting levers and the obliquity can be fixed after adjusting well. The working area of trough is made of stainless plate. Machine frame and other parts of trough are welded by ordinary steel.
Working Principle
The pulp flows into the trough from the pulp box, and under the water flow of the feeding spray pipe, the ore particles will go into the feeding area of the trough in the loose condition. In the magnetic field, the magnetic ore particles will have magnetic gathering and form magnet group or magnet chain which is influenced by the magnetic force inside the pulp and moves to the magnetic pole, finally can be attached to the cylinder.
Since the polarity of the magnetic pole along the rotary direction of the cylinder is alternately arranged and fixed when working, when the magnet group or magnet chain rotate with the cylinder, it will have magnetic mixing due to the alternation of the polarity, as a result of which, the non magnetic ore such as gangue mixed up with the magnet group or magnet chain will drop down during the rolling process, and the magnet group or magnet chain that is finally attached to the surface of the cylinder is concentrate. The concentrate rotates to the edge of the magnetic system where the magnetic force is the weakest along with the cylinder, and under the water flow of the discharging spray pipe, it will be discharged to the concentrate chute. If the roller is all magnetic roller, the ore discharging is completed by brush roll. The non magnetic and weak magnetic minerals are kept in the pump and are discharged from the chute with the pulp to become gangue.
Features
1. The strength of magnetic field is large in the surface of tube;
2. Large wrap angle of magnetic system;
3. The strength of magnetic field is stability;
4. The transmission system is stable and reliable;
5. Can significantly improve the grade of ore before it is into the mill.
Technical Date
Model |
Barrel Diameter (mm) |
Barrel Length(mm) |
Capacity(t/h) |
Barrel Rotate Speed (r/min) |
Motor Power(kw) |
Weight(kg) |
CTB618 |
600 |
1800 |
18-35 |
40 |
2.2 |
1655 |
CTB712 |
750 |
1200 |
12-30 |
35 |
3 |
1682 |
CTB718 |
750 |
1800 |
20-45 |
35 |
3 |
1992 |
CTB918 |
900 |
1800 |
28-60 |
27 |
4 |
3162 |
CTB1018 |
1050 |
1800 |
36-72 |
22 |
4 |
3801 |
CTB1024 |
1050 |
2400 |
52-100 |
22 |
5.5 |
4319 |
CTB1030 |
1050 |
3000 |
64-125 |
22 |
7.5 |
4976 |
CTB1218 |
1200 |
1800 |
55-95 |
19 |
7.5 |
5263 |
CTB1224 |
1200 |
2400 |
65-110 |
19 |
7.5 |
5927 |
CTB1230 |
1200 |
3000 |
85-120 |
19 |
7.5 |
6325 |
CTB1530 |
1500 |
3000 |
95-160 |
16 |
11 |
8665 |
CTB1540 |
1500 |
4000 |
120-190 |
16 |
11 |
9871 |

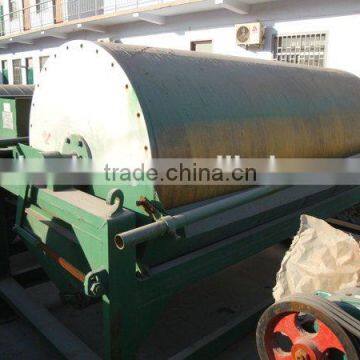

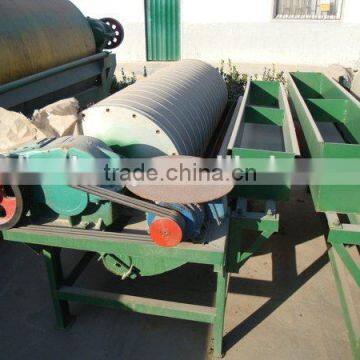

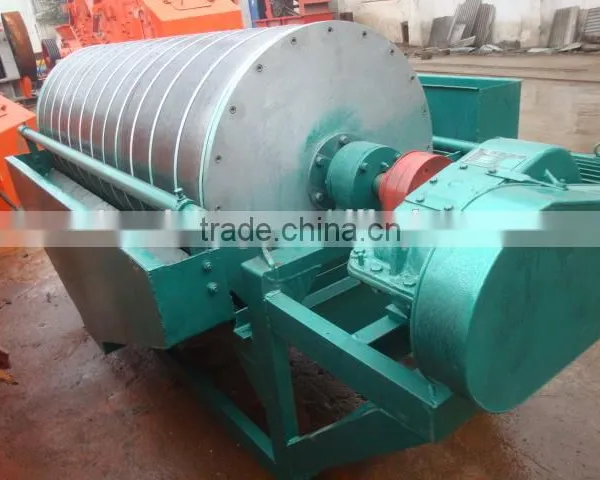

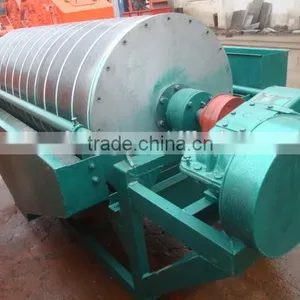

View of magnetic separator:

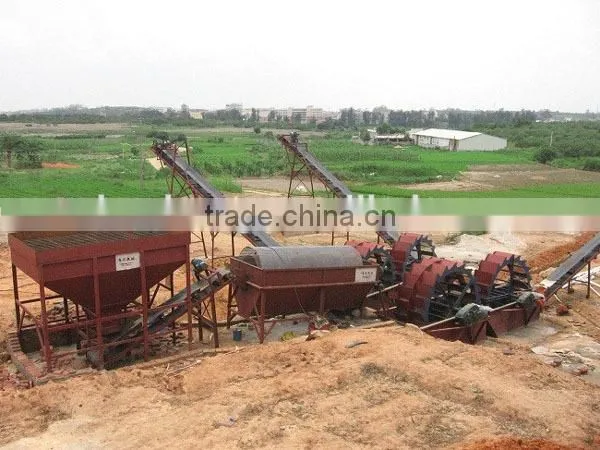

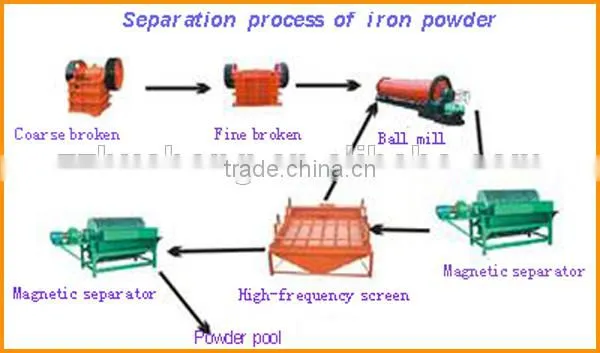

Minging magnetic separator flowchart

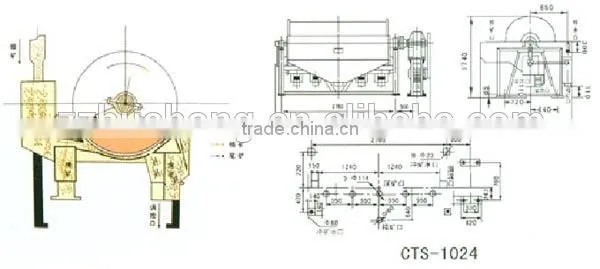

Structure of magnetic separator:
Working condition :
We have developed long and good relationship with many shipping agents. Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available. The perfect shipping way and best service with lowest price are always provided for customers.
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
HUAHONG equipment machinary Co,.Ltd of Zhengzhou .this is a mainly in production of large medium-size crusher (broken flour mill ) , research & development, production , sales as one of a limited liability company.
1.The main productd of our company include more than 10 series: sand making machine , hammer crusher, mobile crushing plant , vibrating feeder , linear vibrating screen , stone washing machine , ball mill ,etc..
2.Widely used in mining , coal , chemical , metallurgy , building materials and other industries.
3.Our company has a large number of rich-experience and professional staff.Reliable quality and nice service make our company enjoys a good reputation overseas.Which has been sold in Hongkong , Indonesia , Russia, Australia and other countries.
4.The product has approved by ISO9001:2000 international quality system.
