Mineral Processing Equipment, Magnetic Separator,drum Magnetic Separator

Advantages of magnetic separator

1).Large handling capacity: 10~280 t/h

2).Improve mineral grade, reduce process under load

3).Sort the fine materials and return the inferior for re-burning

4).Improve sorting efficiency with low investment

5).Improved equipment performance and reliability

6).Rapid, simple and convenient maintenance can reduce downtime of the machine

Mineral separation equipment, magnetic separator structure chart

Structural features of  magnetic separator

 High gradient iron ore wet magnetic separator lab is composed of round cylinder, roll cylinder, brush roll, magnetic system, and trough and drive device

• The round cylinder is welded by 2-3mm of corrosion resistant plate and the end cover is aluminum casting or work piece and is connected t the cylinder with stainless screws

• The motor drives the round cylinder; magnetic roll and brush roll to rotate through the reducer or electrodeless adjustable-speed motor is directly used to drive them to rotate

 The magnetic separator display

The back view of maganatic sparator

The front view of maganetic separator

The side view of maganetic separator

Magnetic Separator  Main technical parameters:

Magnetic separator in shipment

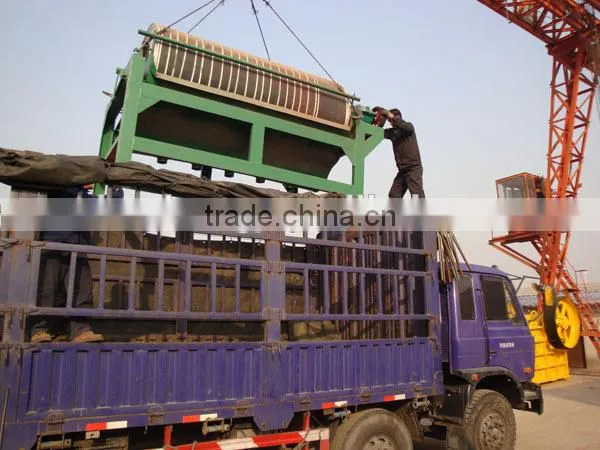

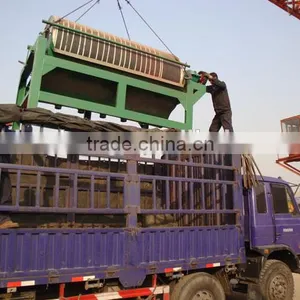

 Hanging the magnetic separator

Loading for delivery

Magnetic separator application:

Mining magnetic separator can separate raw materials with different magnetic rigidities. The machine works by using magnetic force and the machine force. Magnetic separators are designed to recover ferromagnetic materials. The separators are available in designs and sizes to provide solutions for all applications.Magnetic Separator is a  kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephrite.

Mineral processing equipment(ball mill )

Technical features

1. Vertical Ring Rotation & Pulsating Beneficiation

2. High Frequency Vibration Mechanism

3. Wide Range of Feed Particle Size

4. Multi-Gradient Matrixes & Liquid Level Control System.

These technologies improve the grade of magnetic concentrate and recovery.

5. Frequency Conversion Step-less Adjustment for Rotary Speed & Vibrating Frequency.

6. No Stepper Phenomenon of Rotary Ringsf trough are welded by ordinary stee

 Magnetic separator practise using:

 Sharp tools make good work:

Huahong has brought advanced manfacturing equipments from home & abroad. Numerical control machine tools with

high-precision, large processing equipments & special test equipments provide strong safeguard for product quality and

company development.

Welcome to visit our factory!we will provide the best machine for you with the lowest price.
