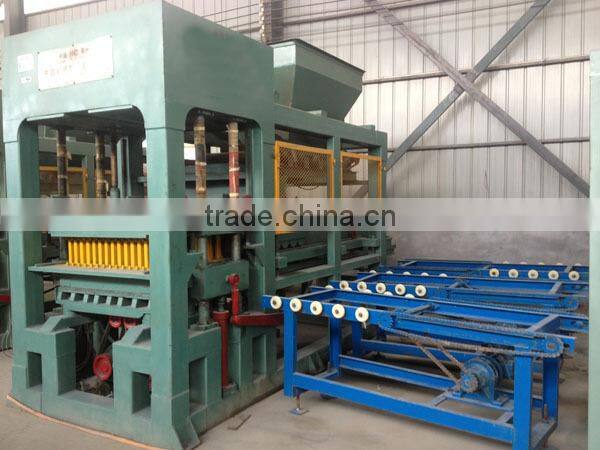

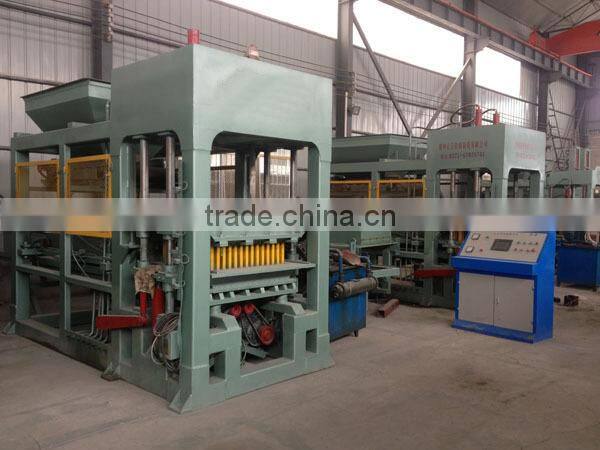

Help CenterQTJ4-35 High Quality Concrete Block Making Machine /Small Brick Making Machine
Related Products
-
SY1-10 Full Automatic Interlocking Brick Making Machine PriceUS$ 1,000 - 10,000MOQ: 1 Set -
Concrete Automatic Brick Making MachineUS$ 600 - 20,000MOQ: 1 Set
-
QMR 2-40 Manual Compressed Earth Block MachineUS$ 800 - 900MOQ: 1 Set
-
QMR 2-40 Movable Concrete Block Making MachineUS$ 800 - 900MOQ: 1 Set
-
QMR 2-40 Mud Block Machine,manual Interlock Brick Making Machine PriceUS$ 800 - 900MOQ: 1 Set
Specifications
1.high density bricks
2.ISO9001:2000,good quality
3.heat-resistant motors
4.easy to operate,low cost
5.easy to maintain.
Equipment Superiorities:
1.The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, fault diagnosis and parameters setting, ensure the best operation of the machine.
2.Unique design. The special loading and supply unit, the mufti-line whipping forks are fixed at inside of material feed box. The whipping forks works and feed the material to mold box forcedly during the material feed moves to up of mold box, the feed will smoothly and equalization, than for the product, the intensity is insured and the weight is equal.
3.Design with super strong vibrating activated force. The computer controls the pressure and flowing rate of hydraulic system; vertical synchro-vibration; frequency conversion; brake, final the product reaches the high density and high strength within short time.
4.Multi use. strong performance; the many kind of products with difference form and size can be when use the difference mold, such as wall brick, honeycomb type block.
Main Technical Parameters of QTJ4-35 Small Block Making Machine:
Dimension of host machine |
2050x1660x1900mm |
Power of host machine |
10.4KW |
Weight of host machine |
2.8T |
Viberation force |
32KN |
Productivity |
3500-3800Pcs |
Pallet size |
850x450x30mm |
Theoretical Production Capacity of QTJ4-35 Small Block Making Machine :
Size |
Quantity |
Cycle moulding |
Per hour |
Per day |
|
Hollow block |
400*200*200 |
4 |
25-35s |
400pcs |
4000pcs |
Hollow block |
400*150*200 |
5 |
25-35s |
500pcs |
5000pcs |
Porous block |
390*240*190 |
3 |
25-35s |
300pcs |
3000pcs |
Standard block |
240*150*53 |
21 |
25-35s |
2100pcs |
21000pcs |
