Specifications
Automatic brick making machine:Brick making machine for clay,soil,concrete,cement
To make all kinds of hollow or solid bricks

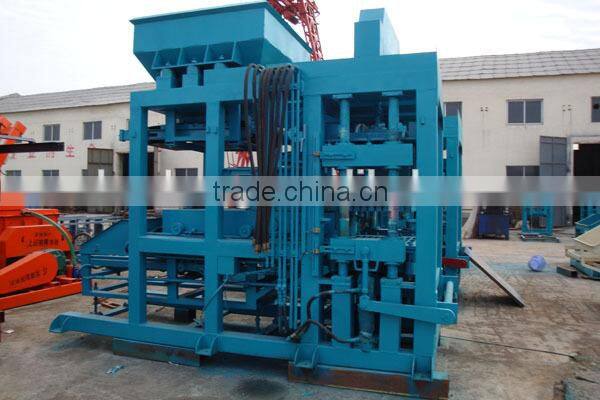

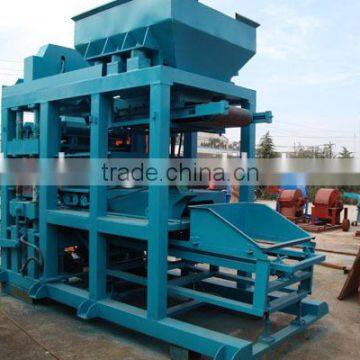

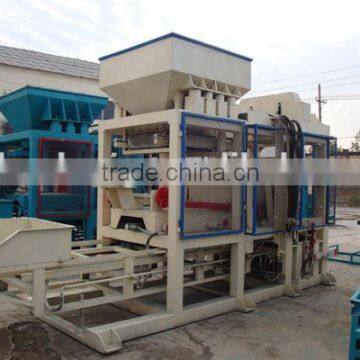

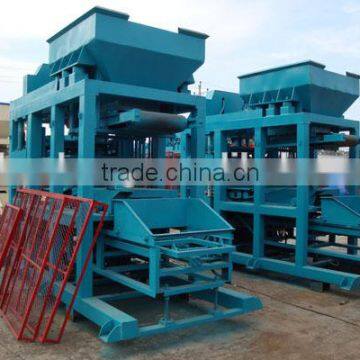

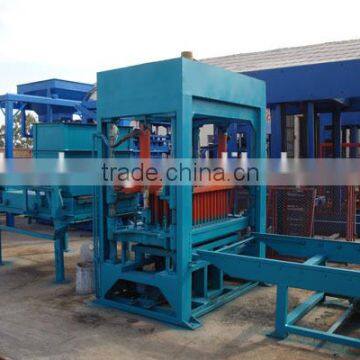

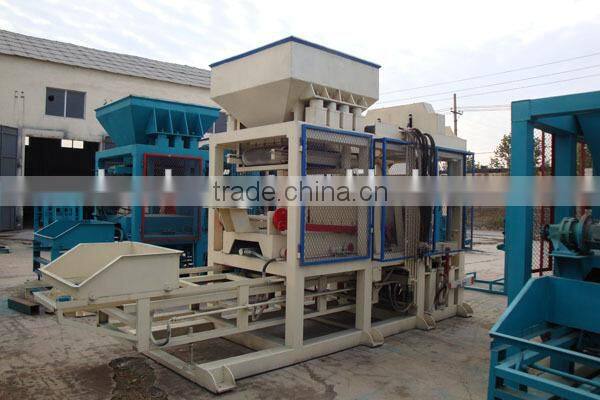

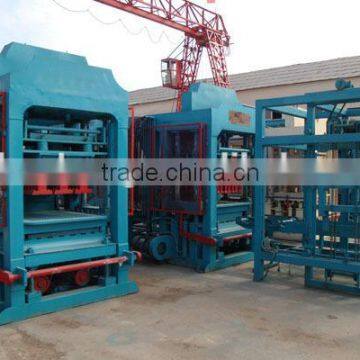

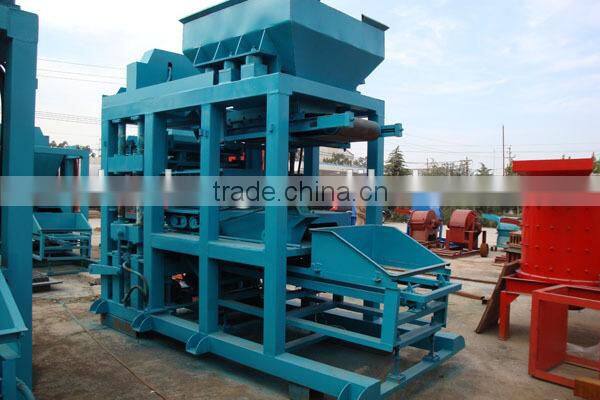

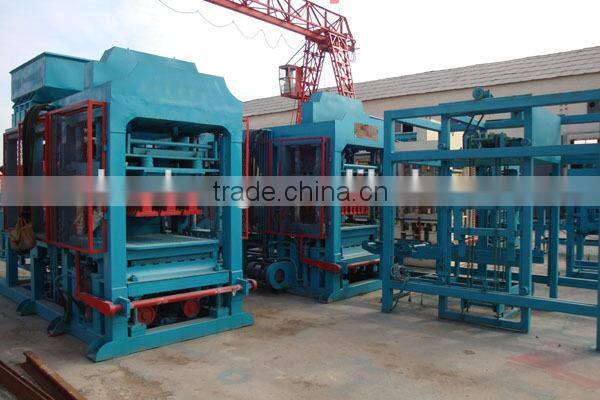

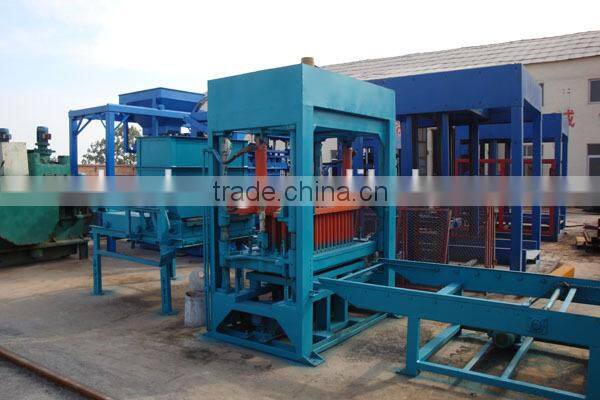

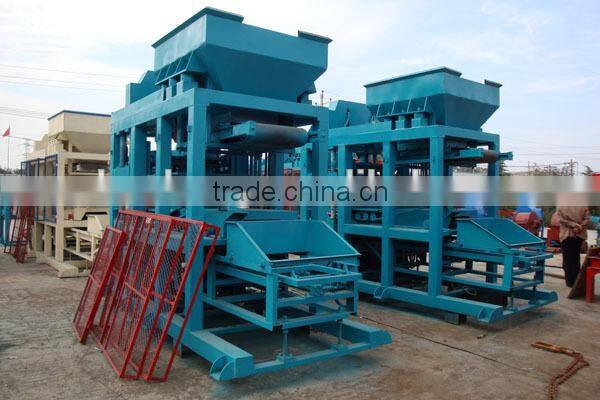

Concrete automatic brick making machine
Why do customers choose Huahong?
Huahong automatic brick making machine's features:
1.Full automatic;
2.Wide range of materials;
3.High strength,wide application;
4.Low investment,quick working effects.
5.Output products with good consistency;
6.Intelligent electronic control;
7.Hydraulic system is reliable;
8.Good adaptability to raw materials;
Huahong automatic brick making machine's applications:
Suitable for fixed producting all kinds of different specifications of standard brick hollow block porous brick and concrete products.
Main technical parameters:
Parameter name | Parameter values | |
Overall size(mm) | 6600×1990×3000(L×W×H)(mm) | |
Rated hydraulic pressure(mpa) | 21Mpa | |
The main vibration form | Table moulded combined vibration | |
Vibration frequency (hz) | 50~70Hz | |
Acceleration of vibration(g) | 10-15g | |
Adapt to high brick (mm) | 50-200mm | |
Carrier size (mm) | wooden | 830×660×(40±1)(mm) |
made of iron | 830×660×(8-10±1)(mm) | |
Molding cycle | 15 second | |
Output (per hour) | Standard block (240x115x53mm) | 43200-57600 block / 8 hours |
Feeding device capacity (m3) | Bin's effective volume 0.45 | |
Charging car's effective volume 0.15 | ||
Rated Power (kw) | 36.8kw | |
Weight (t) | 12000kg | |
Automatic brick making machine's forming specifications and quantity:
Project logarithmic type | Block specification(mm)
| Block specification (mm)
| Molding cycle (seconds) | Class production (8hours) (block)
| Host power (kw)
|
JL6-15 | 390×190×190(building blocks | 6 | 15-20 | 8640-11500 | 36.8 |
240×115×90(perforated brick) | 15 | 15-20 | 21600-28800 | ||
240×115×53(Standard Brick) | 30 | 15-20 | 43200-57600 |
