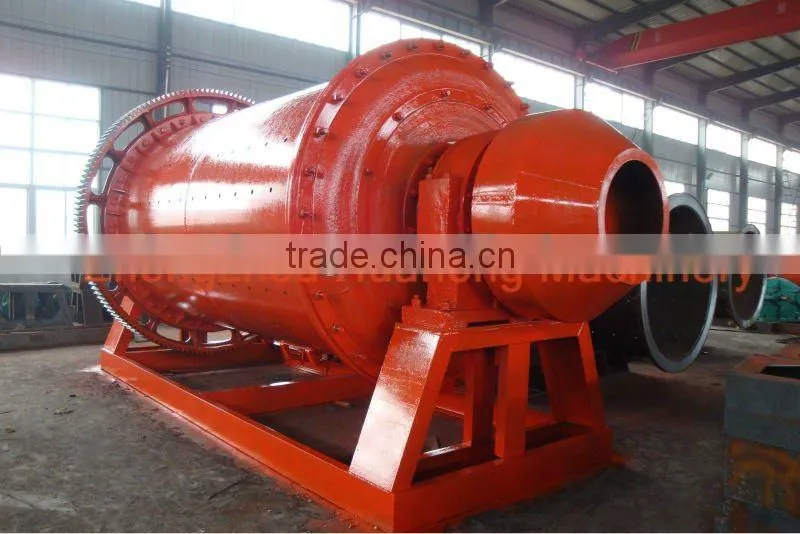

Help CenterMq1500*5700 Grinding Machine Ball Mill
Related Products
-
Clirik Large Capacity Ball Mill/Cement Ball Mill With Fairest PriceUS$ 3,500 - 99,999MOQ: 1 Set -
900*1800 Small Planetary Ball MillUS$ 3,500 - 99,999MOQ: 1 Set
-
Chocolate Ball Mill, Laboratory Ball Mill Machine, Small Ball Mill for SaleUS$ 3,000 - 12,000MOQ: 1 Set
-
Ball Mill Machinery, Mini Cement Grinding Plant for SaleUS$ 3,000 - 12,000MOQ: 1 Set
-
Ball Mill Copper Ore Gold Ore Wet Ball Mill PriceUS$ 3,000 - 12,000MOQ: 1 Set
Small powder grinding machine for sale
Ball mill prices
The small ball mill for sale is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Features of ball mill prices

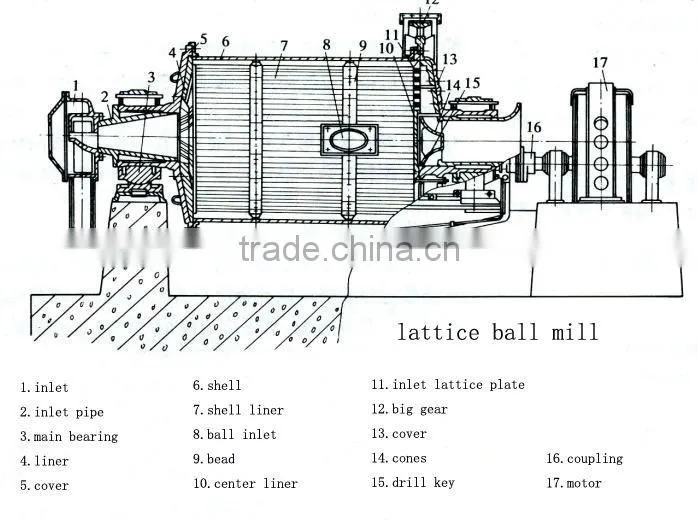

small ball mill for sale is mainly composed of charging and discharging, cyclone and rotation parts (like redactor, minor rotationgear, motor, electric machine, etc). Hollow axis is made of steel partswith a lining replacable. Major rotation gear, machined by rollingwheel of casting, is lined with wearing plate with fine wear-resistingproperty
This machine runs stably and reliably. Based on difference of materials and discharging types, dry Ball mill and wet Ball mill are selectable
Ball mill prices Working Principle
When operating, the motor drives cylinder drum to rotate. The raw material is placed into the cylinder through one end.
Many grinding balls inside the cylinder will rotate with the drum. Balls fall down from above and hit the material
over and over. When the milled materials accumulate, the machine will discharge them from end outlet.
Ball mill prices Technical Data
Model |
Rotation speed(rpm) |
Input size(mm) |
Output size(mm) |
Capacity(t/h) |
Power(kw) |
Weight(ton) |
900*1800 |
38 |
<=20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
900*3000 |
38 |
<=20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.5 |
1200*2400 |
32 |
<=25 |
0.075-0.6 |
1.5-4.8 |
30 |
11.5 |
1200*4500 |
32 |
<=25 |
0.074-0.4 |
1.6-5.8 |
45 |
13.8 |
1500*3000 |
27 |
<=25 |
0.074-0.4 |
2-5 |
75 |
17 |
1500*4500 |
27 |
<=25 |
0.074-0.4 |
3.5-12 |
110 |
21 |
1500*5700 |
27 |
<=25 |
0.074-0.4 |
3.5-8 |
115 |
24.7 |
1830*3000 |
24 |
<=25 |
0.074-0.4 |
4-10 |
130 |
28 |
1830*7000 |
24 |
<=25 |
0.074-0.4 |
7.5-17 |
210 |
36 |
2200*5500 |
21 |
<=25 |
0.074-0.4 |
10-22 |
210 |
48.5 |
2200*6500 |
21 |
<=25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
2200*7500 |
21 |
<=25 |
0.074-0.4 |
16-29 |
380 |
56 |
Ball mill prices
