60Ton Power Press Machine Fixed Bed Pneumatic Power Press for Sale
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
60Ton C-type Punch Press Mechanical Power Press With Wet Cluth
-
60Ton Crank Mechanical Power Press for Sheet Metal With Wet Cluth
-
60Ton JH21 C Frame Power Press High Speed Pneumatic Punch Machine
-
60Ton CNC Mechanical Punching Machine/mechanical Power Press
-
60Ton PLC Controller Punching Press Machine and Power Press for Sale
-
60Ton High Speed Mechanical Power Press Machine With Wet Type Cluth
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Mechanical | Place of Origin | Jiangsu, China | |
| Brand Name | WORLD | Model Number | JH21-60 | |
| Voltage | 380V | Power(W) | 5.5kw | |
| Weight | 5150kg | Dimension(L*W*H) | 2570x1200x1540mm | |
| Certification | CE, ISO | Warranty | 12months | |
| After-sales Service Provided | Overseas service center available |
Product Description
60Ton power press machine fixed bed pneumatic power press for sale
Features:
1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2.Vertical located crankshaft, compact structure;
3.The crankshaft undergoes grinding treatment after high frequency quenching;
4.Lengthened rectangular guideway with a surface of bronze plate;
5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
6.PLC control and imported safety dual valve;
7.Wet clutch and hydraulic overload protector.
60Ton power press machine fixed bed pneumatic power press for sale

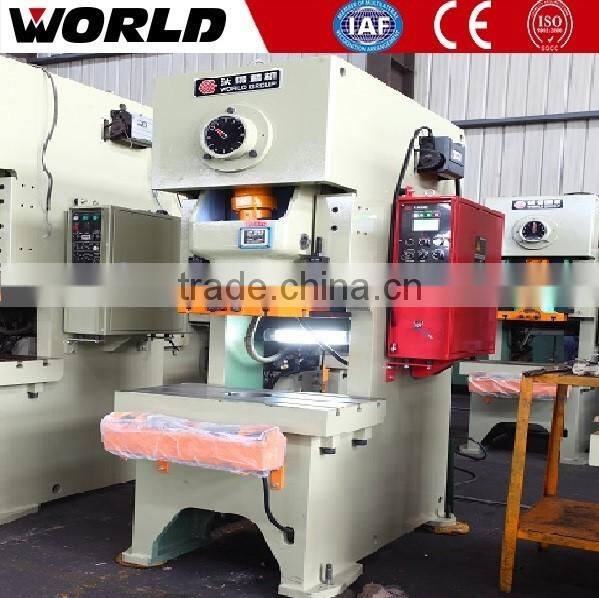

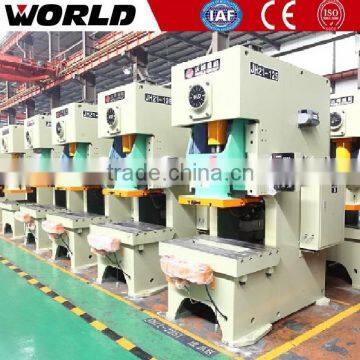

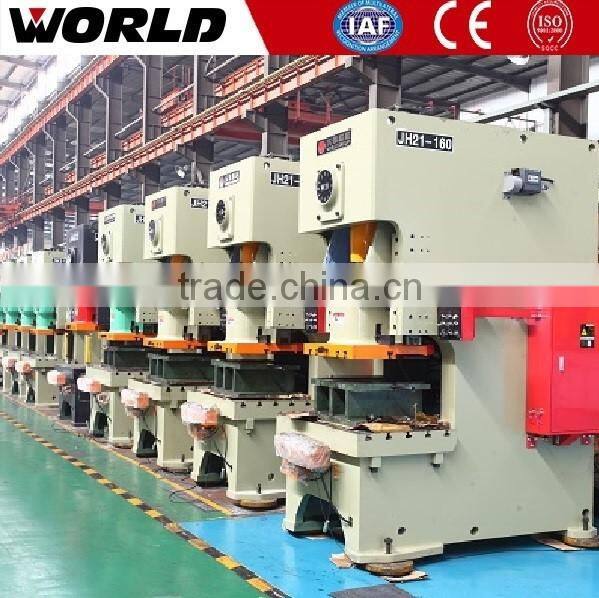

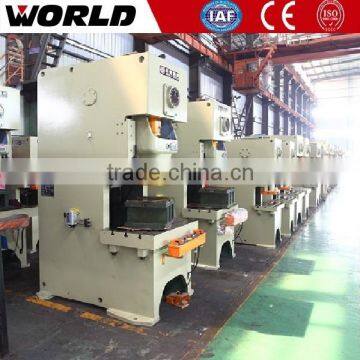

Photos of 60Ton power press machine fixed bed pneumatic power press for sale
Specifications of 60Ton power press machine fixed bed pneumatic power press for sale
| ITEM | UNIT | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-125 | JH21-160 | JH21-200 | JH21-250 | JH21-315 | JH21-400 | |
| Nomonal Capacity | KN | 250 | 450 | 600 | 800 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | |
| Slide Stroke | mm | 80 | 120 | 140 | 160 | 180 | 200 | 250 | 250 | 250 | 270 | |
| Slide Strokes | Times/min | 60-100 | 50-80 | 45-70 | 40-60 | 35-50 | 30-45 | 25-45 | 20-30 | 20-30 | 20-30 | |
| Max. Die Height | mm | 250 | 270 | 300 | 320 | 350 | 400 | 450 | 500 | 500 | 550 | |
| Die Height Adjustment | mm | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 120 | 120 | |
| Throat Depth | mm | 210 | 225 | 270 | 310 | 350 | 400 | 430 | 450 | 450 | 490 | |
| Distance Between Uprights | mm | 450 | 515 | 560 | 610 | 670 | 736 | 910 | 980 | 980 | 1050 | |
| Slide Bottom Size | Forward - Rear | mm | 250 | 340 | 400 | 460 | 520 | 580 | 650 | 700 | 700 | 750 |
| Left - Right | mm | 360 | 410 | 480 | 540 | 620 | 700 | 880 | 950 | 950 | 1020 | |
| Shank Hole Size | Diameter | mm | 40 | 50 | 50 | 50 | 70 | 70 | 70 | 70 | 70 | 70 |
| Depth | mm | 65 | 60 | 70 | 65 | 90 | 100 | 100 | 130 | 130 | 130 | |
| Bolster Size | Forward - Rear | mm | 400 | 440 | 520 | 600 | 680 | 760 | 840 | 880 | 880 | 950 |
| Left - Right | mm | 720 | 825 | 930 | 950 | 1100 | 1170 | 1390 | 1500 | 1540 | 1700 | |
| Thickness | mm | 80 | 110 | 130 | 140 | 155 | 165 | 180 | 190 | 190 | 210 | |
| Bed Opening Hole Diameter | mm | 150 | 150 | 150 | 150 | 160 | 180 | 200 | 200 | 200 | 200 | |
| Overall Dimensions | Forward -Rear | mm | 1496 | 1585 | 1540 | 1765 | 2040 | 2305 | 2600 | 2660 | 2720 | 2850 |
| Left - Right | mm | 945 | 1075 | 1200 | 1200 | 1320 | 1420 | 1540 | 1640 | 1680 | 1750 | |
| Height | mm | 2120 | 2391 | 2570 | 2725 | 3035 | 3215 | 3800 | 3865 | 3865 | 4150 | |
| Motor Power | KW | 3 | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | |
| Weight(approximate) | kg | 2450 | 3550 | 5150 | 6450 | 9550 | 13600 | 19200 | 23200 | 26600 | 31600 | |

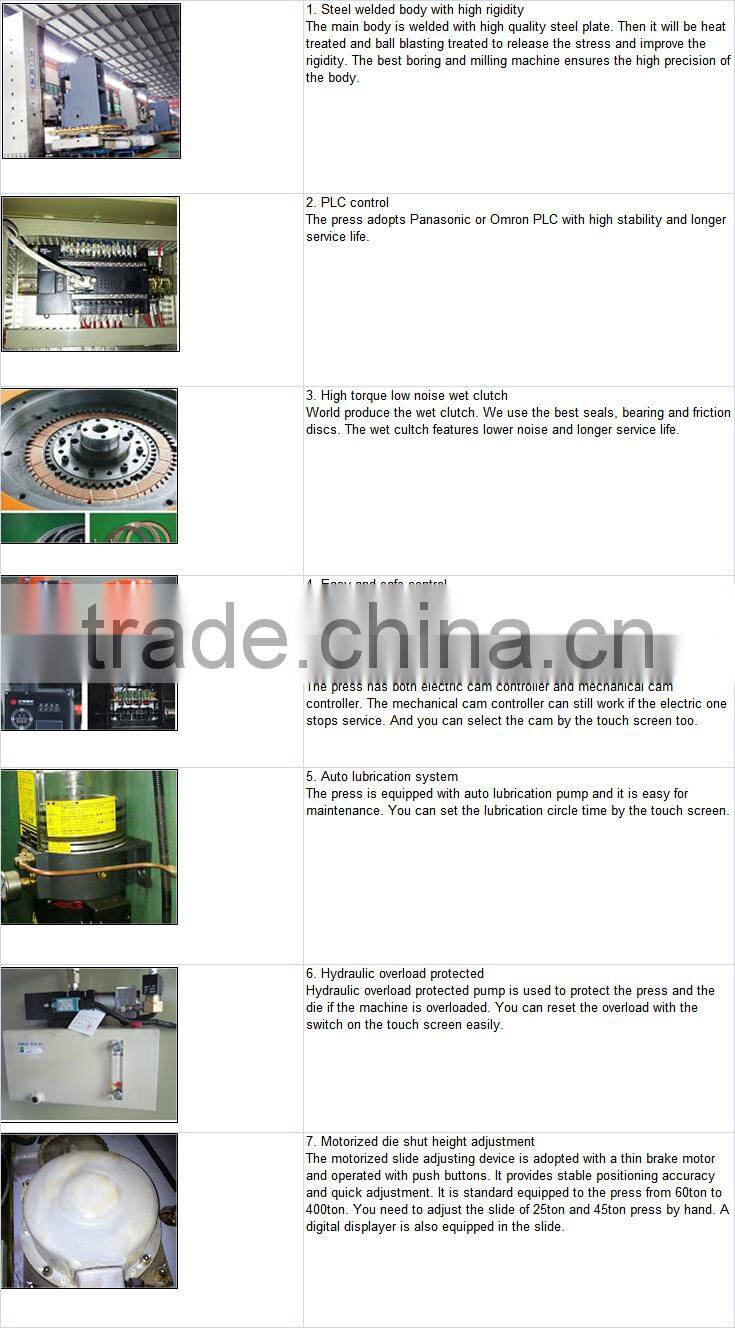

Details of 60Ton power press machine fixed bed pneumatic power press for sale
60Ton power press machine fixed bed pneumatic power press for sale
