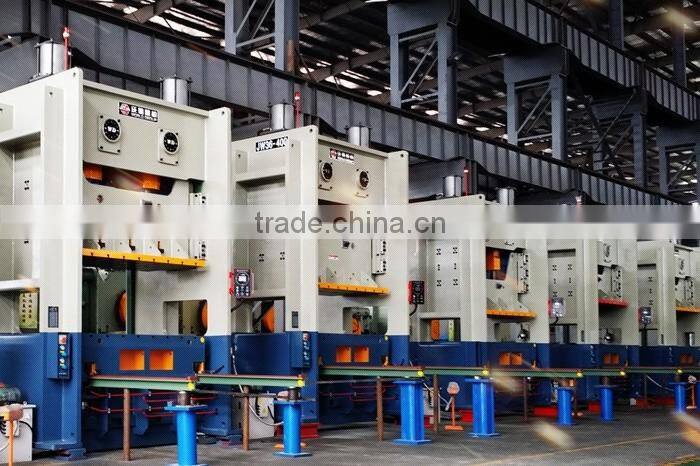

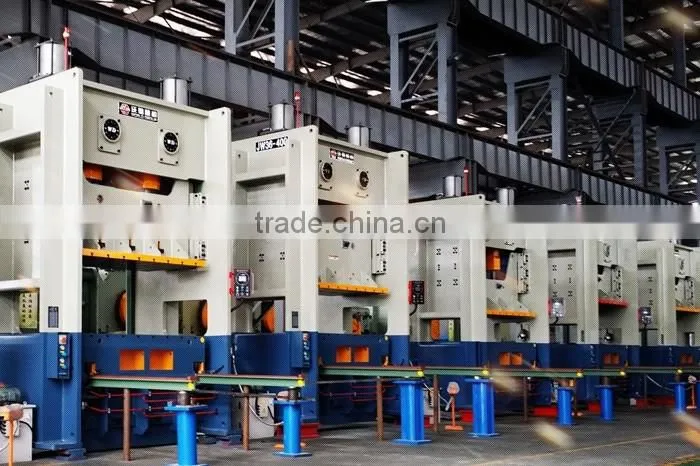

Help Center250 Ton H Frame Double Crank Mechanical Power Press Machine Jw36-250
Related Products
-
500ton Pneumatic Double Crank Mechanical Power Press Machine for Sale JW36US$ 20,000 - 120,000MOQ: 1 Piece -
200ton Double Crank Sheet Mechanical Metal Stamping Press Machine JW36-200US$ 10,000 - 70,000MOQ: 1 Piece
-
Close Type Automatic Metal Stamping Press Machine for Sale JW36US$ 80,000 - 100,000MOQ: 1 Piece
-
500ton Automatic Crank Press Mechanical Power Press Machine for Sale JW36-500US$ 10,000 - 100,000MOQ: 1 Piece
-
500ton H Type Double Crank Press Automatic Mechanical Power Press for Sale JW36-500US$ 10,000 - 100,000MOQ: 1 Piece
H
Specifications of mechanical H Frame Automatic metal stamping Power Press Machine 400 ton JW36-400
| ITEM | UNIT | JW36-200 | JW36-315 | JW36-400 | |
| Nominal Capacity | KN | 2000 | 3150 | 4000 | |
| Slide Stroke Length | mm | 250 | 300 | 300 | |
| Slide Strokes | Fixed | Times/min | 35 | 35 | 25 |
| Variable(optional) | Times/min | 45 | 25-35 | 20-25 | |
| Max.Die Set Height | mm | 500 | 550 | 600 | |
| Die Set Height Adjustment | mm | 110 | 120 | 130 | |
| Side Hole Size | Forward-Rear | mm | 920 | 1020 | 1200 |
| Height | mm | 450 | 460 | 550 | |
| Distance Between Columns | mm | 2390 | 2680 | 2910 | |
| Bolster Size | Forward-Rear | mm | 900 | 1100 | 1200 |
| Left-Right | mm | 2300 | 2600 | 2800 | |
| Thickness | mm | 170 | 190 | 200 | |
| Slide Bottom Size | Forward-Rear | mm | 800 | 1000 | 1100 |
| Left-Right | mm | 2000 | 2300 | 2500 | |
| Bolster Surface Height | mm | 1000 | 1150 | 1200 | |
| Overall Dimensions | Forward-Rear | mm | 2750 | 3020 | 3550 |
| Left-Right | mm | 3350 | 3650 | 3900 | |
| Height | mm | 3850 | 4400 | 4500 | |
| Motor Power | KW | 22 | 37 | 45 | |
| Weight(approximate) | kg | 30000 | 45000 | 56000 | |

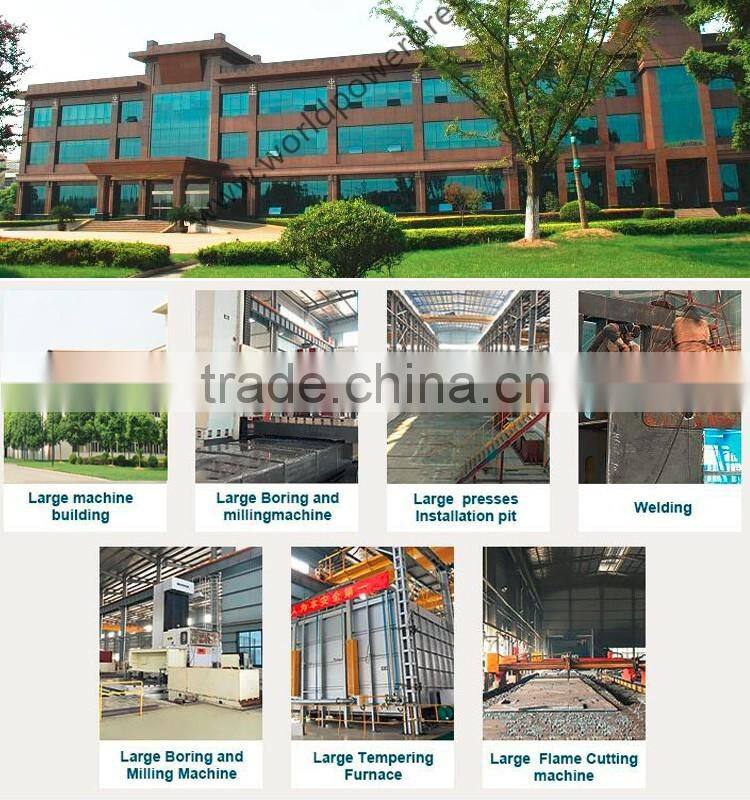

World Precise Machinery Group establishes in 1953 which is located in Shanghai economic zoom. World Precise Machinery is the pioneer of the first five years planning of the New China, and also is one of the oldest and most professional manufacturer of punching equipment. After listing in Singapore market, World’s products are paid great attention with high quality and superb technique.
We have clients in Europe: Russia,Poland,Turkey,Slovenia, Germany,etc.
Middle east: Iran, Saudi, UAE, etc.
Africa:South Africa, Egypt,Kenya,Jamaica, etc.
Asia:Pakistan,Thailand,Indonesia,Uzbekistan,India,Vietnam, Israel,etc
South America:Brazil,Mexico etc
Australia,New Zealand, etc
