H Frame Automatic Power Press Machine 400 ton JW36-400 Main Features of H Frame Automatic Power Press Machine 400 ton JW36-400:
1.Steel welded body, VSR(Vibratory Stress Relief);
2.Wet clutch, hydraulic overload protector;
3.Double crankshaft,
4.Quadranglar eight surfaces guideway;
5.Auto lubrication, electric die adjustment;
6.PLC control.
Standard Equipments: Optional Equipments:
1) Wet clutch 1) Dry clutch
2) PLC 2) Light curtain
3) Hydraulic overload protecting pump 3) Inverter
4) Touch screen 4) Variable speed motor
5) Cam controller 5) Foot pedal
6) Die height adjusted motor 6) Cushion
7) Auto lubrication system 7) Auto feeding shaft
8) Manual lubrication system 8) NC feeder
9) Double hand control panel 9) Die quick change device
10) Electronic crankshaft angle indicator
11) Predetermined counter
12) Balance cylinders for slide and upper die
13) Work light
14) Absorbing pads

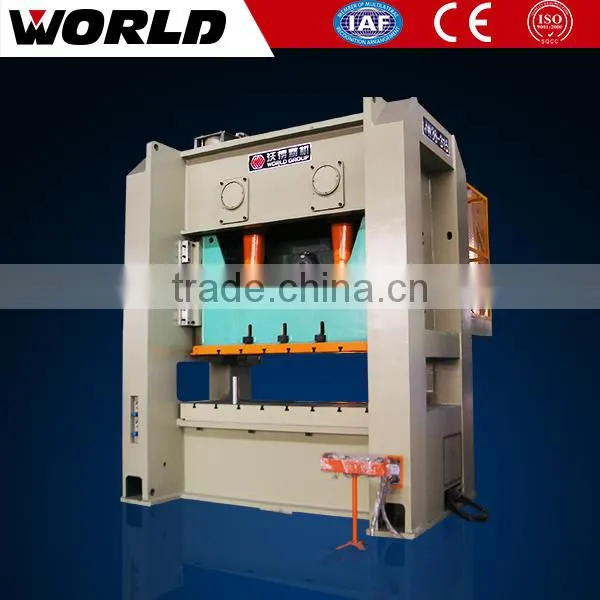

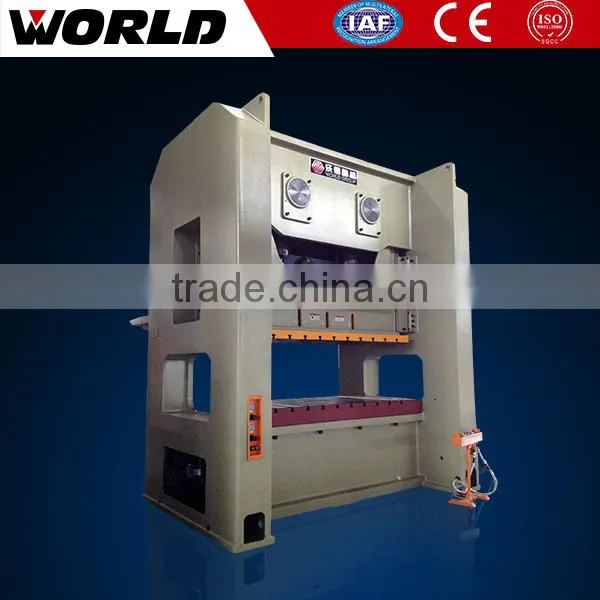

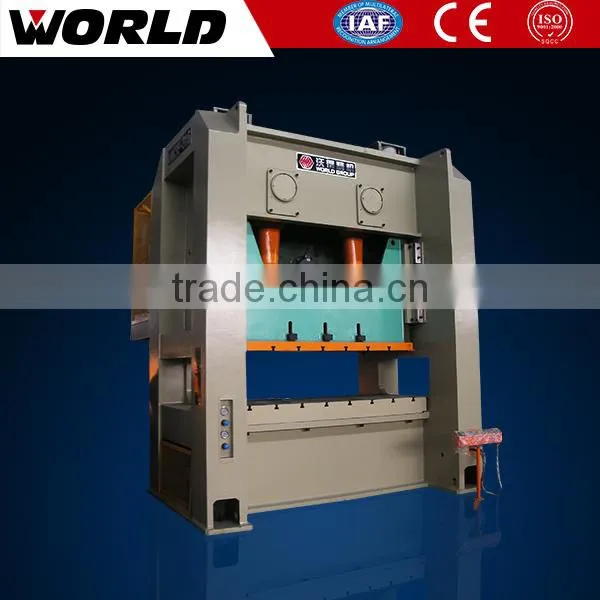

H Frame Automatic metal punching Power Press Machine 400 ton JW36-400
| 1.Steel welded body with high rigidity H Frame Automatic metal punching Power Press Machine 400 ton JW36-400 |
| 2. High torque low noise wet clutch H Frame Automatic metal punching Power Press Machine 400 ton JW36-400 |
| 3. Double crankshafts Double crankshaft pitmen totally eliminate side forces by reverse rotation. The bigger table and slide area is better for big sheet metal punching or bending etc. |
| 4. High precision slide with hydraulic overload pump The eight faces guide rails provide higher accuracy and stability. The hydraulic overload pump can protect the press and the die if overload. You can reset the overload pump by the touch screen easily. A thin brake motor is equipped on the slide to adjust the slide easily. |
| 5. Easy and safe control The control panel includes double hand buttons and emergency stop button. And foot pedal control switch is optional. The touch screen includes the counter, crankshaft angle displayer, control switches and alarm lights. You can set the press with the touch screen and any defaults of the press can be checked with it. Hydraulic overload protected pump is used to protect the press and the die if the machine is overloaded. You can reset the overload with the switch on the touch screen easily. |
| 6. Separate electric box H Frame Automatic metal punching Power Press Machine 400 ton JW36-400 |

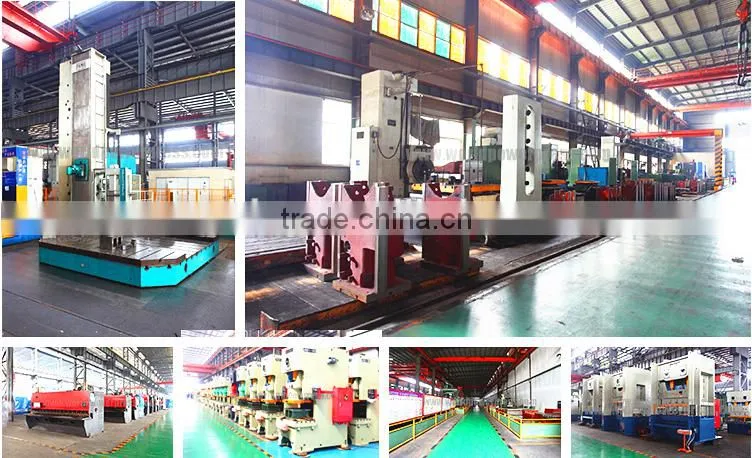

| 7. High precision processing equipment H Frame Automatic metal punching Power Press Machine 400 ton JW36-400 |
H Frame Automatic metal punching Power Press Machine 400 ton JW36-400
Specifications of mechanical H Frame Automatic metal stamping Power Press Machine 400 ton JW36-400
| ITEM | UNIT | JW36-250 | JW36-315 | JW36-400 | |
| Nominal Capacity | KN | 2500 | 3150 | 4000 | |
| Slide Stroke Length | mm | 280 | 300 | 300 | |
| Slide Strokes | Fixed | Times/min | 35 | 35 | 25 |
| Variable(optional) | Times/min | 25-35 | 25-35 | 20-25 | |
| Max.Die Set Height | mm | 550 | 550 | 600 | |
| Die Set Height Adjustment | mm | 120 | 120 | 130 | |
| Side Hole Size | Forward-Rear | mm | 1000 | 1020 | 1200 |
| Height | mm | 460 | 460 | 550 | |
| Distance Between Columns | mm | 2570 | 2680 | 2910 | |
| Bolster Size | Forward-Rear | mm | 1000 | 1100 | 1200 |
| Left-Right | mm | 2500 | 2600 | 2800 | |
| Thickness | mm | 180 | 190 | 200 | |
| Slide Bottom Size | Forward-Rear | mm | 900 | 1000 | 1100 |
| Left-Right | mm | 2200 | 2300 | 2500 | |
| Bolster Surface Height | mm | 1100 | 1150 | 1200 | |
| Overall Dimensions | Forward-Rear | mm | 2920 | 3020 | 3550 |
| Left-Right | mm | 3550 | 3650 | 3900 | |
| Height | mm | 4260 | 4400 | 4500 | |
| Motor Power | KW | 30 | 37 | 45 | |
| Weight(approximate) | kg | 42000 | 45000 | 56000 | |
H Frame Automatic metal punching Power Press Machine 400 ton JW36-400
H Frame Automatic metal punching Power Press Machine 400 ton JW36-400
H Frame Automatic metal punching Power Press Machine 400 ton JW36-400
For working vedios and more information, please contact:
