125tons PLC Controller Punching Press Machine and Power Press for Sale
US$ 20,000 - 30,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
125tons High Speed Mechanical Power Press Machine With Wet Type CluthUS$ 20,000 - 30,000MOQ: 1 Piece -
200ton JW36-200 Chinese Pneumatic Double Crank Mechanical Power Press Machines for SaleUS$ 4,000 - 40,000MOQ: 1 Piece
-
250 Ton H Frame Double Crank Mechanical Power Press Machine Jw36-250US$ 4,000 - 40,000MOQ: 1 Piece
-
500ton Pneumatic Double Crank Mechanical Power Press Machine for Sale JW36US$ 20,000 - 120,000MOQ: 1 Piece
-
200ton Double Crank Sheet Mechanical Metal Stamping Press Machine JW36-200US$ 10,000 - 70,000MOQ: 1 Piece
Condition
New
CNC or Not
Normal
Power Source
Mechanical
Place of Origin
Jiangsu, China
Brand Name
WORLD
Model Number
JH21-125
Voltage
380V
Power(W)
11kw
Weight
9550kg
Dimension(L*W*H)
2040x1320x3035mm
Certification
CE, ISO
Warranty
12months
After-sales Service Provided
Overseas service center available
125tons PLC controller punching press machine and power press for sale
Features:
1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;
2.Vertical located crankshaft, compact structure;
3.The crankshaft undergoes grinding treatment after high frequency quenching;
4.Lengthened rectangular guideway with a surface of bronze plate;
5.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
6.PLC control and imported safety dual valve;
7.Wet clutch and hydraulic overload protector.
125tons PLC controller punching press machine and power press for sale

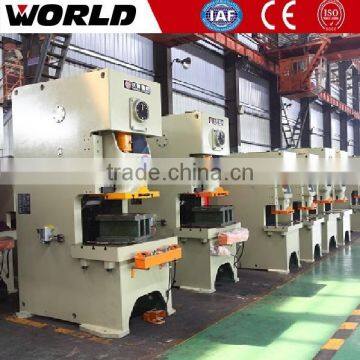

Photos of 125tons PLC controller punching press machine and power press for sale
Specifications of 125tons PLC controller punching press machine and power press for sale
| ITEM | UNIT | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-125 | JH21-160 | JH21-200 | JH21-250 | JH21-315 | JH21-400 | |
| Nomonal Capacity | KN | 250 | 450 | 600 | 800 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 | |
| Slide Stroke | mm | 80 | 120 | 140 | 160 | 180 | 200 | 250 | 250 | 250 | 270 | |
| Slide Strokes | Times/min | 60-100 | 50-80 | 45-70 | 40-60 | 35-50 | 30-45 | 25-45 | 20-30 | 20-30 | 20-30 | |
| Max. Die Height | mm | 250 | 270 | 300 | 320 | 350 | 400 | 450 | 500 | 500 | 550 | |
| Die Height Adjustment | mm | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 120 | 120 | |
| Throat Depth | mm | 210 | 225 | 270 | 310 | 350 | 400 | 430 | 450 | 450 | 490 | |
| Distance Between Uprights | mm | 450 | 515 | 560 | 610 | 670 | 736 | 910 | 980 | 980 | 1050 | |
| Slide Bottom Size | Forward - Rear | mm | 250 | 340 | 400 | 460 | 520 | 580 | 650 | 700 | 700 | 750 |
| Left - Right | mm | 360 | 410 | 480 | 540 | 620 | 700 | 880 | 950 | 950 | 1020 | |
| Shank Hole Size | Diameter | mm | 40 | 50 | 50 | 50 | 70 | 70 | 70 | 70 | 70 | 70 |
| Depth | mm | 65 | 60 | 70 | 65 | 90 | 100 | 100 | 130 | 130 | 130 | |
| Bolster Size | Forward - Rear | mm | 400 | 440 | 520 | 600 | 680 | 760 | 840 | 880 | 880 | 950 |
| Left - Right | mm | 720 | 825 | 930 | 950 | 1100 | 1170 | 1390 | 1500 | 1540 | 1700 | |
| Thickness | mm | 80 | 110 | 130 | 140 | 155 | 165 | 180 | 190 | 190 | 210 | |
| Bed Opening Hole Diameter | mm | 150 | 150 | 150 | 150 | 160 | 180 | 200 | 200 | 200 | 200 | |
| Overall Dimensions | Forward -Rear | mm | 1496 | 1585 | 1540 | 1765 | 2040 | 2305 | 2600 | 2660 | 2720 | 2850 |
| Left - Right | mm | 945 | 1075 | 1200 | 1200 | 1320 | 1420 | 1540 | 1640 | 1680 | 1750 | |
| Height | mm | 2120 | 2391 | 2570 | 2725 | 3035 | 3215 | 3800 | 3865 | 3865 | 4150 | |
| Motor Power | KW | 3 | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | |
| Weight(approximate) | kg | 2450 | 3550 | 5150 | 6450 | 9550 | 13600 | 19200 | 23200 | 26600 | 31600 | |
Details of 125tons PLC controller punching press machine and power press for sale
