Tir-three wheel static road roller made in China

Specifications

1.CE certificate
2.One year warranty
3.Spare part services
4.High dependable
5.High effencicy

Tir-three wheel static roller made in China







1----Main Features of QLNJ2125

1.Steady quality,serial products coverwide applications.

2.Electric power sprinkler device.

3.Low gravity center,good stability.

4.Spacious and comfortable cab,with broad visual view.

5.Central articulated hydraulic steering for flexible turning and concenient operation.



2----Standard  configuration of QLNJ2125

Model : QLNJ2125

Engine : YC6108G

1.Static grinding,articulated short the body structure,cab mid-engine,working in a great view;
2.Hydraulic steering,low gravity toward the steering wheel deft and flexible;
3.Bridge type driving,hydraulic booster embedded disk brake,brake good,the two sets of brake system, safe and reliable;
4.Cab adopt glass that  against ultraviolet ray;
5.Equipped with large capacity and dynamic sprinkler system

3----Main Technical Parameters of QLNJ2125



MODEL		QLNJ2125
Operating mass			Overall length	mm	5700
Without ballast	kg	21000	Overall width	mm	2300
With ballast		25000	Overall height	mm	3000
Front linear load			Front wheel size	mm
Without ballast	N/cm	575	Width		1680
With ballast		650	Diameter		1500
Rear linear load		1200	Rear wheel size	mm
Without ballast	N/cm	1358	Width		530
With ballast			Diameter		1700
Travel speed			Wheelbase	mm	2945
1st gear	Km/h	2.0	Ground clearance	mm	370
2nd gear		4.0	Diesel model		YC6B120
3rd gear		9.6	Diesel power	Kw	88
Grade ability	%	30	Diesel speed	r/min	2000
Turning radius	mm		Fuel tank capacity	L	200
Inside		5180	Elecrical voltage	V	24
Outside		7500	Hydraulic tank capacity	L	40
Steering angle		±35





4----Application of QLNJ2125

LTJ2125 The machines are heavy-duty static three wheel road rollers.With their dead weight, they compact cohesive and non-cohesive materials, such as gravel, sand stone mixture, sandy soil, and asphalt concrete.They are universal compaction equipments for highway, municipal road, parking area and industry ground etc, medium and large-scale construction projects.

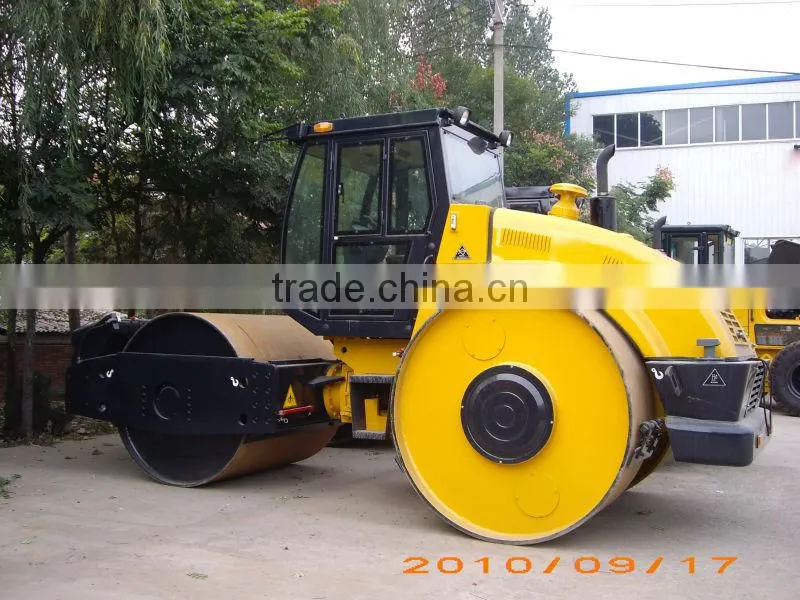

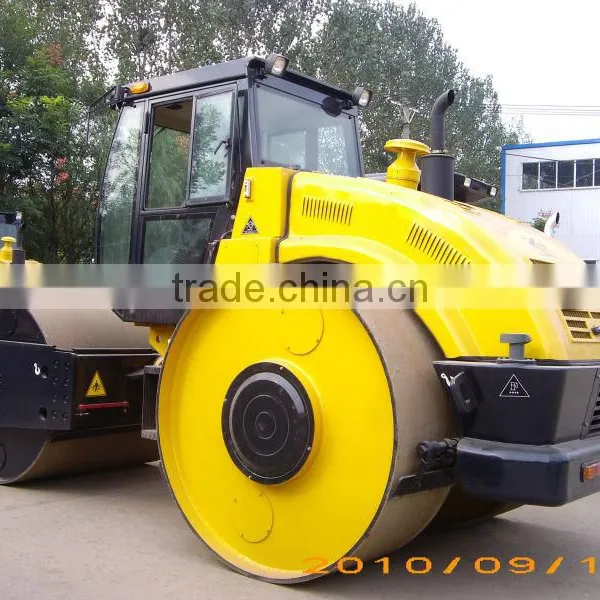

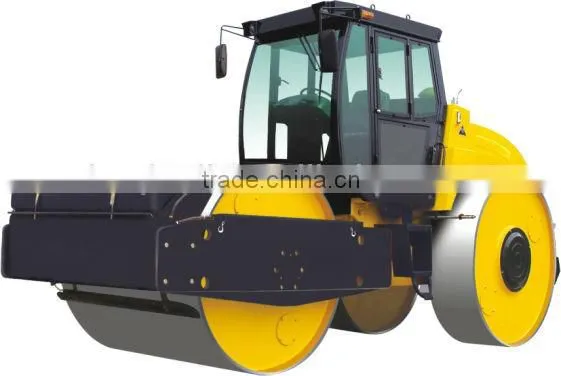

5----Pictures of road roller
