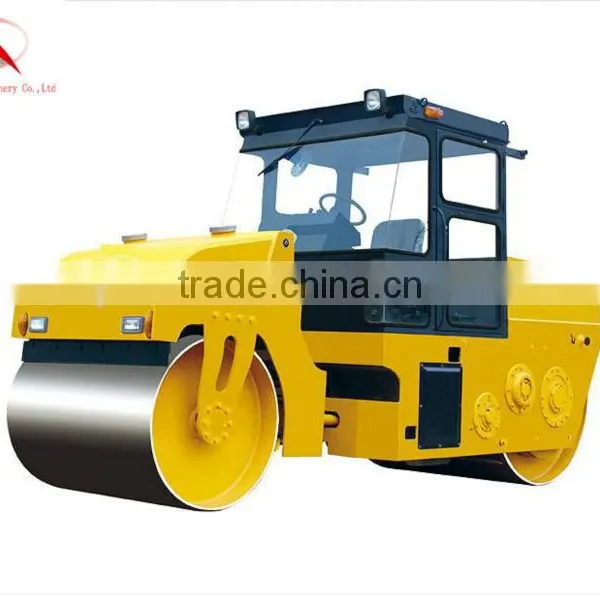

Widely used double drum static roller 2YJ6*8 with comfortable cab easy to operate
- 6000 Set / Sets per Month
- Qingdao
- T/T
- China hydraulic vibrating road roller compactor machine
- Volvo Vibration Roller DD146HF
- Many small rollers sell cheap and durable second-hand vibrating rollers
- Cheap and fine used XCMG Dynapac, Ingeresoll, BOMAG, HAMM rollers for sale
- Used Shantui, Dynapac, Ingeresoll, HAMM, KOTAI, BOMAG rollers with good performance for sale
- The used XCMG, SANY, Changlin, Shantui, rollers with excellent control performance is for sale
Product Details
Condition: | New | Type: | Double Drum Roller | Static Linear Pressure: | Front:182/242 N/cm Rear:257/343 N/cm |
Travel Speed: | 2.62-10.3 km/h | Grade Ability: | 20% | Place of Origin: | Henan, China |
Brand Name: | QLN | Model Number: | QLN 2YJ6x8 | Power(W): | 42 kw |
Dimension(L*W*H): | 4380X1710X2560 | Weight: | 6000/8000 kg | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Dependable and practical2.Flexible steering
3.With hydraulic articulated steering
4.With Articulated connection
Widely used double drum static roller 2YJ6*8 with comfortable cab easy to operate
1----Standard configuration
1.Mechanical diving,
hydraulic articulated steering;
2.Engine:adopt 498 direct spray engine;

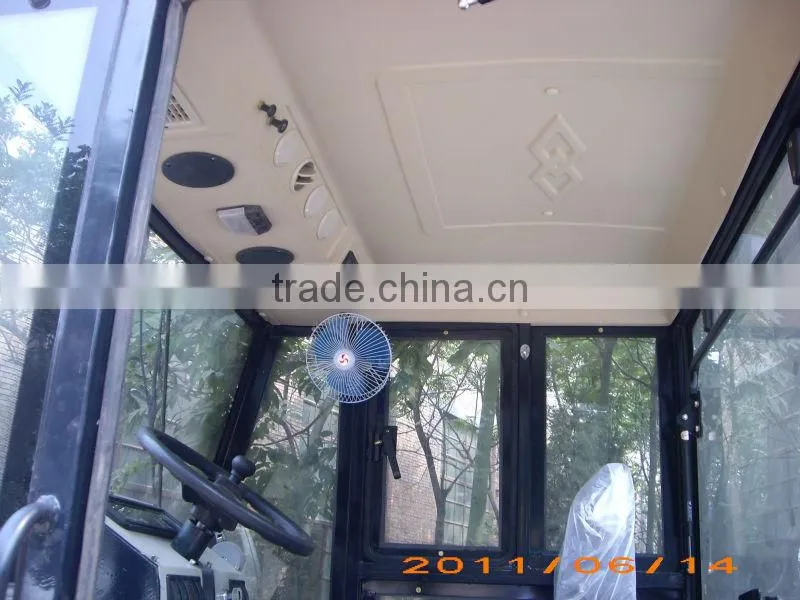

3.With a useful cab.
2----Optional configuration
cab with air conditioning
3----Main Technical Parameters
Model | 2YJ6x8 | |
Operating mass | kg | 6000/8000 |
Front linear load | N/cm | 182/242 |
Rear linear load | N/cm | 257/343 |
1 gear | 2.62 | |
2 gear | 5.18 | |
3 gear | 10.3 | |
Grade ability | % | 20 |
Turning speed | mm | 5050/6450 |
Overall Dimension | mm | 4380X1710X2560 |
Wheelbase | mm | 3220 |
Ground clearance | mm | 240 |
Diesel power | kw | 42 |
Diameter X travel | 98x105 | |
Rated speed | r/min | 2200 |
Electrical system | V | 12 |
Fuel consumption | g/kw.h | 245 |
Diesel model | 498BG | |
Hydraulic oil capacity | L | 50 |
Water tank capacity | L | 435 |
Water radiator capacity | L | 15 |
Hydraulic radiator capacity | L | 5 |
4----Main Features
1.Articulated connection and flexible steering,
It adopted the hydraulic braking,safe and dependable.
2.The nose of the roller is narrow with an excellent turning sight.
3.A sprinkling set is equipped for evenly sprinkling water on the surfaces of both front and rear drums.
5----Usage
2YJ6×8 double drum static roller is mostly suitable for
flattening and compacting surfaces of the roads including hornblende, broken stone,
asphalt and concrete ones. It can be also used for compacting bases of roads,
articulated connection and flexible steering.
It adopted the hydraulic braking, safe and dependable.
The nose of the roller is narrow with an excellent turning sight.

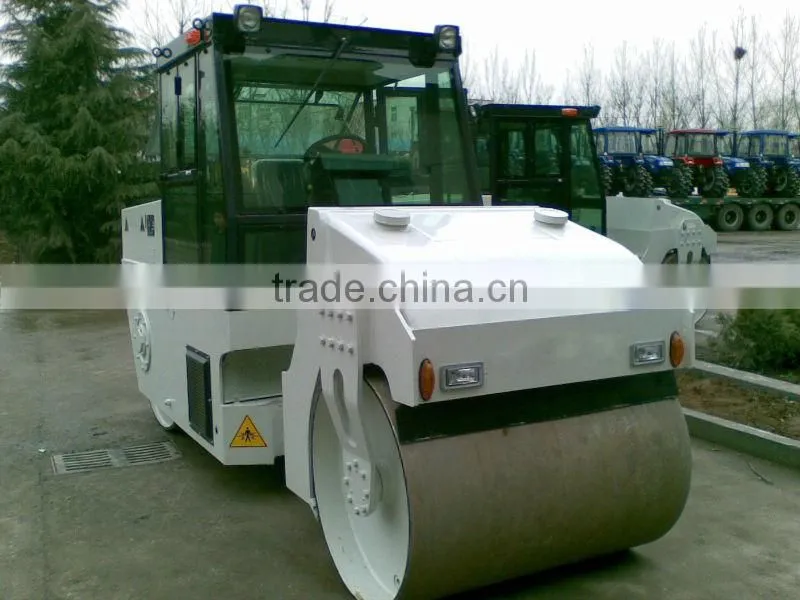

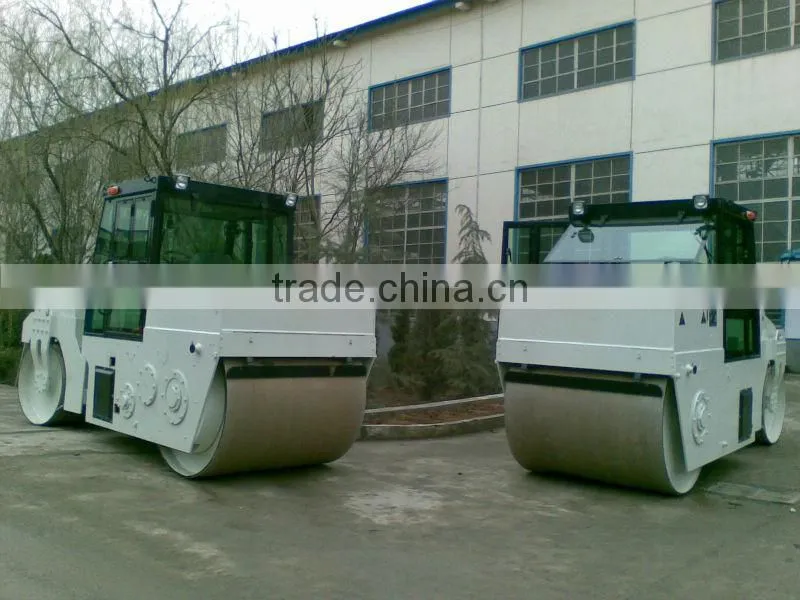

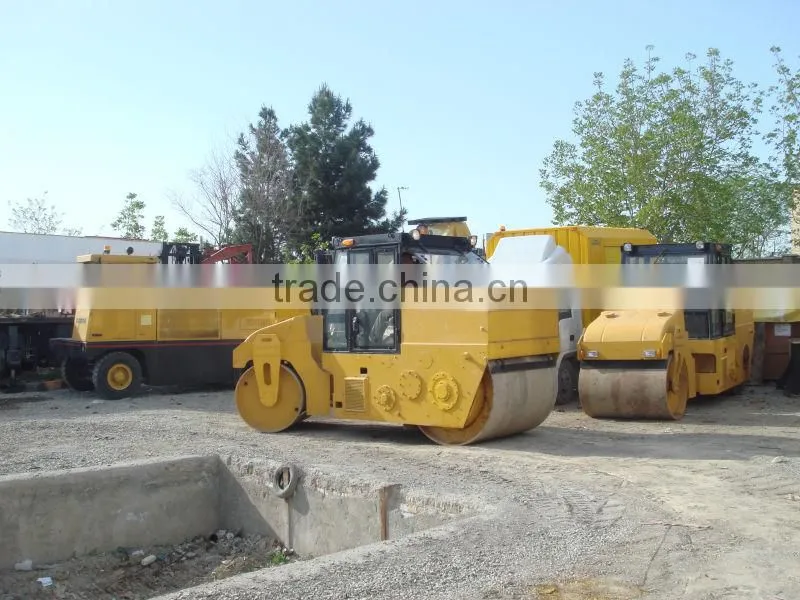

6----Pictures of 2YJ6x8

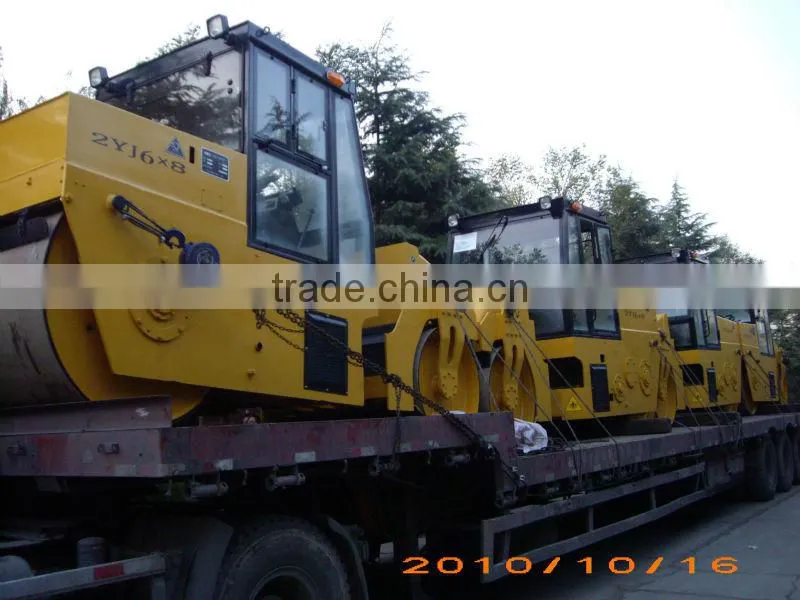

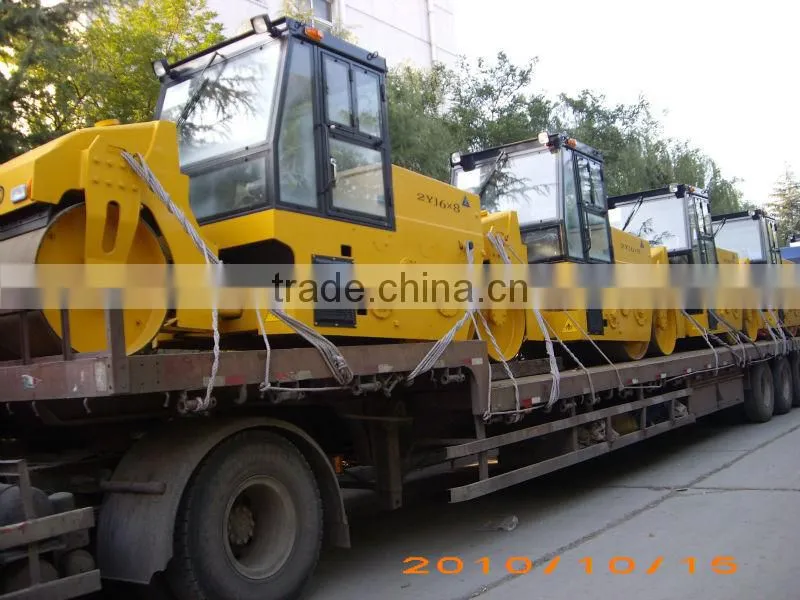

Road roller waiting for traspot

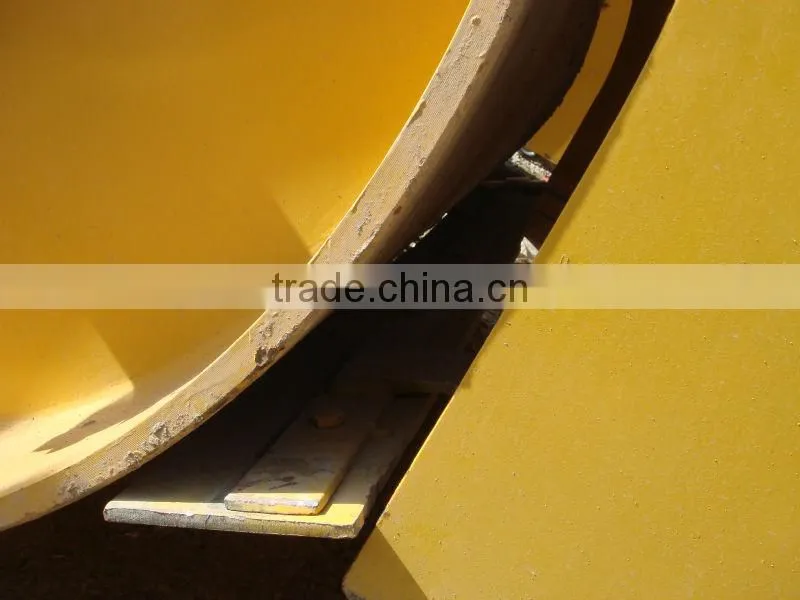

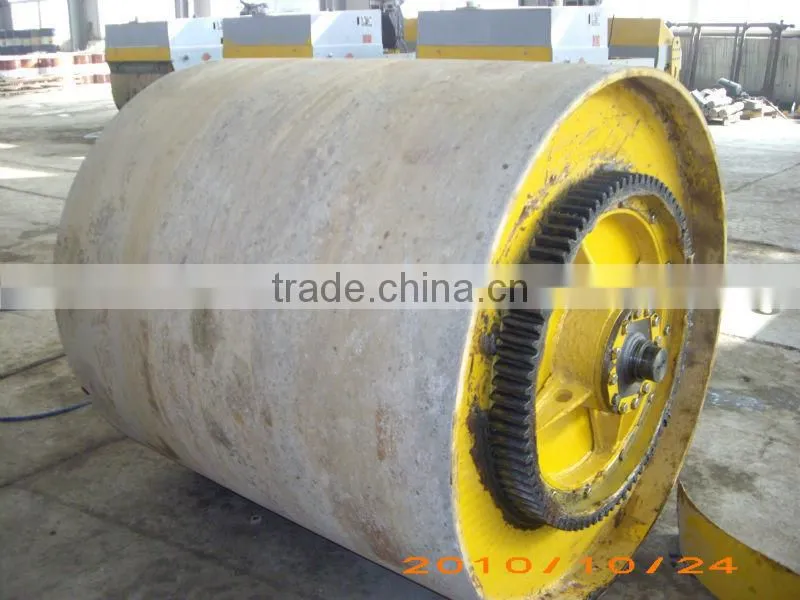

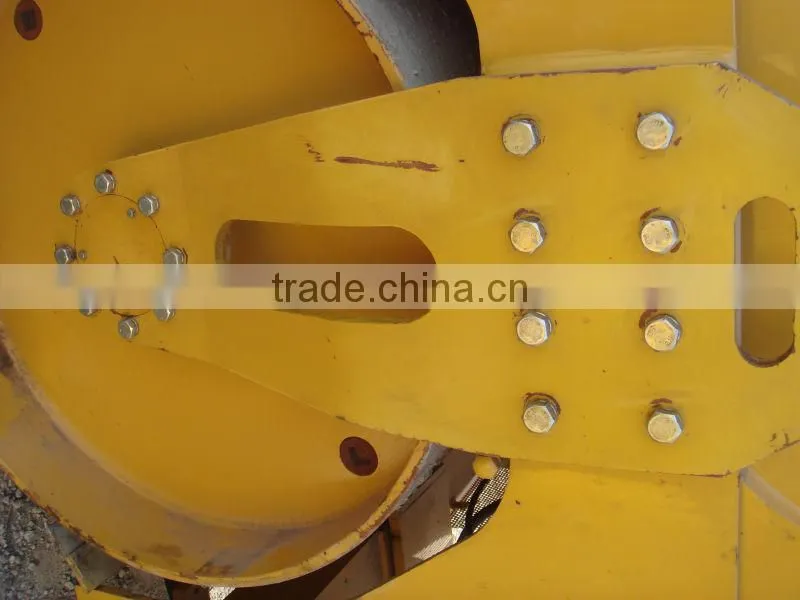

Details
NOTE:
We offer low price products with highest performance cost ratio.
If you are interested in our road roller, please feel free to contact us.
Best service is our promise.
Electronic catalog will be sent to you upon receipt of your inquiries.
Contact : Jenny lu
Email: jennyhua1990@hotmail
Tele: 0086-0371-15237107450
Website:
