Specifications
1.Hydraulic front wheel vibrate2.With articulated steering
3.Compact integral structure
4.Easy to operate
5.CE certificate
Small working mass tire combined vibratory roller QLNC3PB widely used in diffrent environment in low price for sale
1. Basic configuration of QLNC3PB
1.Mechanical rear wheel drive, Hydraulic front wheel vibrate,articulated steering;
2.Adopt hydraulic help in the brake shoes;
3.Engine: adopt changchai 385 engine;
4.Have sunshade shelter.
2. Features of QLNC3PB
1.Mechanical movement, hydraulic vibration, hydraulic rotation, with reliable performance and optimum function/price ration
2.Both front and rear wheels have scraping and water spray unit.
3.Adope N385Q series diesel engine,very convenient for use and maintenance.
4.Compact integral structure,small volume,capable of used for compaction on narrow site.
3. Main Technical Parameters of QLNC3PB
| MODEL | QLNC3PB | |
| Operating mass | kg | 3000 |
| Static linear load | N/cm | 128/174 |
| Vibration frequency | Hz | 50 |
| Centrifugal force | kN | 30 |
| Travel speed | km/h | 5.6 |
| Grade ability | % | 30 |
| Turning speed | mm | 5000 |
| Overall dimension | mm | 2900x1314x2600 |
| Drum width | mm | 1000 |
| Wheelbase | mm | 2100 |
| Diesel power | kw | 21 |
| Diesel model | ZN385Q |
4. Usage
LTC series wheeled vibratory roller is applicable for maintenance of municipal roads and highways,
as well as the compaction of the narrow road surfaces such as groove foundation with width above 1.1m,
building construction, pipeline backfill and stadium.
5. Pictures display

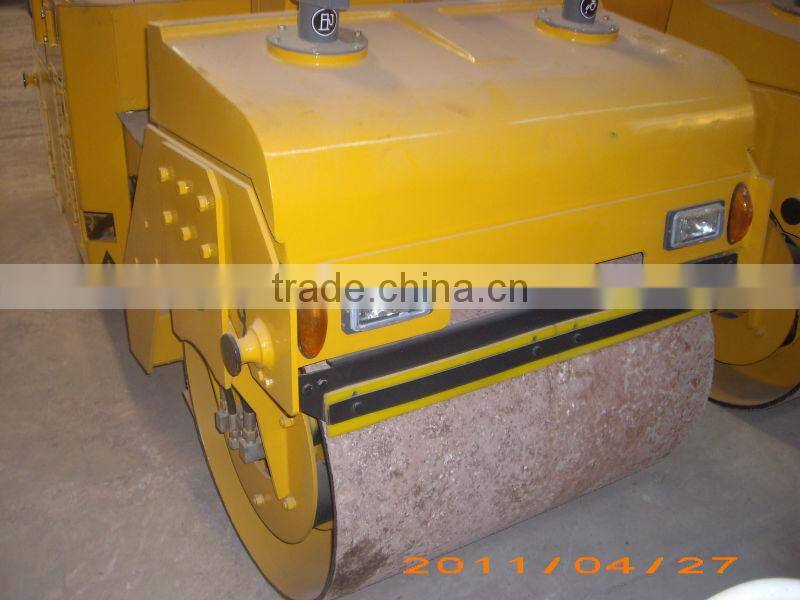

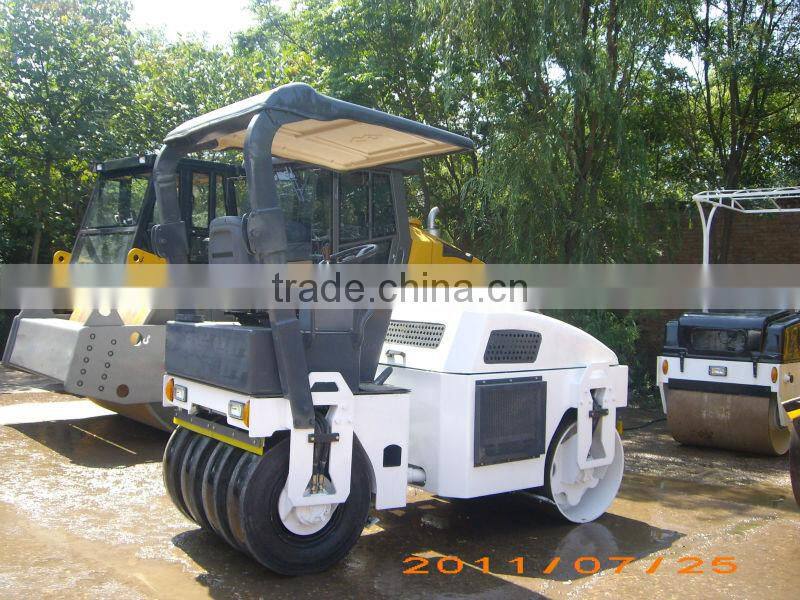

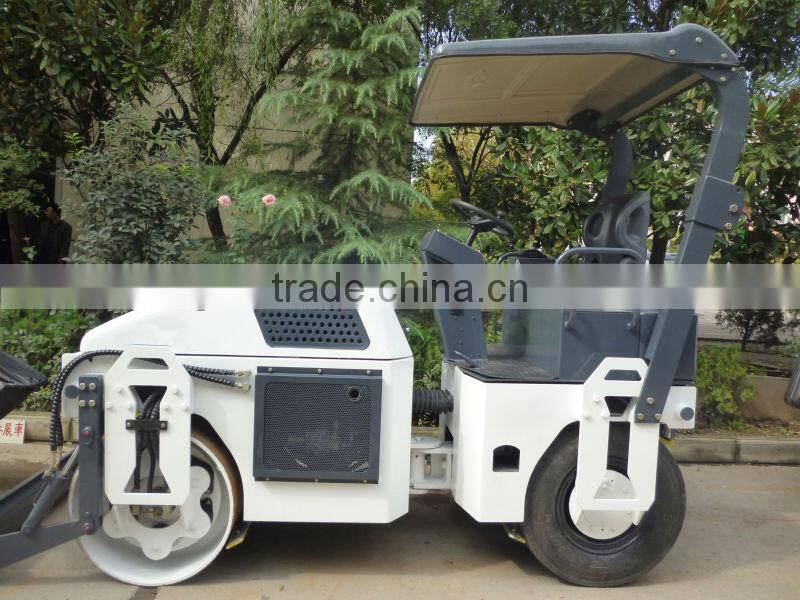

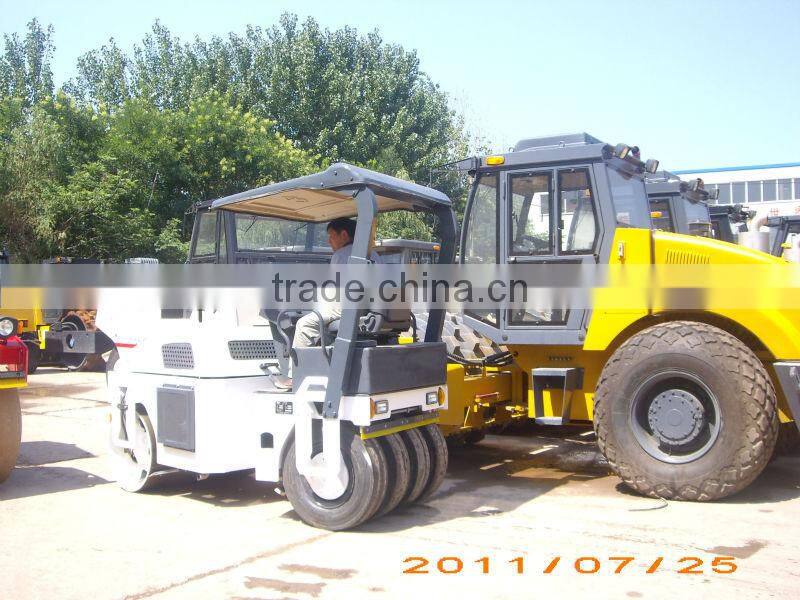

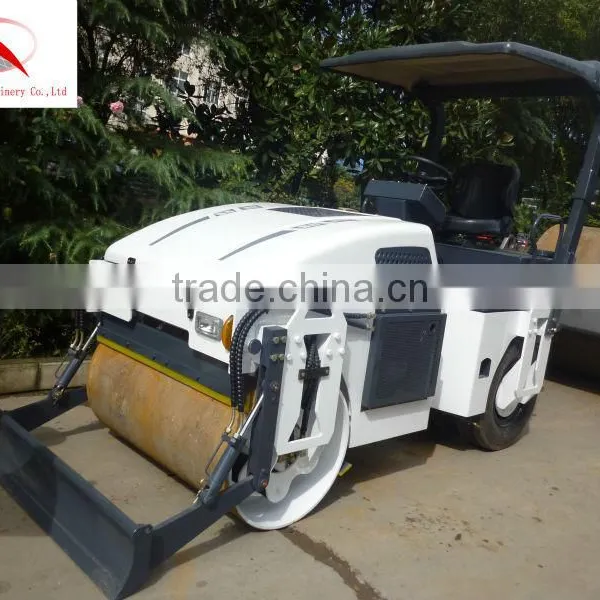

General view
Details
Certificates
If you have any questions, feel free to contact us!
