Specifications
1.High reliability2.Easy to operation
3.One year warranty
4.Flexible sttering
5.High effeciency
Hydraulic vibratory roller with advanced motor for sale
1. Features of QLND216H
1.Power system: cummins B-series extra-pressure diesel engine,huge power man coeffciency ,suitable for the operating conditon above 4000 meters altitude.
2.Total hydraulic pressure,total drive, frequency and radiation conversion, articulated direction change, two stepless speed changes, advanced technology, blocking the oil supply to brake the vehicle,safe and reliable.
3.Streamline outline,circular windshield glass and curvy hood form a unique style.
4.Hydraulic pump and vibrating motors are of the 90 series made by the american manufacturer SAUER.
5.Equipped with padfoot or removal padfoot as option
2. Standard configuration of QLND216H
Engine : 6BT5.9
Cab : Air conditioner cab
Travelling and vibrating system : Adopt the products of SAUER or REXROT
3. Optional configuration of QLND216H
1. Degree of compaction random detector
2. padfoot or removal padfoot
4. Main Technical Parameters of QLND216H
| Model | QLND216H | |
| Operating mass | kg | 16000 |
| Static linear load | N/cm | 475 |
| vibration amplitude | mm | 2.0/1.0 |
| Vibration frequency | Hz | 28/35 |
| Centrifugal force | KN | 320/180 |
| Travel speed | km/h | 12 |
| Grade ability | % | 35 |
| Turning radius | mm | 7000 |
| Overall dimension | mm | 5860x2278x3050 |
| Vibration round with | mm | 2100 |
| Wheelbase | mm | 3300 |
| Ground clearance | mm | 472 |
| Diesel power | KW | 110 |
| Diesel model | 6BT5.9 |
5. Application of QLND216H
QLND216H
Hydraulic vibratory roller is manufactured according to the international advanced technology
and by use of imported components from abroad.
The machine is super heavy-scale mechanized construction.
This machine is suitable for non-cohesive materials, such as graves, macadam,
macadam-aggregate mixtures and sandy soil etc.
Also it can be a good effect compaction in cohesive material.
Therefore the machine an ideal equipment for expressway,mining road, embankment, seaport and industrial sites.
6. Pictures of QLND216H

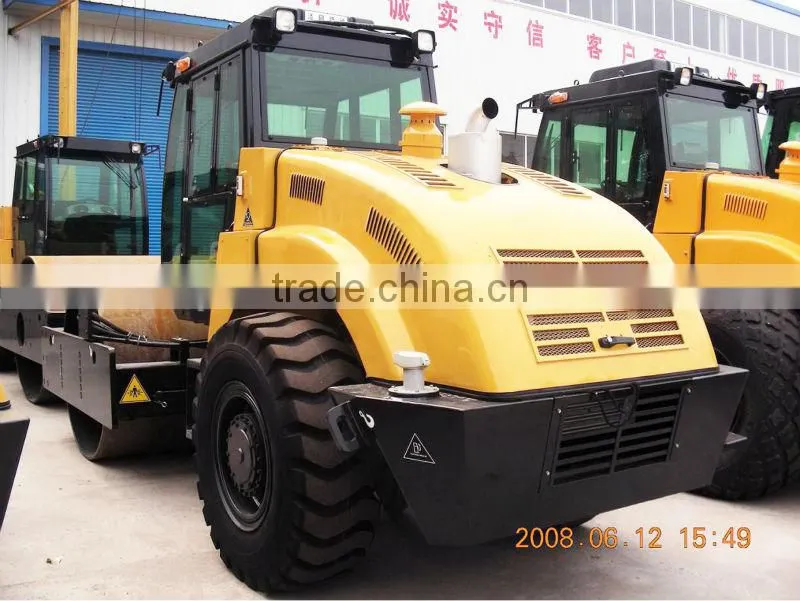

with beautiful looking

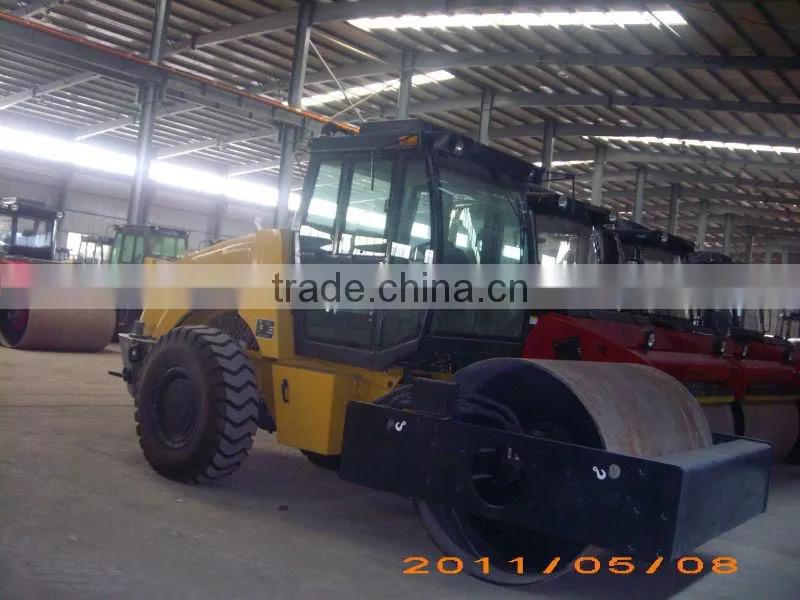

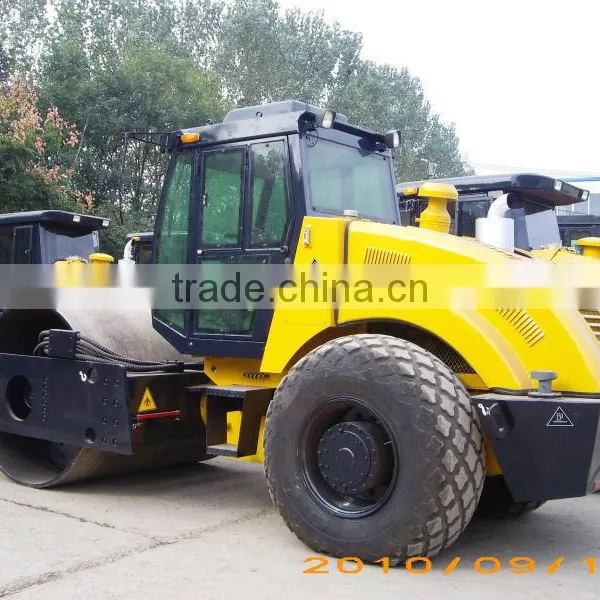

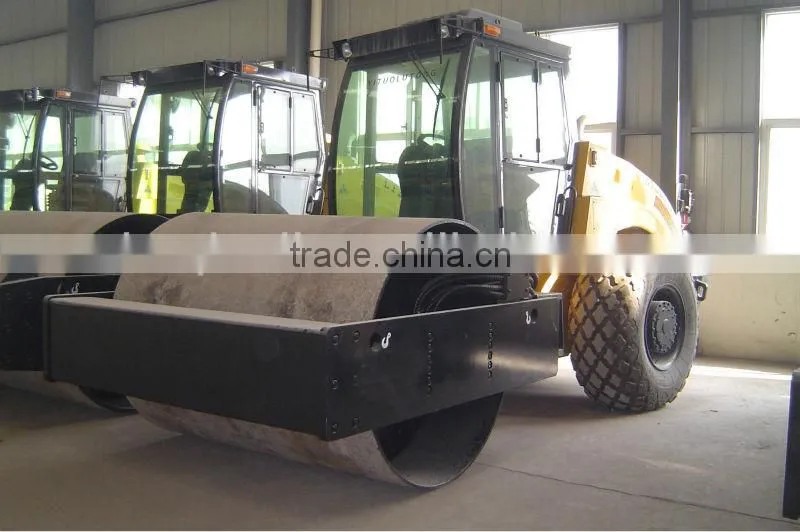

general view

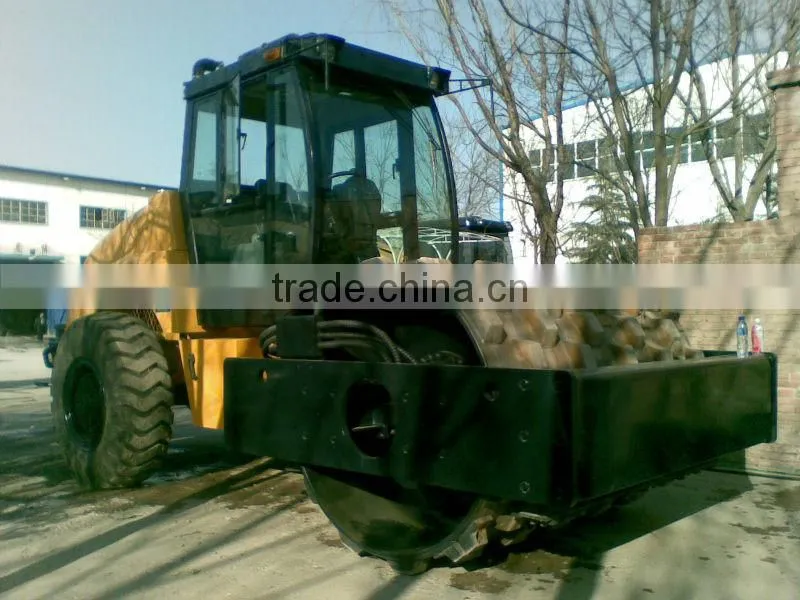

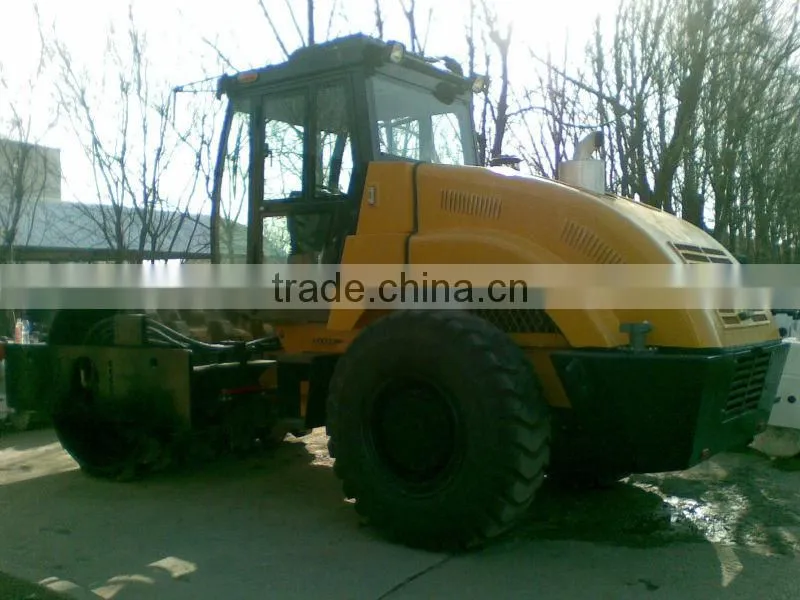

QLND216H Road roller with removal padfoot ---convenient and practical
Details of QLND216H

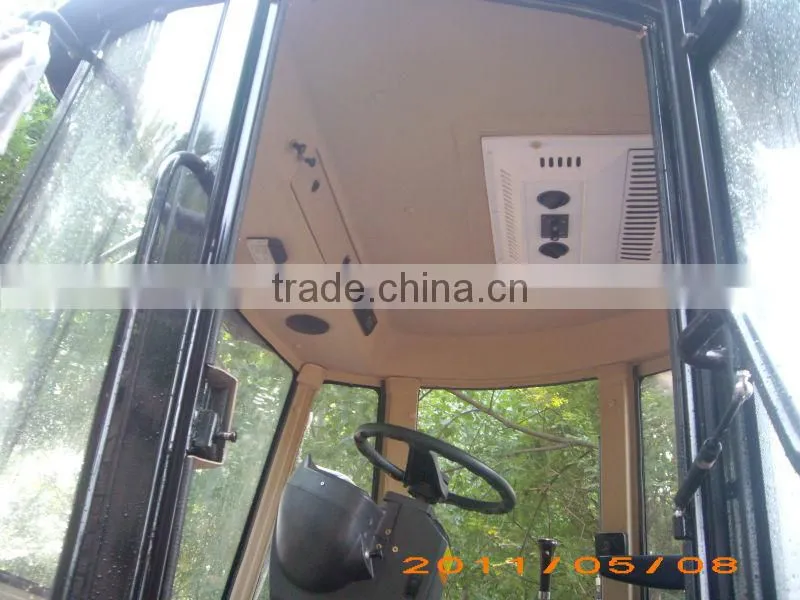

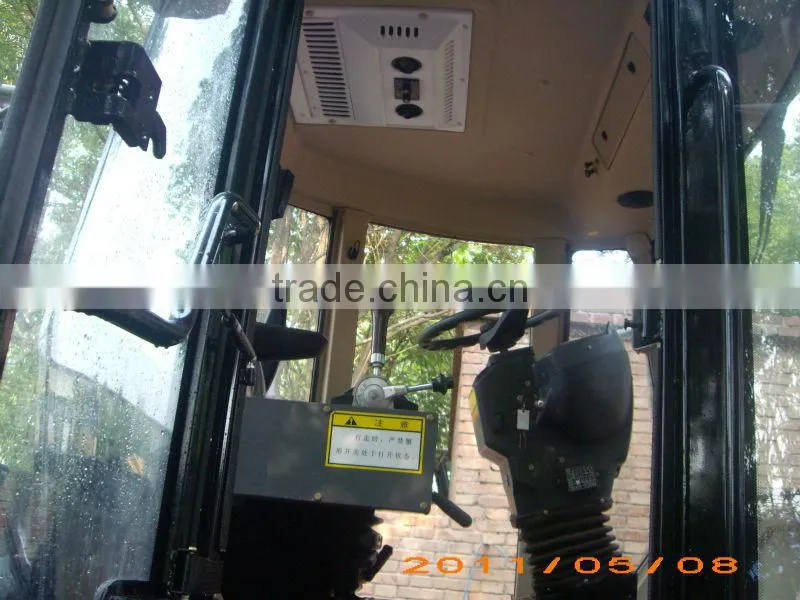

Cab with air conditioning
Hydraulic steering --easy to operate
Other choices
We offer low price products with highest performance cost ratio.
Contact : Jenny lu
Skype: jenny.lv7
Tele: 0086-0371-55051327
