Specifications
1.Cummins 6BT5.9 engine2.Comfortable cabin with air conditioning
3.Hydraulic pump and vibrating motors
4.Streaming outline
Widely used hydraulic vibratory road roller QLN S214H in hot sale
1---Standard configuration of QLNS214H
Model: QLNS214H
Engine: Cummins 6BT5.9
Travelling system: adopt the products of SAUER or REXROTH
Vibrating system: adopt joint venture brand's gear pump,motor
Cab: With protective glass and air conditioning cab with protective tipping gear.
2---Optional configuration of QLNS214H
Engine: YC6108G
Others:1. Puddlability random surveymeter
2. Removable convex block
3---Technical Parameters of QLNS214H
MODEL | QLNS214H | |
Operating mass | kg | 14000 |
Static linear load | N/cm | 342 |
Vibration amplitude | mm | 1.8/0.9 |
Vibration frequency | Hz | 29/35 |
Centrifugal force | kN | 290/160 |
Travel speed | km/h | 12 |
Grade ability | % | 30 |
Turning radius | mm | 6500 |
Overall dimension | mm | 5860×2280×3020 |
Vibration round width | mm | 2100 |
Wheelbase | mm | 3160 |
Ground clearance | mm | 472 |
Diesel power | kw | 110 |
Diesel model | 6BT5.9 |
4.Main Features of QLNS214H
1. Motor: Cummins 6BTA5.9 extra-pressure diesel engine, have power man coffeciency, which comply with the operating condition
2. Total hydraulic pressure, single drive, frequency and radiation conversion, articulated direction change, with stepless speed changes,
3. Streaming outline, circular windshield glass and curvy hood form a unique style.
4. Hydraulic pump and vibrating motors are of the 90 series made by the American manufacturer SAUER
5.Usage of QLNS214H
Hydraulic vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad.
The machine is super heavy-scale mechanized construction.This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can be a good effect compaction in cohesive material, Therefore the machine an ideal equipment for expressway,mining road, embankment, seaport and industrial sites.
6.Pictures of QLNS214H

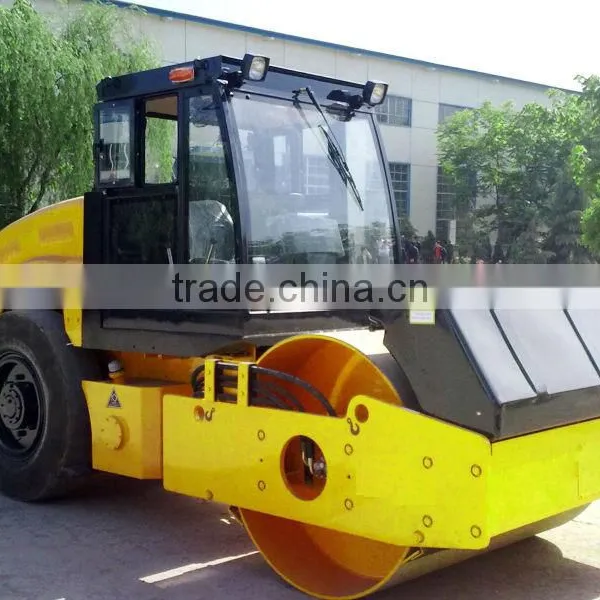

general view
Details
Advanced engine and motor
Practical and removable convex block
Comfortable cab with air conditioning
Equipped with padfoot---convenient and safe
Gear shift---easy to operate
our certificates
