Specifications
Small farming tractor1. Strong power and low fuel consumption.
2. Good quality with competitive price.
3. ISO9001:2008
QLN304 tractor:
Famous engine and high quality!!
INTRODUCTION:
QLN tractor is in top position among the same industry in China and its matched power is famous diesel engine.
It is not only suitable for various field works, transportation and fixed tasks, but also for muddy fieldwork and engineering tasks.
The tractor has been granted the national patent, independently developed by the company through learning advanced technology home and abroad as well as tractor its own development experience.
With great adaptability, high security, top performance and high efficiency, this machine won a leading position in both domestic and abroad corn harvest machinery field and could satisfy various requirements of different users.
Small farming tractor
PRODUCTS:
Small farming tractor
1. Strong power and low fuel consumption.
2. Good quality with competitive price.
3. ISO9001:2008 & CCC

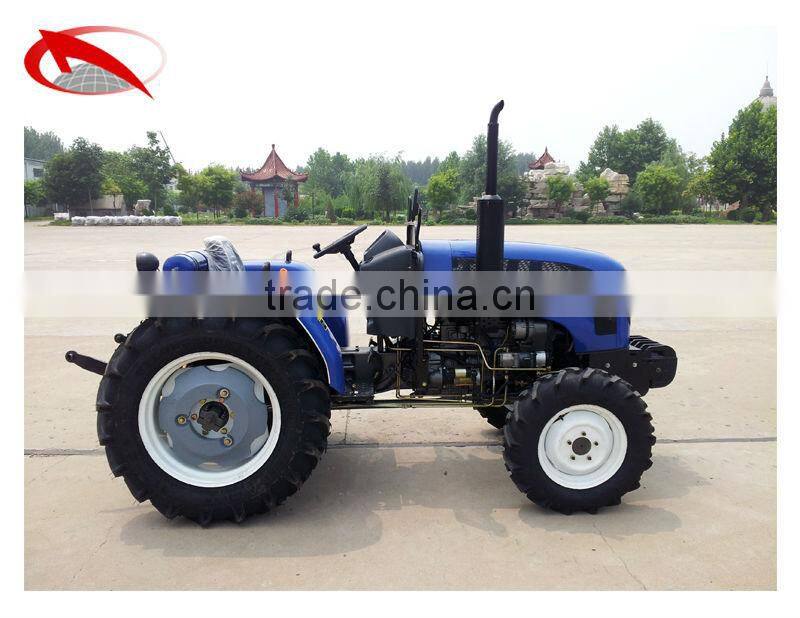

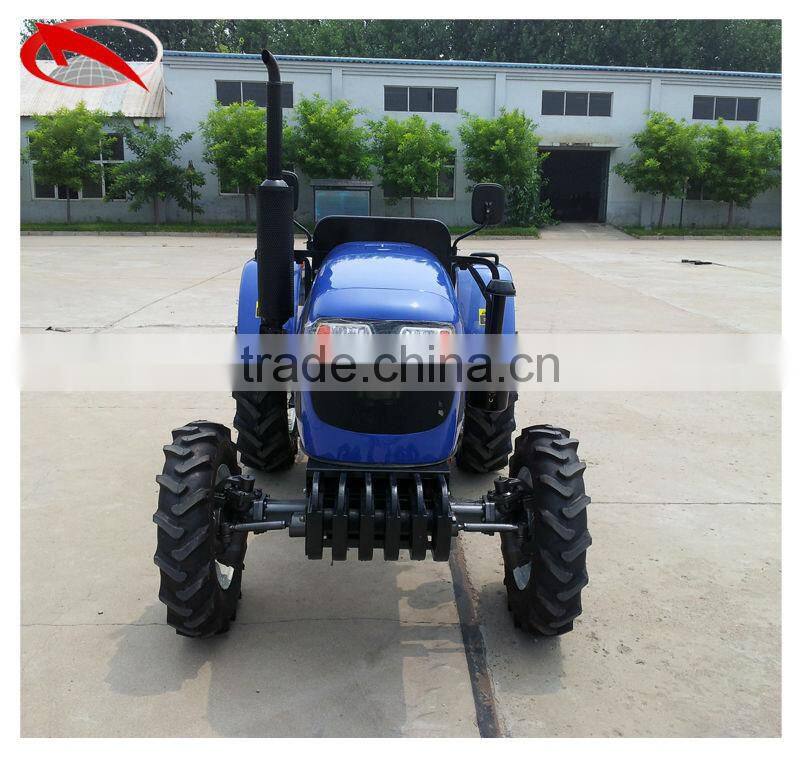

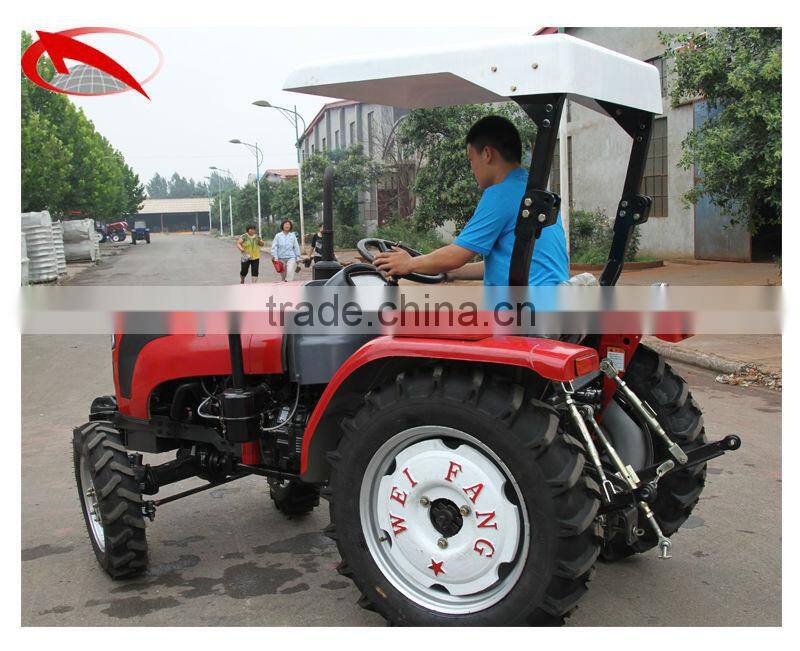

QLN 25-35HP Small Tractor Show
Small farming tractor
Specifications |
|||||
Basic configuration | |||||
Model |
QLN-300/304 |
||||
Dimensions |
Length×Width×Height(mm) |
3200×1500×1880 |
|||
Wheel Tread(mm) |
Front Wheel(mm) |
1065 |
|||
Rear Wheel(mm) |
1250-1200 |
||||
Min.Ground Clearance(mm) |
380(4WD) 330(2WD) |
||||
Dry Mass |
Complete tractor weight(KG) |
1240(4WD) 1200(2WD) |
|||
Engine |
Trade Mark or Brand |
LAIDONG |
|||
Engine Model |
Vertical Water Cooled 3-stroke |
||||
Directly Injection | |||||
Number of Cylinder |
3 |
||||
Cooling System Type |
Water Cooled |
||||
Rated Power(kw) |
22.1KW |
||||
Fuel Tank |
Volume(L) |
41.3 |
|||
Transmission System |
Clutch |
Single,Dry,Single Stage Type |
|||
Gear Box |
F8+R2 |
||||
Differential |
Closed 4-planetary Gears |
||||
Differential Lock |
Mechanical Sliding Sleeve |
||||
Braking System |
Mechanical,dry type |
||||
Running System |
Tyre Model |
F/R(2WD) |
5.5—16/9.5—24 |
||
F/R(4WD) |
6.0—16/9.5—24 |
||||
Steering System |
Mechanical for 2wd tractor and Hydraulic steering for 4wd tractor |
||||
Working Device |
Hydraulic System Type |
Partial seperated lifter |
|||
Linkage Type |
I Rear Mount 3-point Linkage |
||||
PTO(Standard) |
Φ35×6 |
||||
PTO Speed(r/min) |
720 |
||||
Drawbar Type |
Fixed Drawbar |
||||
Optional configuration | |||||
Cab with Heater |
Cab with AC |
ROPS |
Sunvisor |
||
Adjustable Comfort Seat |
Multiple Unit Valve |
Hydraulic steering for 2WD |
Dual-stage clutch |
||
Double PTO Speed(r/min): 540/720 540/1000 720/1000 | |||||
Bob-weight |
Frontballest |
6×10=60kg 10kg/pcs |
|||
Rearballast |
2×25=50kg 25kg/pcs |
||||
Small farming tractor
OTHER FARM EQUIPMENTS:
Small farming tractor
