LUTONG 80HP 4WD Agricultural Farm Tractor LT804 With A/C

Shanghai Evangel Industrial Co., Ltd. Gold Verified Supplier
5Yrs
LUTONG 80HP 4WD Agricultural Farm Tractor LT804 With A/C thumbnail-1
LUTONG 80HP 4WD Agricultural Farm Tractor LT804 With A/C thumbnail-2
LUTONG 80HP 4WD Agricultural Farm Tractor LT804 With A/C thumbnail-3
LUTONG 80HP 4WD Agricultural Farm Tractor LT804 With A/C photo-1
LUTONG 80HP 4WD Agricultural Farm Tractor LT804 With A/C photo-2
LUTONG 80HP 4WD Agricultural Farm Tractor LT804 With A/C photo-3
US$ 15,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai Qingdao Ningbo Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 59KW
Certificate Other, CE/ISO
Brand Name LUTONG
Model Number LT804
Place of Origin Henan, China
After-sales Service Provided Engineers available to service machinery overseas

LUTONG 80HP 4WD Agricultural Farm Tractor LT804 with A/C

Product Description

Parameters: LUTONG 80HP 4WD Agricultural Farm Tractor LT804 with A/C

Features:

 Adopt YTO engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;

 Operate independently of double-acting clutch, high transmission capacity, effective and reliable, comfortable operation

  Gearbox using 4 × (4+2)  engaging sleeve, shuttle-action gearshift  , there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency;

 Using an independent power output device, smooth transmission, large capacity;

 Using an independent circuit of hydraulic steering control system, manipulating flexible, reliable, and save energy;

 Using static hydraulic disc brakes, a large brake torque, the braking effect is good;

 Using extreme pressure type lifter. Independent oil supply, improve the performance of system, reliable, optional hydraulic output;

  Final drive with planetary gear mechanism, compact structure, large reduction ratio;

  Final drive with planetary gear mechanism, compact structure, large reduction ratio;

  The new streamlined appearance, generous, modern and fashion.



Tractor Model

LT804

Driver Type

4X4

Dimension

Without Cabin: L×W×H(mm)

4396mm*4396mm*2810mm

With Cabin: L×W×H(mm)

4080x2038x2810

Wheel base(mm)

2195

Front wheel tread(mm)

1610

Rear wheel tread(mm)

1620-2020

Mini ground clearance(mm)

379

Mini turning radius

Unilateral brake(m)

4.2±0.3

Not unilateral brake(m)

4.9±0.3

Mini Using Weight(KG)

4090

Numbers of the gear

16F+8R

Speed

Forward(kw/h)

1.58-33.69

Reverse(kw/h)

2.41-34.67

Engine

Model

LR4B5-23

Marked power (KW)

59

Rated revolution (r/min)

2300

Tires type

Front

11.2-24

Rear

16.9-34

Steering

Independent oil circuit, Full hydraulic front wheel steering

Max.lifting capacity( KN )

14.2

PTO

Type

Rear Mounted, Independently,

Speed (r/min)

760/1000

Power(kw)

51.2

Control type of plough depth

 Height adjustment and floating control

Front / rear Ballast (kg)

270/470

Notice: All above parameters are subject to change without notice because of rapid development of products.

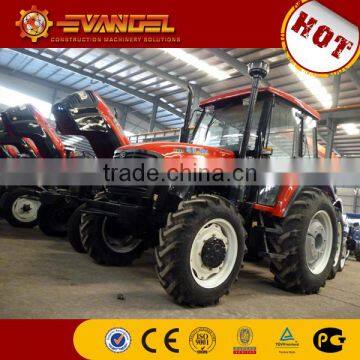

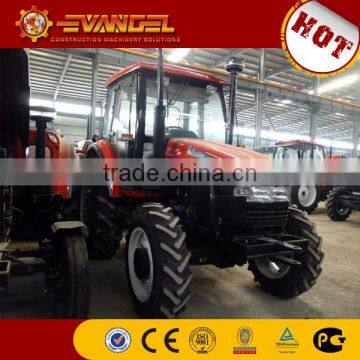

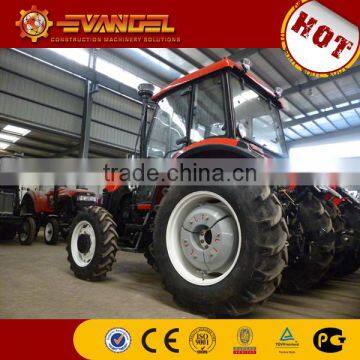

Photos: LUTONG 80HP 4WD Agricultural Farm Tractor LT804 with A/C

LUTONG 80HP 4WD Agricultural Farm Tractor LT804 with A/CLUTONG 80HP 4WD Agricultural Farm Tractor LT804 with A/C
LUTONG 80HP 4WD Agricultural Farm Tractor LT804 with A/CLUTONG 80HP 4WD Agricultural Farm Tractor LT804 with A/C
