QLN25-35hp competitive mini A level wheel tractor

Specifications

1 Strong power and low fuel consumption.
2 Good quality with competitive price.
3 A level tractors with front end loaders.

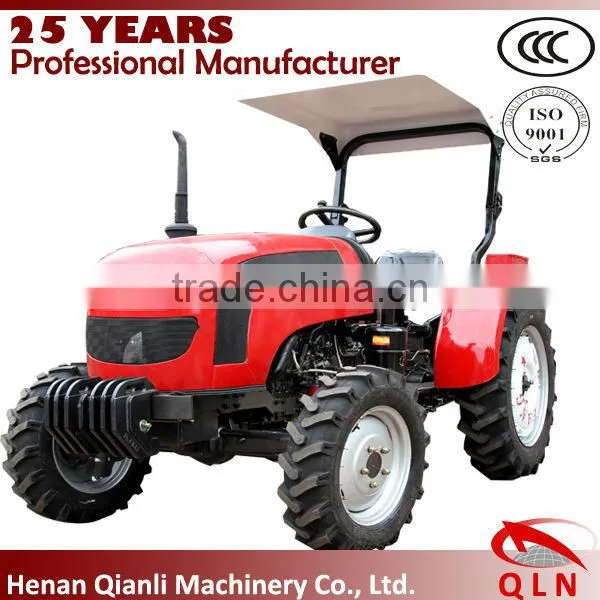

QLN304 tractor:

Famous engine and high quality!!



INTRODUCTION:

QLN tractor is in top position among the same industry in China and its matched power is famous diesel engine.

It is not only suitable for various field works, transportation and fixed tasks, but also for muddy fieldwork and engineering tasks.

The tractor has been granted the national patent, independently developed by the company through learning advanced technology home and abroad as well as tractor its own development experience.

With great adaptability, high security, top performance and high efficiency, this machine won a leading position in both domestic and abroad corn harvest machinery field and could satisfy various requirements of different users.



PRODUCTS:

1- ISO: 9001 CCC

2- Strong power and low fuel consumption.

3- Good quality with competitive price.

4- A level wheel tractor















Model	304
Drive type	4×4
Technical parameter
Dimension(L×W×H)(mm)	3200×1500×1880
Wheel base (mm)	1670
Wheel tread F/R (mm)	1065/1200
Min. ground clearance (mm)	380
Min. operation mass (kg)	1240
Ballast F/R (kg)	54/50
Engine
Engine model	3T30
Engine type	Vertical ;water cooled ;3-stroke; direct injection
Brand	Laidong
Displacement (L)	1.617
Rated power (kW)	22.1
Rated speed	2350
Transmission
Clutch	Single;dry;single-actiion;friction clutch
Gear box	F8+R2
Speed of PTO (r/min)	720
PTO shaft size(mm)	6×Φ38
Steering system
Steering system type	Hydraulic steering
Working device
Model of suspension mechanism	Rear mounted, 3-point linkage
Tilling depth control type	Position control
Max. lifting force at suspension point 610 mm (kN)	4.97
