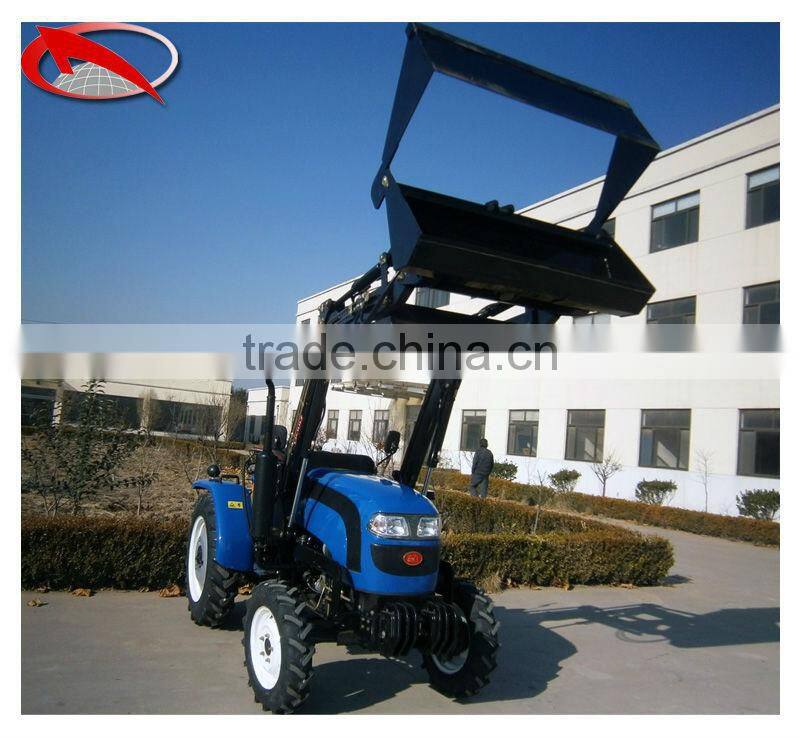

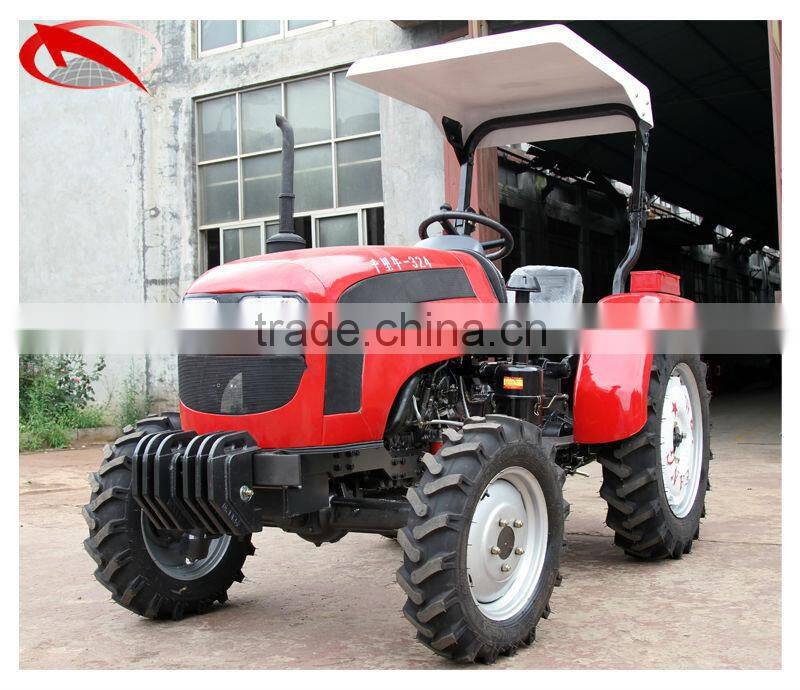

QLN 25-35hp series very famous mini tractors with front end loader

Specifications

Basic configuration

Model

QLN-300/304

Dimensions

Length×Width×Height(mm)

3200×1500×1880

Wheel Tread(mm)

Front Wheel(mm)

1065

Rear Wheel(mm)

1250-1200

Min.Ground Clearance(mm)

380(4WD)     330(2WD)

Dry Mass

Complete tractor weight(KG)

1240(4WD)   1200(2WD)

Engine

Trade Mark or Brand

LAIDONG

Engine Model

Vertical Water Cooled 3-stroke

Directly Injection

Number of Cylinder

3

Cooling System Type

Water Cooled

Rated Power(kw)

22.1KW

Fuel Tank

Volume(L)

41.3

Transmission System

Clutch

Single,Dry,Single Stage Type

Gear Box

F8+R2

Differential

Closed 4-planetary Gears

Differential Lock

Mechanical Sliding Sleeve

Braking System

Mechanical,dry type

Running System

Tyre Model

F/R(2WD)

5.5—16/9.5—24

F/R(4WD)

6.0—16/9.5—24

Steering System

Mechanical for 2wd tractor and Hydraulic steering for 4wd tractor

Working Device

Hydraulic System Type

Partial seperated lifter

Linkage Type

I Rear Mount 3-point Linkage

PTO(Standard)

Φ35×6

PTO Speed(r/min)

720

Drawbar Type

Fixed Drawbar

Optional configuration

Cab with Heater

Cab with AC

ROPS

Sunvisor

Adjustable Comfort Seat

Multiple Unit Valve

Hydraulic steering for 2WD

Dual-stage clutch

Double PTO Speed(r/min): 540/720 540/1000 720/1000

Bob-weight

Frontballest

6×10=60kg 10kg/pcs

Rearballast

2×25=50kg 25kg/pcs
