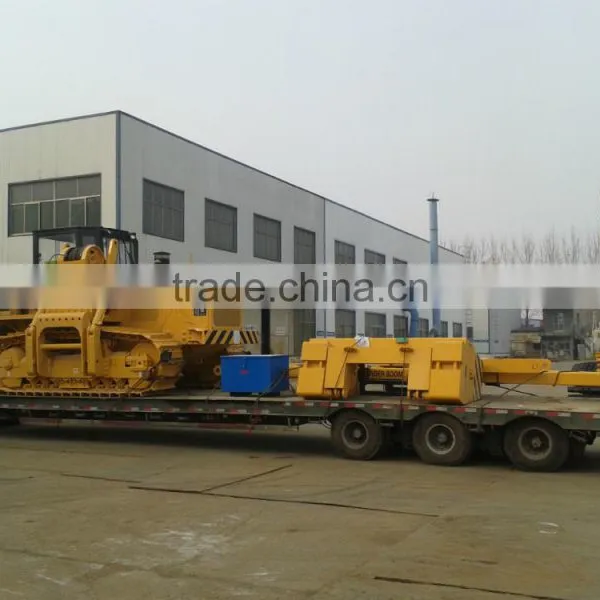

DGY40S Crawler Pipe-layer

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Model Number:

DGY40S

Luoyang Mingyang Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/qingdao/tianjin

Delivery Detail:

Delivery time depends on order quantity.

Model Number DGY40S

DGY40S Crawler Pipe-layer

Main Specifications:

Model		Unit	DHY-40S
Chassis Model		DHY-40S
Engine	Model		Cummins NT855-C280
	Rated Power	kw/rpm	164/1800
Max lifting Capacity at tipping point		t	40
Max. lifting moment at min. Load overhang		kn.m	478
Max. lifting moment at max. Load overhang		kn.m	294
Max.hoist speed of the hook		m/min (6 part line)	6
Boom length		m	6.5
Boom elevating time		s	30
Max lifting height of the hook		m	4.7
Rated Pressure of hydraulic system		MPa	20
Hook winch			Hydraulically driven,Planetary transmission,with free fall function
Rated pulling force of single rope		N	55,000
Diameter of wire rope		mm	Φ18
Boom winch			Hydraulically driven,Planetary transmission
Track Gauge		mm	2250
Length of track on ground		mm	4910
Track width		mm	1050
Rated pulling force of single rope (second layer)		N	55,000
Diameter of wire rope		mm	Φ18
Max grade ability			20°
Suitable altitude		m	0~2500
Temperature of surrounding		℃	-20℃~+40℃
Overall diameter		With boom (m)	5.59×5.1×7.3
		Without boom (m)	5.95×4.1×3.3
Ground Pressure			0.034
Operating weight		kg	35000
