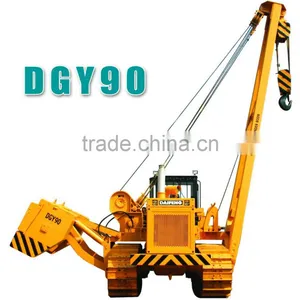

DGY90 Crawler Pipe-layer

Model

            DGY90

Chassis Model

DGY90

Engine

Model

CUMMINS NTA855-C360

Lowest Fuel Consumption Rate(g/kw·h)

242

Rated Power(Kw/r.p.m)

257/2000

Max Lifting Capacity at Tipping Point (T)

90

Max. Lifting Moment at Min. Load   Overhang (Kn.m)

1076

Max. Lifting Moment at Max. Load   Overhang (Kn.m) (Kn.m)

891.8

Boom Length (M)

8.6

Max Lifting Height of The Hook(M)

7

Hoisting speed(6 part line)(M/min)

6

Boom Length(s)

60

Number of Track Rollers

9/each side

Rated Working Pressure of System (MPa)

20

Hook , Boom winch

Hydraulically driven, Planetary transmission, Free-fall function

Track Gauge(mm)

2480

Length of Track on Ground(mm)

3620

Track Width(mm)

760

Operation mode

Hydraulic Pilot Control

Max Grade Ability

20°

Suitable Altitude(m)

0-2500

Temperature of Surroundings(℃)

-40℃—+60℃

Overall dimension

(Length ×Width ×Height)(m)

With Boom

5.9×4.95×9.21

Without Boom

5.9×3.47×3.30

Average Ground Pressure(MPa)

0.092

Operating Weight(kg)

57800
