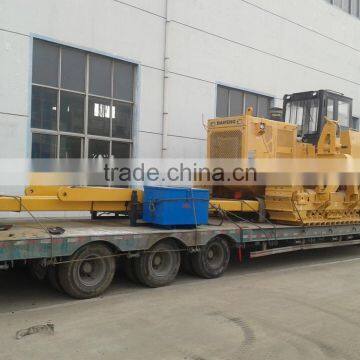

DGY40G Crawler Pipe-layer

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Model Number:

DGY40G

Luoyang Mingyang Engineering Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai/qingdao/tianjin

Delivery Detail:

Delivery time depends on order quantity.

Model Number DGY40G

DGY40G Crawler Pipe-layer

Main Specifications:

Model			DGY40G
Chassis Model			DGY-40 (IM)	DGY-40 (SHANGHAI)
Engine	Engine Model		CUMMINS NT855-C280
	Lowest Fuel Consumption Rate(g/kw·h)		211	235
	Rated Power(Kw/r.p.m)		169/2000	164/2000
Max Lifting Capacity at Tipping Point(T)			40
Max. Lifting Moment at Min. Load Overhang (Kn.m)			478
Max. Lifting Moment at Max. Load Overhang (Kn.m) (Kn.m)			415
Boom Length (M)			7
Max Lifting Height of The Hook(M)			5
Hoisting speed(6 part line)(M/min)			7
Boom Length(s)			35
Operation mode			Hydraulic Pilot Operation
Rated Working Pressure of System (MPa)			20
Hook , Boom winch			Hydraulically driven, Planetary transmission, Free-fall function
Track Gauge(mm)			2250
Length of Track on Ground(mm)			3050
Track Width(mm)			660
Min steering diameter (m)			7
Min ground clearance (mm)			450
Max Grade Ability			20°
Suitable Altitude(m)			0-2500
Temperature of Surroundings(℃)			-40℃—+60℃
Overall dimension (Length ×Width ×Height)(m)		With Boom	4.88×4.35×7.73		5.11×4.35×7.73
		Without Boom	4.88×3.45×3.25		5.11×3.45×3.25
Average Ground Pressure(MPa)			0.082		0.079
Operating Weight(kg)			34600		33500
