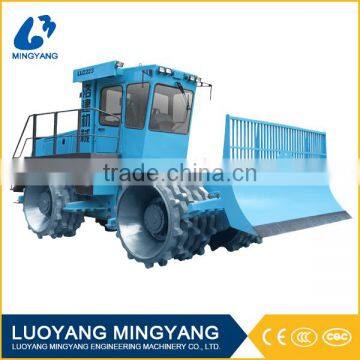

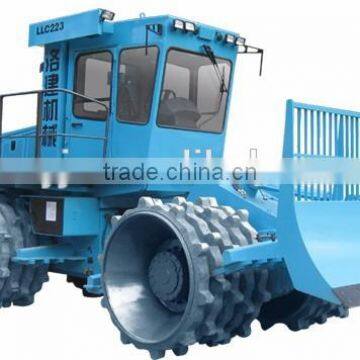

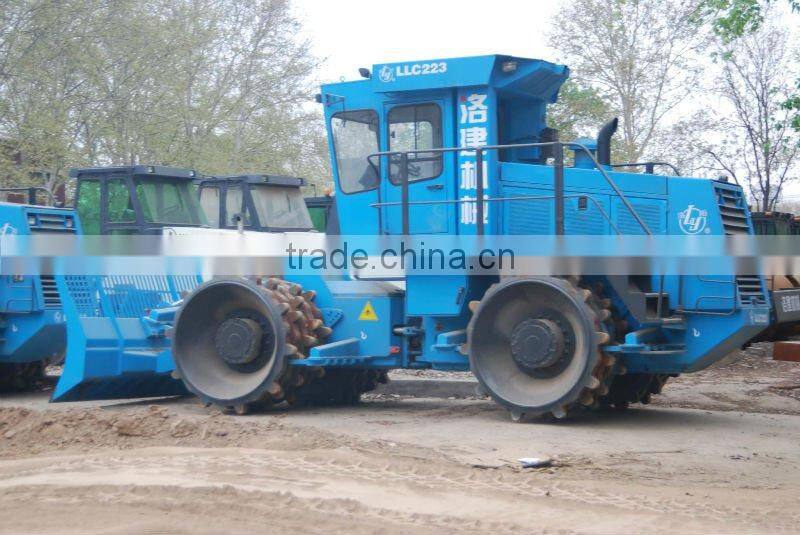

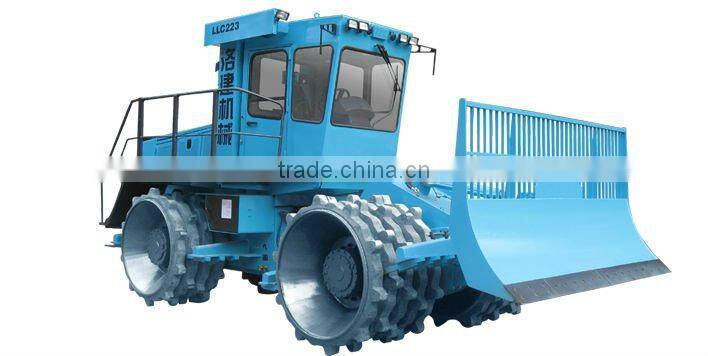

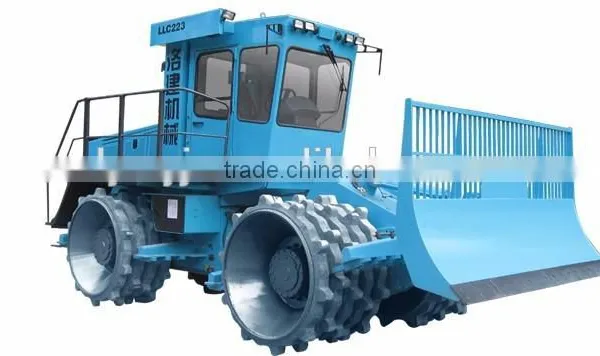

LLC223 Refuse Compactor
Refuse Compactor Main Features:
1.The refuse compactors are essential equipments for refuse landfill site. It has the functions of pushing, spreading, pulverizing demolishing and compacting the refuse. Using this refuse compactor will help to save the land, protect the environmental and extend the operating life of the refuse landfill site.
2.SHANGCHAI water-cooled turbocharged diesel engine with the cold starting system.
3.Torque converter and power gearshift transmission are applied on four wheels.
4.The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four compaction wheels will avoid the wire wrap-around and keep the wheel clean.
5.Hydraulic system is driven by a piston pump with load sensing system, provides smooth and light control,high efficiency and energy economy.
6.The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.
7.The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.
8.Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.
9.Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.
Refuse Compactor Technical Specifications:
MODEL |
LLC223 |
|||
Mass | ||||
Operating mass |
kg |
23000 |
||
Overall length |
mm |
7355 |
||
Overall width at dozer blade |
mm |
3000 |
||
Overall height |
mm |
3590 |
||
Wheelbase |
mm |
3350 |
||
Clearance |
mm |
435 |
||
Wheel width |
mm |
1040/835 |
||
Teeth No. per wheel (front / rear) |
|
50/40 |
||
Drive | ||||
Diesel engine manufacture |
|
SHANGCHAI |
||
Diesel engine model |
|
SC8D200 |
||
Diesel engine power |
kW |
147 |
||
Diesel engine rated speed |
r/min |
2000 |
||
Electrical system |
V |
24 |
||
Number of driven wheels |
|
4 |
||
Forward travel speed (1) |
km/h |
0-4.2 |
||
Forward travel speed (2) |
km/h |
0-15.7 |
||
Backward travel speed |
km/h |
0-5.8 |
||
Gradeability |
% |
100 |
||
Serve brake |
Air-over-oil, caliper disk brakes |
|||
Steering angle |
±° |
40 |
||
Oscillating angle |
±° |
15 |
||
Steering radius (outer front wheel) |
mm |
6085 |
||
Fuel tank |
L |
450 |
||
Hydraulic oil |
L |
236 |
||
Henan Mingyang Industrial Co.,Ltd is located in Luoyang - an ancient capital city of thirteen dynasties. We mainly sell YTO series construction machine (made by YTO Group) and other Chinese famous construction machines in China mainland and abroad. Besides, we can offer research and development for rubber products.
We mainly provide Wheel Loader, Road Roller, Bulldozer, Paver, Motor Grader, Asphalt Mixing Plants and other large-scaled engineering machinery which already pass through CE and ISO 9001 certification. Our company has also been honored with AAAA level credit enterprise.
We are working hard on developing and researching new technology. We have already developed HEC Coal Combustion Catalyst for fuel electric plant. The generated electrical energy and standard coal consumption rate of the main steam coal can get to be 2.5%--4% with this catalyst. The harmful gas emission: NOx, SO2, CO, F, AS can also be reduced to be 5%--25%. The emission standard can reach the leading level in the world. The sub-company Rubber Products Co. has the biggest amount of capital input and millions of rubber products output per year, which are all among the leading positons of this trade.
Our Business Strategy: to be people-oriented, honesty and trustworthy, as well as to root in China and face the world. The three important factors--quality, service and emotion--fully impenetrate in all the selling processes.
Our Operational Conceps: to build up first-class team, set up first-class image, sell first-class products, offer first-class service, create first-class value and let both the manufacturers and the end users share plentiful fruits.
Through several years of our great efforts, YTO series construction machines have been widely sold to more than 30 provinces in China and exported to Europe, Africa, Asian,South Africa, Russia and other countries. We enjoy highly reputation for good quality and good credibility and contribute to promote Chinese construction machines to the world.
Our prospect is vertical combination, horizontal development, and to make our team be the great sellers in the construction machinery trade, the leaders in the research areas, as well as to sell products and make friends all over the world.
