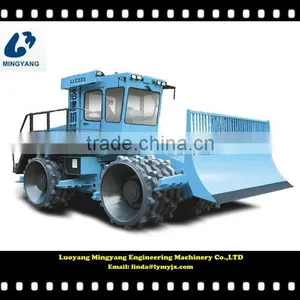

Help CenterRefuse Compactor LLC223
Related Products
-
LLC233H Refuse Compactor Hot SaleNegotiableMOQ: 1 Unit -
New Good Quality Refuse Compactor LLC220 Hot SaleNegotiableMOQ: 1 Unit
-
LLC220 Refuse Compactor 20ton Wasteyard Compacting MachineNegotiableMOQ: 1 Unit
-
33ton Hydraulic Landfill Compacting Machine LLC233H Refuse Compactor Hot SaleNegotiableMOQ: 1 Unit
-
Chinese Brand 26ton Landfill Compactor LLC226 for SaleNegotiableMOQ: 1 Unit
Specifications
Diesel engine rated speed2000r/minDozer blade width3000mm
Hydraulic oil capacity236L
Electrical system24V
Gradeability 100%
MAIN FEATURES:
The refuse compactors are essential equipments for refuse landfill site. It has the functions of pushing, spreading, pulverizing demolishing and compacting the refuse. Using this refuse compactor will help to save the land, protect the environmental and extend the operating life of the refuse landfill site.
SHANGCHAI water-cooled turbocharged diesel engine with the cold starting system.
Torque converter and power gearshift transmission are applied on four wheels.
The high wear life teeth are arranged specially, two scraper bars and two wire cutters on four compaction wheels will avoid
the wire wrap-around and keep the wheel clean.
Hydraulic system is driven by a piston pump with load sensing system, provides smooth and light control,high efficiency and energy economy.
The crucial spots are maintained regularly by the central lubrication system. The disinfector spray device is equipped to guard against mosquito.
The Roll-Over Protective Structure (ROPS) as an integral part of the frame, service brakes on the front and rear axles and central parking brake will guarantee most reliable safety.
Turnover driver's cabin, engine hood with three windows at dual sides, access step and protective ladder in both sides make main components accessible.
Infrared vehicle video monitor system and backup buzzer are greatly convenient for driver's travel and working with more safe in increased rear view.
TECHNICAL SPECIFICATIONS:
MODEL |
LLC223 |
|||
Mass | ||||
Operating mass |
kg |
23000 |
||
Axle load (front) |
kg |
11000 |
||
Axle load (rear) |
kg |
12000 |
||
Dimensions | ||||
Overall length |
mm |
7355 |
||
Overall width at dozer blade |
mm |
3000 |
||
Overall width at front wheel |
mm |
2910 |
||
Overall width at rear wheel |
mm |
2705 |
||
Overall height |
mm |
3590 |
||
Wheelbase |
mm |
3350 |
||
Clearance |
mm |
435 |
||
Compacting wheel | ||||
Wheel width |
mm |
1040/835 |
||
Wheel diameter (front / rear, out teeth) |
mm |
1500/1500 |
||
Wheel diameter (front / rear, inner teeth) |
mm |
1200/1200 |
||
Teeth No. per wheel (front / rear) |
|
50/40 |
||
Drive | ||||
Diesel engine manufacture |
|
SHANGCHAI |
||
Diesel engine model |
|
D6114ZG |
||
Diesel engine power |
kW |
147 |
||
Diesel engine rated speed |
r/min |
2000 |
||
Electrical system |
V |
24 |
||
Number of driven wheels |
|
4 |
||
Forward travel speed (1) |
km/h |
0-4.2 |
||
Forward travel speed (2) |
km/h |
0-15.7 |
||
Backward travel speed |
km/h |
0-5.8 |
||
Gradeability |
% |
100 |
||
Dozer blade | ||||
Dozer blade height |
mm |
1650 |
||
Dozer blade width |
mm |
3000 |
||
Dozer blade height over ground |
mm |
1000 |
||
Dozer blade depth below ground |
mm |
150 |
||
Brake | ||||
Serve brake |
Air-over-oil, caliper disk brakes |
|||
Parking/Emergency brake |
Mechanical, expanding hoofed brake |
|||
Steering | ||||
Steering method |
Hydraulic central articulation with oscillation |
|||
Steering angle |
±° |
40 |
||
Oscillating angle |
±° |
15 |
||
Steering radius (outer front wheel) |
mm |
6085 |
||
Capacities |
|
|
||
Fuel tank |
L |
450 |
||
Hydraulic oil |
L |
236 |
||
