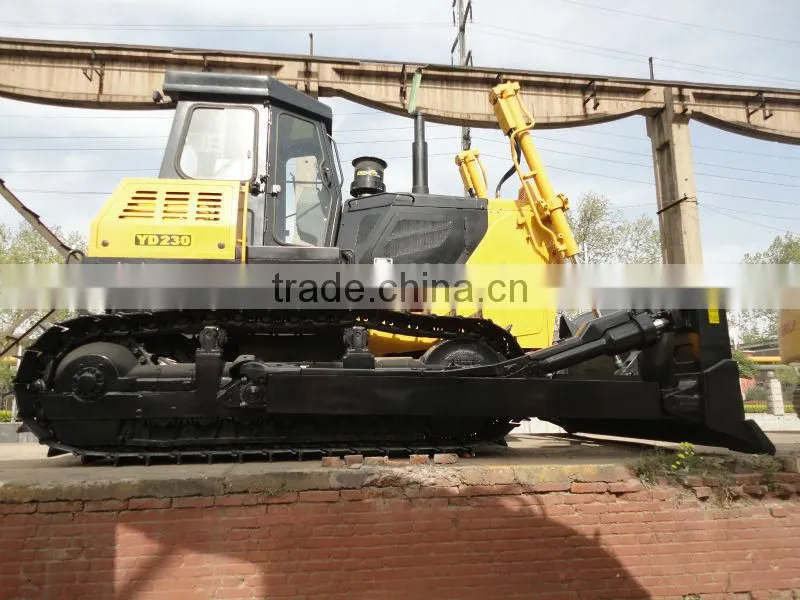

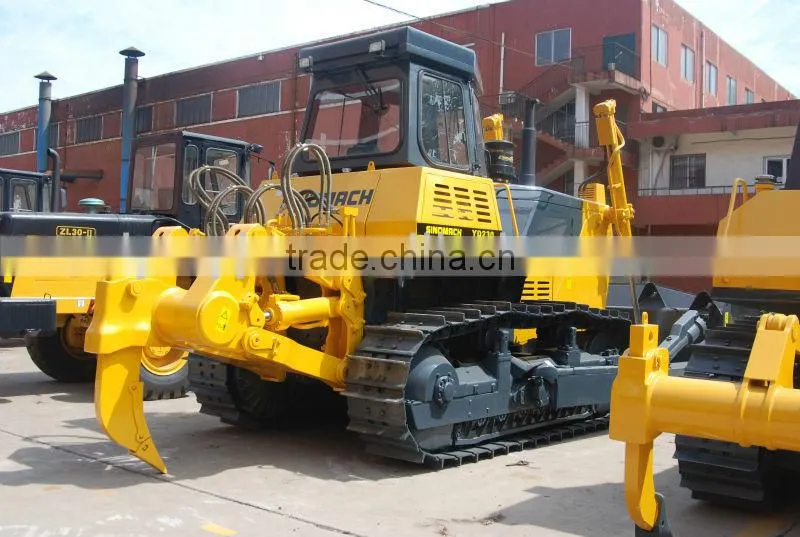

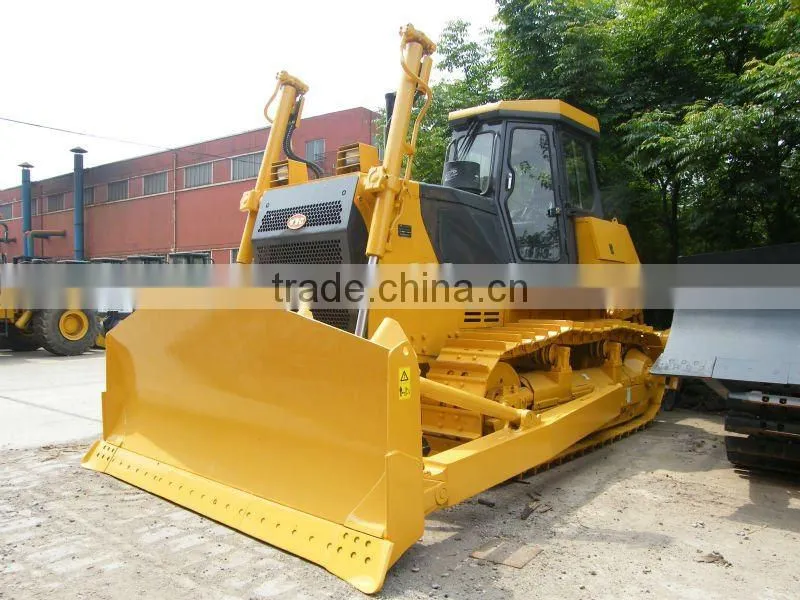

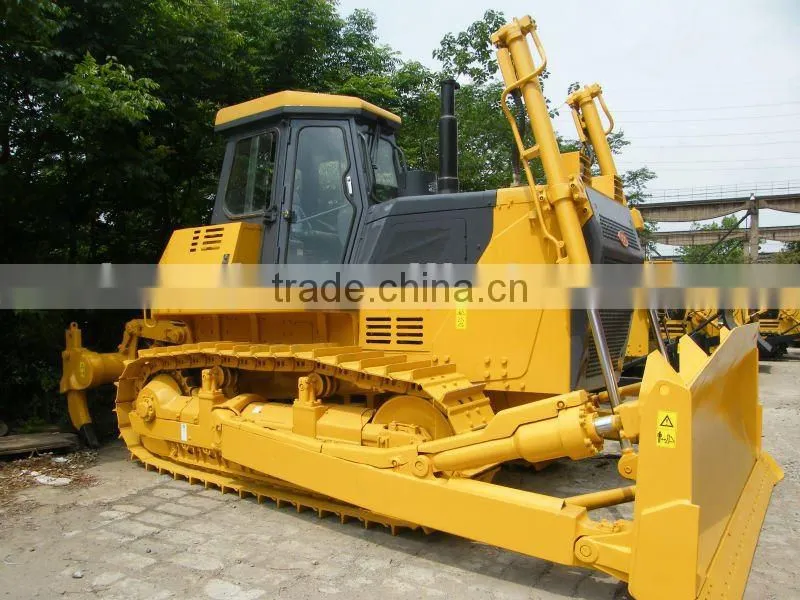

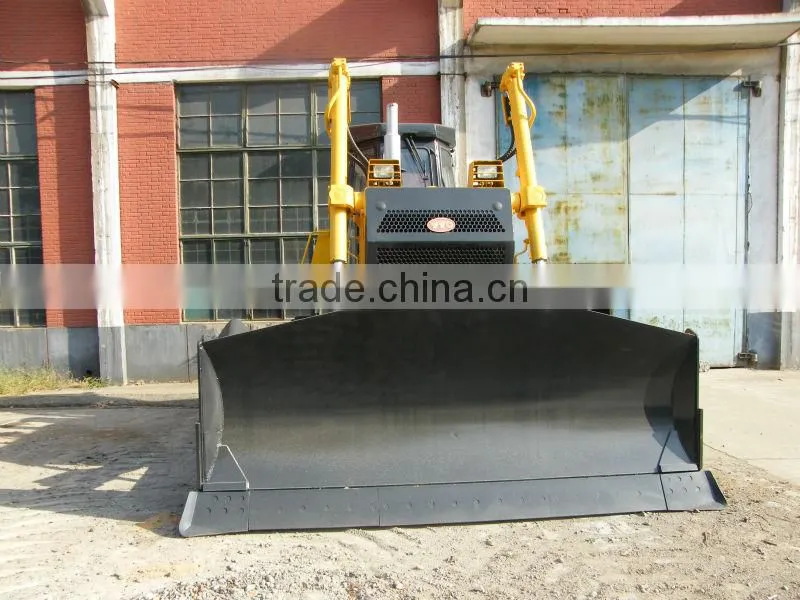

YD230 230Hp Hydraulic Tracked Dozer
Main features:
1. Engine meets the National II emission standard, which is energy conservation and environmental protection.
2. Using the American Donaldson air filter and postfilter device, prolong engine life, increase maintenance interval.
3. Engine muffler cancel ejector device, increase exhaust given. It reduces the exhaust pressure, and then reduce the fuel consumption.
4. Adopt sealed measures before and after heat isolation cooler air, which improves the cooler to come loose hot effect.
5. Hydraulic filter increase alarm device, timely remind users cleaning cartridge or replace hydraulic oil.
6. Air conditioner cooler is installed below the hood, can use the engine cooling air cooling, increasing the cooling effect.
7. Oil, water and other daily maintenance point is humanized decorated. Inspection and maintenance is convenient.
8. Earth-moving oil cylinder is placed in the front and above, reduced oil cylinder and former head of their stress, and is convenient for engine checking and maintenance.
Technical specifications:
Model |
YD230 |
Total weight |
24220 kg |
Max towing force |
221 KN |
Engine model |
NTAA855-C280S20 |
Engine rated power |
179 KW |
Engine rated speed |
2000 r/min |
Forward III gear |
3.8~11.3km/h |
Reverse III gear |
4.9~13.6km/h |
Track board width |
560 mm |
Land pressure |
76kPa |
Overall dimension(LxWxH) |
6870x3725x3522 mm |
Bulldozer shovel(WxH) |
3725x1395 mm |
Max lifting height of bulldozer |
1210 mm |
