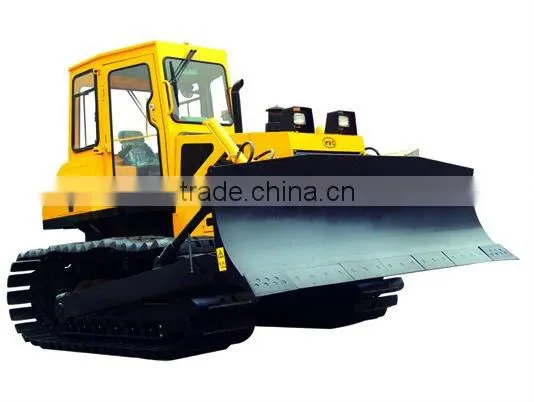

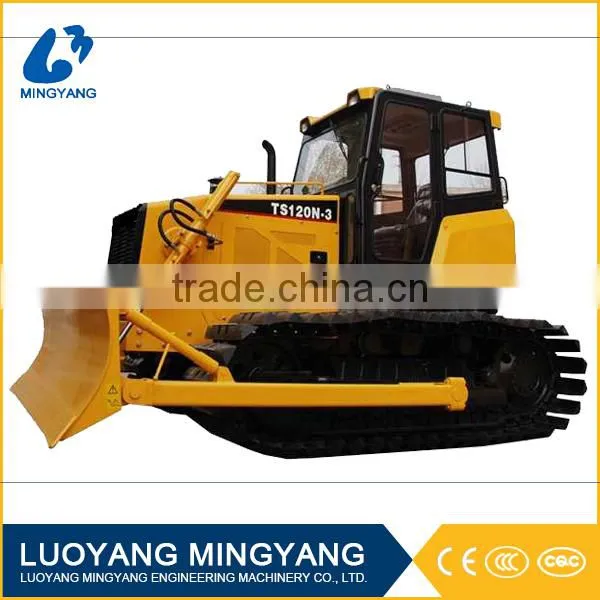

TS120N-3 Crawler Soil Shifter
MAIN FEATURES:
Engine: Choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil consumption, stronger torsion.
Main clutch comprises of dry, dual-sheet and common combined with, features bigger torque reserve, simpler construction, more reliable and easier maintenance.
Gear box is applied to 4F plus 2R mechanical shift, features higher efficiency, simpler operation, easier maintenance and more reliable operation.
Turning clutch: Choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintaining, lightly and conveniently operating.
Filter applied in desert is more applicable for coal reserve site, desert and other special work condition.
Operation environment is fully closed, hexahedral cab with lower noise; effectively reducing noise beside your ear, extending your visual field and effectively improving comfort;
Electric system is characterized by electronic monitor, making real-time monitor for complete machine to assure normal operation;
Standard heating and ventilation equipment, air conditioner optional.
Operation device: several devices such as direct-pouring shovel, environmentally hygienic, angle shovel; coal-pushed shovel and scarifier are available for user.
TECHNICAL SPECIFICATIONS:
Model |
|
T120N-3/TS120N-3 |
Total weight |
kg |
13000/13300 |
Max towing force |
kN |
115 |
Engine model |
|
LR6A3Z-20 |
Engine rated power |
kw |
88.2 |
Engine rated speed |
r/min |
2000 |
Fuel Consumption of the engine |
g/kw.h |
≤235 |
Engine max torque |
N.m |
526 |
Forward I-IV gears |
km/h |
2.4~10.6 |
Reverse I-II gears |
km/h |
3.8~7.0 |
Caterpillar track board width |
mm |
500 |
Land pressure |
Kpa |
51/58 |
Overall length |
mm |
4575 |
Overall width |
mm |
3130 |
Overall heighe |
mm |
2900 |
Bulldozer shovel(W×H) |
mm |
3135/3450×970/1060 |
Blade max lifting height |
mm |
894 |
Blade max digging depth |
mm |
400 |
Cutting angle(adjustable) |
o |
55 |
