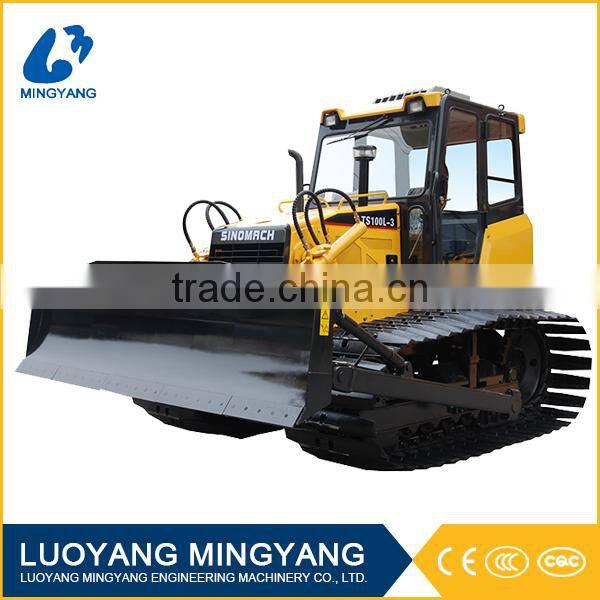

TS100L-3 Wet Type Tracked Bulldozer
MAIN FEATURES:
Engine: Choose the pressure rising engine produced with British Ricardo joint-venture technology, lower oil consumption, stronger torsion.
Master clutch: Choose dry, double piece and constant combining clutch, stronger torsion, simple and reliable.
Gearbox: Choose 4F+2R mechanical gearbox, simply operating, conveniently maintaining, reliably using.
Turning clutch: Choose dry and multi-piece turning clutch, manually operating with hydraulic pressure, easily maintaining, Lightly and conveniently operating.
Transmission: Choose two classes, straight teeth, big modulus gear transmission, stronger carrying capacity, and higher reliability.
Work device: Many kinds of work device are chosen for users according to requirements.
Operating environment: Choose fully completed close,low noise cab.
Reliably using, conveniently maintaining, spare parts are easily purchased.
Reliably using is suitable for water and electricity projects, agricultural application, river and pond marsh, mud and loosing and soft environment.
TECHNICAL SPECIFICATIONS:
Model |
| TS100L-3 |
Total weight | kg | 11360 |
Max towing force | kN | 81 |
Engine model |
| LR6105T13A |
Engine rated power | kw | 73.5 |
Engine rated speed | r/min | 2300 |
Fuel Consumption of the engine | g/kw.h | ≤238 |
Engine max torque | N.m | 400 |
Traveling speed | km/h | 500 |
Forward I-IV gears | km/h | 2.6~10.4 |
Reverse I-II gears | km/h | 3.7~6.7 |
Max slope angle | o | ≥30 |
Caterpillar track board width | Mm | 720 |
Land pressure | Kpa | 36.5 |
Overall length | Mm | 4175 |
Overall width | Mm | 3230 |
Overall height | Mm | 3002 |
Blade width | Mm | 3240 |
Blade height | Mm | 878 |
Blade max lifting height | Mm | 830 |
Blade max digging depth | Mm | 350 |
Cutting angle(adjustable) | o | 55 |
