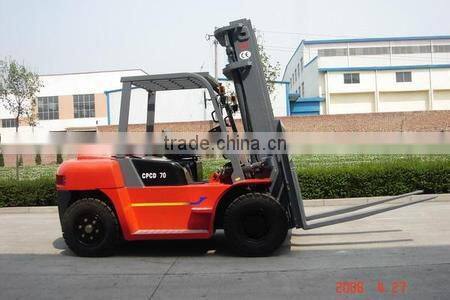

CPCD70 7t Forklift
Technical Specifications:
Features:
1. Reliable engine
Our hydraulic internal combustion forklift truck uses high quality diesel engine, which can offer strong power.
2. Intelligent driving control system
It is equipped with digital intelligent driving control system, so the operation data of forklift can be obtained and the whole process control can be achieved.
3. Full hydraulic flexible steering system
Full hydraulic steering system can help ease the fatigue of operator. The steering system is designed with crank sliding piece steering mechanism, so the reliable steering can be guaranteed.
4. Classical space frame structure
Our hydraulic internal combustion forklift truck uses classical ASF YTO space frame structure. It is ergonomically designed, aesthetic in appearance, compact in structure, and easy to operate.
5. Good scope of eyesight
The construction equipment adopts optimized gantry rail section design and the enlarged internal width enables the driver to enjoy a wide scope of eyesight.
6. Optional Engines
ISUZU, YANMA, PERKINS.
Technical specifications:
Item |
Unit |
CPCD 70 |
Power type |
Diesel |
|
Rated capacity |
Kg |
7000 |
Load center distance |
mm |
500 |
Maximum lifting height |
mm |
3000 |
Free lift height |
mm |
165 |
Minimum turning radius |
mm |
2410 |
Maximum travel speed (empty/carrying) |
Km/h |
19/18 |
Maximum lift speed (empty/carrying) |
mm/s |
450/420 |
Maximum descend speed (empty/carrying) |
mm/s |
600 |
Mast tilt angle (Forward/Backward) |
deg |
6/12 |
Maximum grade ability (with load) |
% |
20 |
Total Weight |
Kg |
4250 |
Length x width x height (without fork) |
mm |
2770X1225X2160 |
Goods fork size (thickness X width X Length) |
mm |
45X125X1070 |
Front Tyre |
28X9-15-14PR |
|
Rear Tyre |
6.50-10-10PR |
|
Engine Manufacturer |
YTO |
|
Engine Model |
YT3A2-24 |
|
Rated output |
Kw/r/min |
40.5/2400 |
Rated torque |
Nm/r/min |
186/1800 |
Emissions |
L |
3.117 |
