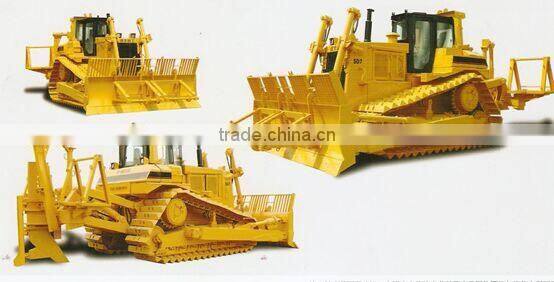

SD7LGP Burying Cable Bulldozer
SD7LGP Multifunction bulldozer is a new product for digging & embeding the optical fiber cable on the ground, designed and fabricated by HBXG performing the following functions: laying& emdedding optical cable, steel cable, electricity cable, emerging the digging, laying, embedding with one process, utmostly improving the working efficiency.
Main Features:
1. Torque converter: is power separating hydraulic-mechanic type 2.Transmission: planetary, power shift transmission with three speeds foreward forward and three speeds reverse, speed and direction can be quickly shiftered shifted.
3. Steering clutch: is hydraulic pressed, usually separated clutch. 4. Braking clutch: is pressed by spring, separated hydraulic, meshed type. 5. Final drive: is twostage planetary reduction gear mechanism, splash lubrication.
Main technical parameters:
Model |
Unit |
SD7LGP |
Max. digging & embedding depth |
mm |
1600 |
Max. diameter Of the laid nose |
mm |
40 |
Laying & embedding speed |
Km/h |
0~10 |
Max. Lifting Weight |
Kg |
≤700 |
Max. diameter of the coil of roller |
mm |
1800 |
Max. width of the coil of roller |
mm |
1000 |
Width of digging |
mm |
76 |
Operating weight |
Kg |
32500 |
Engine rated power |
kW |
185 |
Ground pressure (without ripper) |
KPa |
45.6 |
Ground clearance |
mm |
485 |
Ground contact Length |
mm |
2890 |
Track center distance |
mm |
2235 |
Overall dimensions |
mm |
8900x4382x3682 |
Gradient |
° |
30/25 |
Gear (Forward) |
|
|
1st gear |
Km/h |
0-3.9 |
2nd gear |
Km/h |
0-6.5 |
3rd gear |
Km/h |
0-10.9 |
Gear (Forward) |
|
|
1st gear |
Km/h |
0-4.8 |
2nd gear |
Km/h |
0-8.2 |
3rd gear |
Km/h |
0-13.2 |
Engine type |
/ |
CUMMINS NTA855-C280S10 |
Engine manufacturer |
/ |
CHONGQING CUMMINS |
Engine rated speed |
RPM |
2100 |
Engine rated power |
N.m/rpm |
1097/1500 |
Rated fuel consumption |
g/kW.h |
≤235 |
Start mode |
/ |
24V electric starting |
Flywheel power |
kW/Hp |
169/230 |
Undercarriage system type |
/ |
triangle shape, elevated elastic suspended |
No. of track rollers (each side) |
/ |
7 |
No. of carrier rollers (each side) |
/ |
1 |
Pitch |
mm |
216 |
Width of shoe |
mm |
910 |
Max. system pressure |
MPa |
18.6 |
Pump type |
/ |
High pressure gears pump |
System output |
L/min |
194 |
