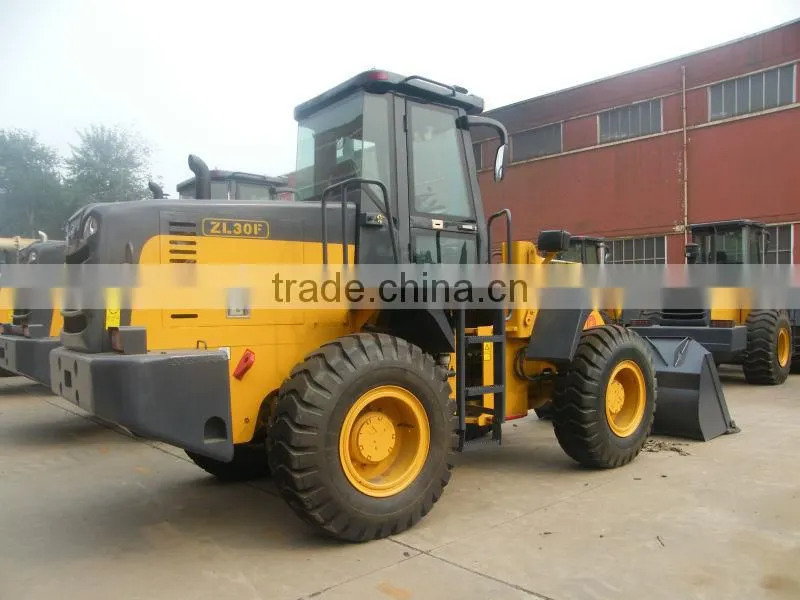

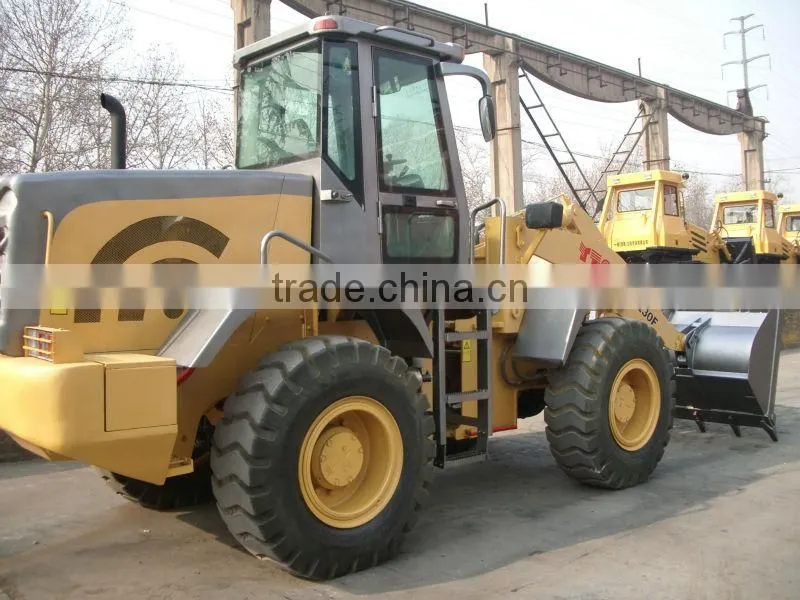

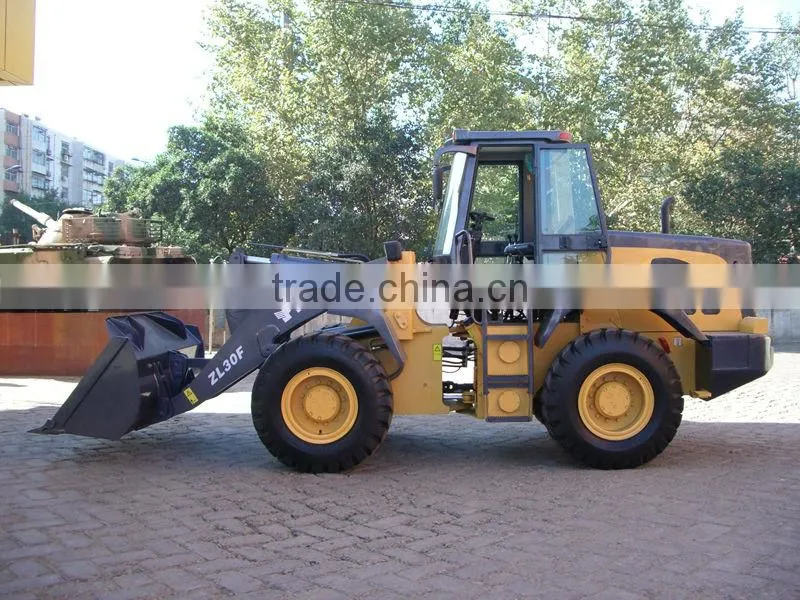

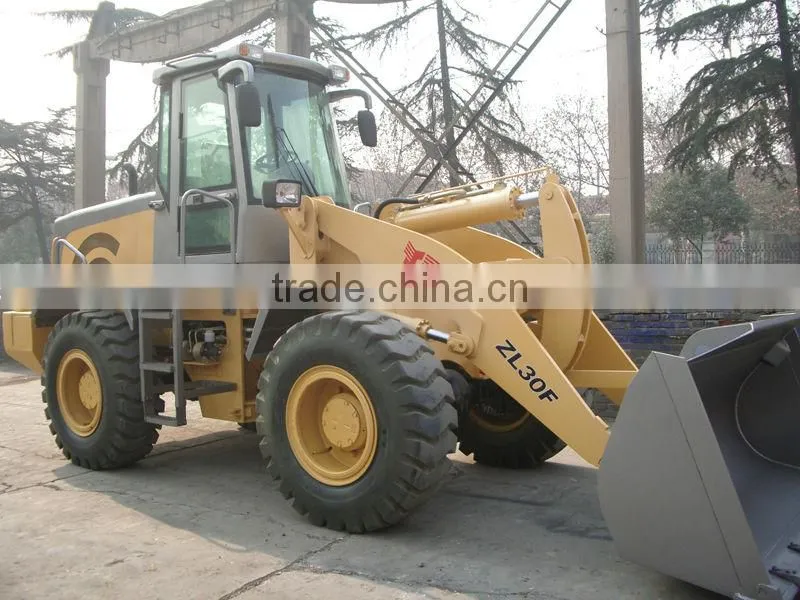

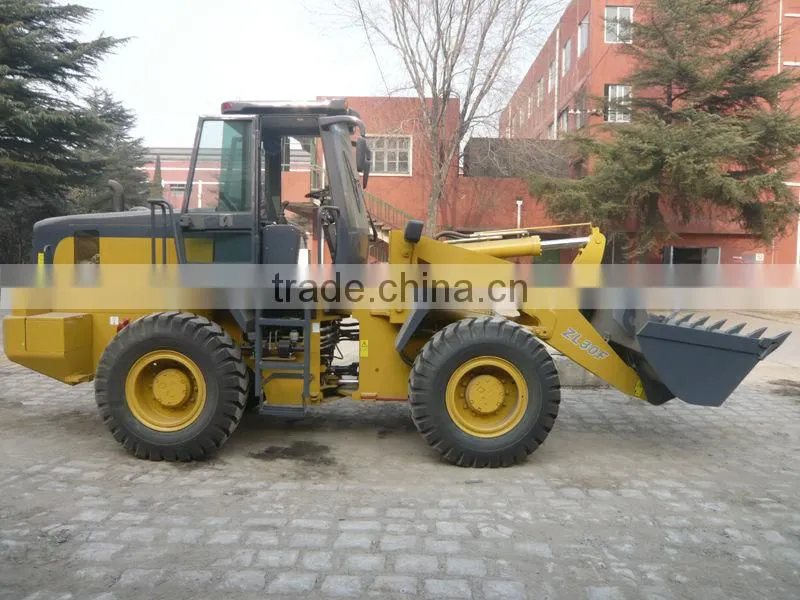

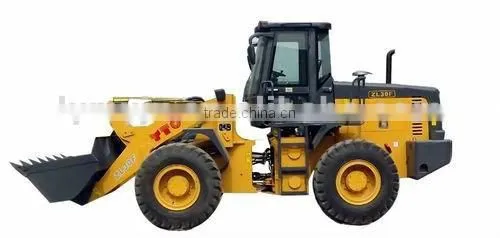

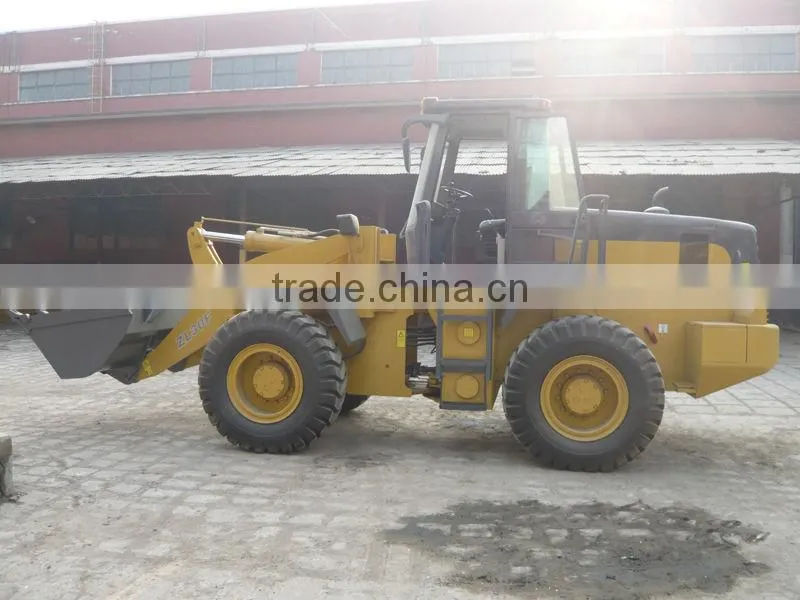

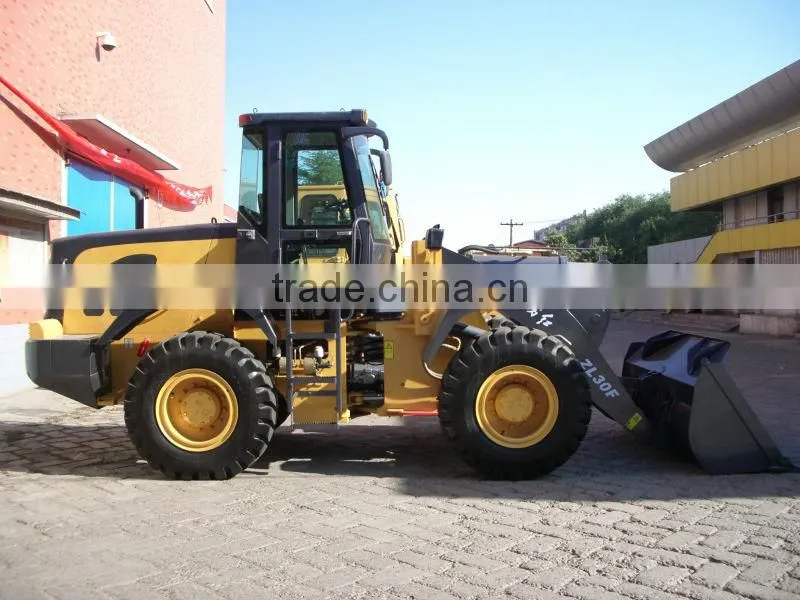

YTO Brand ZL30F Wheel Loader
- 100 Set / Sets per Month
- Qingdao/Tianjin/Shanghai
- T/T
Product Details
Condition: | New | Brand Name: | YTO | Model Number: | ZL30F |
Place of Origin: | Henan, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 7000x2425x3300mm | Rated Load: | 3000kg | Certification: | CE & ISO Certificate |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

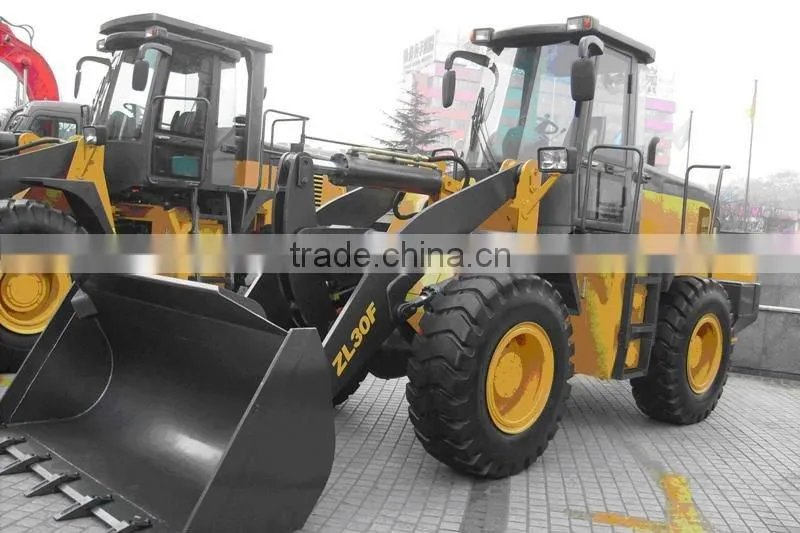

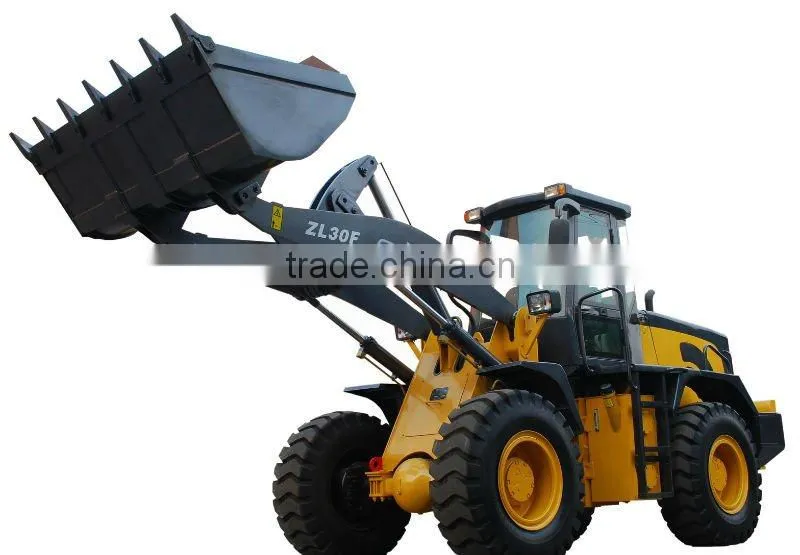

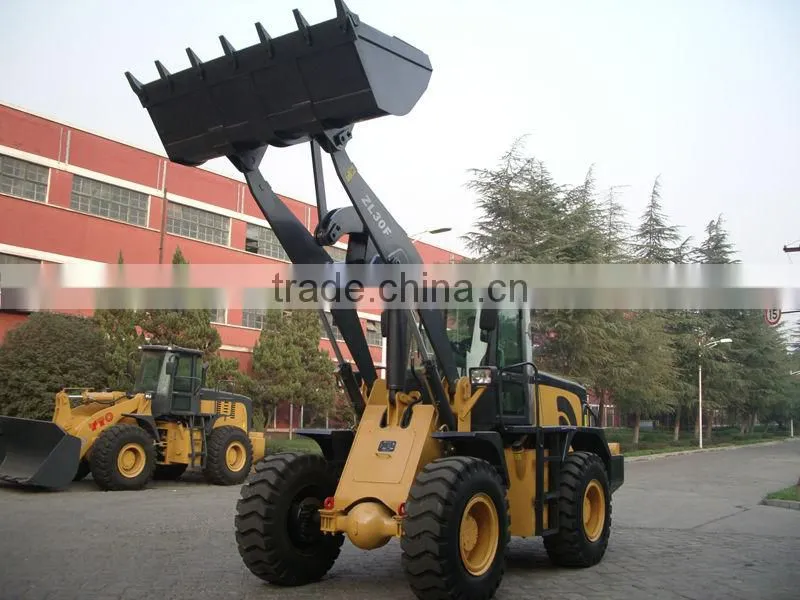

YTO Brand ZL30F Wheel Loader
MAIN FEATURES:
Dongfanghong LR6108G6FIA or YC6108g diesel engine is applied as it features bigger power reserve ,stronger power , bigger torque reserve coefficient ,and fuel features economical and environmentally protected.
Torque-varied device features high efficiency and big torque-varied coefficient ; as it equips with higher reliable gear-box and drive axis , it comes with bigger traction and longer life.
As rear car rack is applied to single-plate T-shaped girder , so it features more stability , higher reliability , bigger interior space and easier maintenance.
As fully hydraulic turning system equips with equidistant hinged car rack , frontal and rear wheel have the same track , eliminating hermit power loss while turning , and it features easier and more flexible operation , and has more stable performance.
Double-pipe tie rod construction features bigger up-growth force , hither unloading position and bigger unloading distance . More flexible turning at the corner road and more time saving and higher efficient operation .
Z-type connection rod , high digging force , and high shovel efficiency .
Luxurious car is sound insulated , heat insulated , broad visual field ; seat chair specialized for engineering machinery features superior damping performance and comfort while driving and riding .
Expand torque-varied oil heat radiator and water one , make it high efficiently radiated , so as to suit for heavy load and high temperature operation environment .
Integral operation platform , streamline design , and humanized operation layout equipped with new type of electronic instrument , capable of quickly monitoring the working condition of the whole unit .
Standard heating and ventilation equipment , air conditioner optional . All specialized operation devices should be selected out and configured with.
TECHNICAL SPECIFICATIONS:
Model |
| ZL30F |
Total weight | kg | 10200 |
Bucket capacity | m3 | 1.7 |
Rated load | kg | 3000 |
Movable arm lifting time | S | ≤5.5 |
Three item time | S | ≤10.5 |
Max digging force | kN | 92 |
Min turning radius | mm | 5175 |
Wheelbase | mm | 2750 |
Max steering angle | o | 36 |
Minimum ground clearance | mm | 395 |
Forward I-IV gears | km/h | 7.7~40 |
Reverse I-II gears | km/h | 9.5~33 |
Max slope angle | o | 28 |
Damping height | mm | 3160 |
Damping reach | mm | 1052 |
Overall length | mm | 6950 |
Overall width | mm | 2420 |
Overall height | mm | 3300 |
Engine model |
| LR6B3-22 |
Engine rated power | kW | 92 |
Fuel tank capacity | L | 140 |
Hydraulic oil tank capacity | L | 160 |
