PLS Vertical Shaft Impact Crusher
- 30 Unit / Units per Month
- Qingdao Tinajin Shanghai
- T/T
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | Mining, Building |
Certification: | CE | Warranty: | 12 month |
Product Description

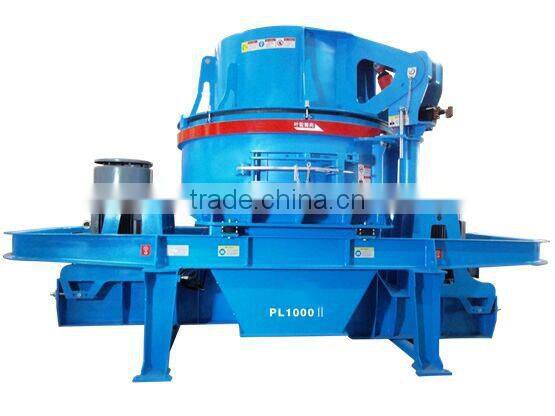

PLS Vertical Shaft Impact Crusher
Summary:
PLS Vertical Shaft Impact Crusher is a pioneer crusher (self impact of material/ material or material beating reaction plate)researched and developed by our company. It has two models: “Stone Beat Stone (PL)”and “Stone Beat Iron (PLST)”. The“Stone Beat Stone (PL)”can be used in processing hard materials and the sand productivity is over 40%; the“Stone Beat Iron(PLST)”can be used in processing the materials with medium and high degree of hardness and the sand productivity is over 60%. These two types of chamber can be transformed mutually in order to satisfy the needs for processing and crushing different materials.
The machine can be widely used in the fields of metal and the nonmetallic ore, highway , hydraulic engineering and hydraulic power project, refractory material, grinding material, raw material for glass ceramics, aggregate used in city construction, manufactured sand making as well as rough grinding and fine crushing various metallurgic residues. It is superior to other types of crushers especially for the materials with medium and high degree of hardness as well as hard abrasive materials such as silicon carbide, carborundum, sintered aluminum vanadium , magnesia and so on.
Working Principle
Stone Beat Stone: The material falls vertically and uniformly from the top of the machine. One part of them enters into the revolving impeller at high speed by the distributor and feed pipe, and is shot out from the discharge outlet of impeller by the action of the high-speed centrifugal force.Then at high speed they are smashed with another part of the materials that have been distributed around impeller by the distributor with umbrella distributaries. After smashing each other the materials shall form whirlpool and impact many times caused by striking and attrition in the impeller and crushing chamber.
Stone Beat Iron: The material falls vertically and uniformly from the top of the machine, and enters into the revolving impeller at high speed by the feed pipe. Then they are shot out from the discharge outlets of impeller by the action of the high-speed centrifugal force, and at high speed strike and crush with impact plate around the impeller
Main Features:
1. More chamber space and more throughput ;
2. Higher accuracy of manufacture and anti-unbalanced ability ;
3. Low running resistance and motor consumption;
4. Reasonable measurement and angle, lowest cost for wear parts ;
5. Extremely low contamination of the product through wearing metal parts ;
6. Quick and easy replacement f or wear parts .
Specifications:
Code | Specification | Max. Feeding (mm) | Rotate Speed of Impeller (mm) | Power (kw) | Throughput (t/h) | Weight(kg) |
1 | PLS-550 | 30 | 2258-2600 | 30-45 | 24-60 | 4780 |
2 | PLS-700 | 35 | 1775-1965 | 55-1 10 | 55-120 | 7500 |
3 | PLS-850Ⅱ | 50 | 1320-1720 | 150-320 | 75-345 | 11500 |
4 | PLS-1000Ⅱ | 60 | 1240-1460 | 320-500 | 200-385 | 17000 |
5 | PLS-1200Ⅱ | 60 | 1040-1300 | 500-630 | 300-715 | 22650 |
Remarks:
(1) The above capacity is based on the rock with bulk density 1.6t/m.
(2) The above capacity will change according to feed size, graduation of feed material, water content and rock type.
Packaging: according to the shipment requirement
Shipping: 30days after receive the down payment
Payment terms: 30%TT as deposit, 70%TT before shipment;
Delivery time: 25-30 days after deposit
Sales manager: Alina
Email: smallwang(at)
Trade manager: cn220063878
Company: Luoyang Mingyang Engineering Machinery Co., Ltd.
About us:
Luoyang Mingyang Engineering Machinery Co., LTD is a professional engineering machinery selling company, qualified with import and export trade qualification, with products exported to more than 30 countries and regions domestic and abroad. Our main products are: loader, road roller, bulldozer, grader, paver, refuse compactor, concrete mixing plant and other large engineering machinery, as well as railway locomotive accessories (side frames, bolsters, wheels etc.), wind power equipment, etc., which gained the European CE certification and ISO9001 certification in China. Luoyang Mingyang Engineering Machinery Co., Ltd. has the most dynamic marketing team as well as an advanced and professional group consisting of many senior engineers, who are mainly responsible for the quality testing and production supervision to guarantee the high quality of our products and the good reputation of our company. After years of steady development, our products not only gained market in more than thirty domestic provinces, cities and autonomous regions, but also exported to Europe, Africa, South America, Russia, etc. We also established companies in several foreign countries. Our prospect is to become the famous domestic exporter of engineering machinery and we are committed to providing qualified engineering machinery products and services. Profession achieves good quality, ideal creates future. Mingyany, excellence due to continuous pursuit and condensed verve, to let the world enjoy the unlimited scenery of science and technology.
Customer Service:
Service promise:
We always insist ‘The customer is first, the client is best’. We do our effort to provide eligible products to all clients. Now we promise as following:
1. According to the rule of law, the detailed rules of new system of guarantees, we provide guarantees for our products.
2. If there are quality objections in our machine because of designing, making, assembly and material, we'll repair, replacing in time.
3. We’ll give the machine to client as its 0 working hour. That’s can make sure the client use and maintain better.
4. We’ll reply on you in 4 hours as you meet the problem when you use machine according to the manual strictly. If we need support service at work site, we’ll settle the problem inside the province in 24 hours and outside province 72 hours. If the machine be aboard, the client should send the broken parts photo to us first, we’ll reply on you in 2 workdays.
5. We can help the customer to choose the machine’s model according to client’s demand. We’ll do our best to supply service in the course of sale. And we can give technical consultation, driver training and maintenance man training in our factory.
6. We promise support service for the machine till it reject. If the products were broken down over the period of warranty, we’ll support the service without free.
7. Our service department promise answer the phone call every day include holiday.
8. We’ll make record for every machine and tracing them in order to get the latest information of the machine. So we can give the better service for you.
