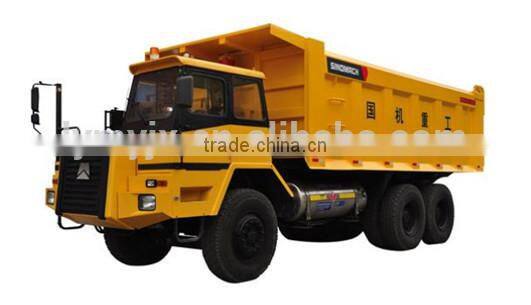

GKP80C off-highway dump truck
Introduction:
GKP80C harbor-using wide-body dump truck is the upgraded and enhanced version of the mature product P80A. It not only inherited the reliability, economy, flexibility and efficiency, but also improved the carrying capacity, driving amenity and operating reliability, furthest satisfied the customers’ requirements for low consumption and high utilization ratio.
Main Features:
- Ergonomics gasbag seat: suspension supporting cab is able to absorb the vibratory automatically.
- Comprehensively upgraded front, middle and rear axle helps to improve the carrying capacity greatly.
- Rubber suspension is maintenance – free.
- Optimized induction and exhaust system fully play their power while reduced the driver’s working intensity.
- Dual circuit service brake: Front, middle and rear axle spring energy accumulation parking brake and engine cut-out, decelerating of the exhaust back lock as auxiliary braking.
- Full metal welded enclosed cab with standard equipment of air conditioner.
- Aluminum alloy fuel tank of large capacity ensures the endurance of the truck.
- With large capacity coach and large section frame of optimized design and modal simulation analysis together ensure the high utilization ratio and low operation cost of the truck.
- We also sell engineering machienry original parts.
Technical Parameters:
Model |
Unit |
GKP80C |
Kerb mass |
kg |
26000 |
Payload |
kg |
80000 |
Overall size(mm) |
mm |
10300x3165x3710 |
Container Size |
mm |
7000 x 2970 x 1750 |
Drive model |
-- |
6 x 4 |
Engine |
-- |
WD615.47 |
Max. Power |
kW |
273 |
Max. Torque |
Nm |
1500(1100~1600rpm) |
Transmission |
-- |
Fuller 9JSD220B |
Tire size |
-- |
14.00-R25 |
Drive axle/Ratio |
-- |
Double reduction /11.125 |
Clutch |
-- |
430mm membrance type |
Max. Travelling speed |
km/h |
68 |
Min. Turning radius |
m |
11.9 |
Ground clearance |
mm |
390 |
Grade ability |
% |
30 |
Electric system |
v |
24 |
Brake form |
-- |
Storage breathe brake |
Damping model |
-- |
Spring steel plate assisting oil type buffer |
