Home > Transportation > Forklifts & Parts > Forklift > 3Ton LPG/Gasoline Forklift With Japan Nissan Engine, Side Shift Option

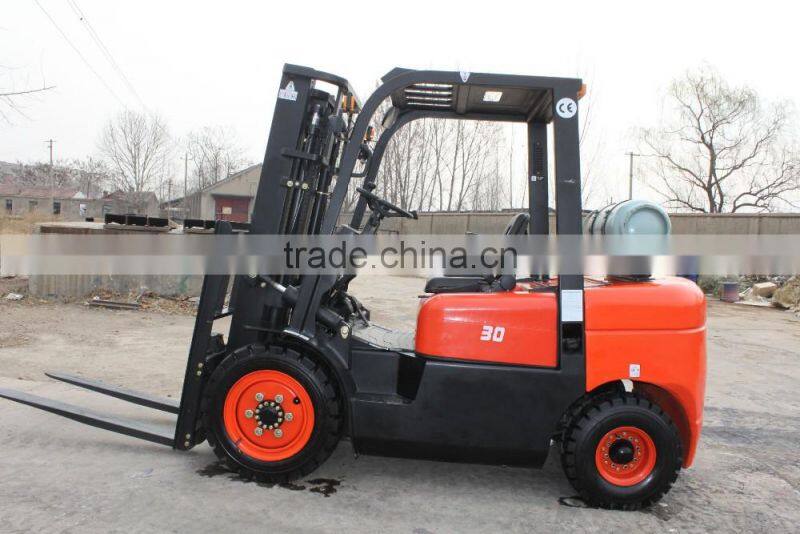

3Ton LPG/Gasoline Forklift With Japan Nissan Engine, Side Shift Option

Name: 3Ton LPG/Gasoline Forklift With Japan Nissan Engine, Side Shift Option
Brand: SHOUGONG
SKU: 140734336
Availability: InStock

Shandong Brother International Trading Co., Ltd. Gold Verified Supplier

5Yrs

US$ 7,000 - 12,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

SHOUGONG

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name SHOUGONG

Model Number CPQYD30FR

Type Powered Pallet Truck

Power Souce LP Gas Engine

Rated Loading Capacity 3000kg

Max. Lifting Height 6000mm

Min. Lifting Height 3000mm

Fork Length 1070

Fork Width 100

Overall Dimensions 3800 1230 2110

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

3Ton LPG/Gasoline Forklift with Japan Nissan Engine or Mitsubishi, side shift option

General	2	Rated capacity	3000kg
	3	Load center	500mm
	4	Power type	Gasoline/LPG
	5	Transmission	Hydraulic automatic
Dimension	6	Lifting height (H1)	3000mm
	8	Min. turning radius	2500mm
	9	Min. under-clearance	135mm
	10	Min. right angle aisle width	2110mm
	11	Overall length (including fork) (A)	3800mm
	12	Overall width (B)	1230mm
	13	Overall height (mast lowered) (H)	2110mm
	14	Overall height (mast raised) (H2)	4270mm
	15	Overall height (overhead guard) (H3)	2110mm
	16	Fork L(A3) W (B3) T (H4)	1070mm100mm40mm
Performance	19	Max driving speed (with/without load)	18/20km/h
	20	Max lifting speed (with load)	400mm/s
	21	Max traction (with/without load)	16/11kn
	22	Gradeability (with/without load)	15/20%
	23	Tilting angles (forward/backward) (α/β)	6/12°
	24	Total weight	4320kg
Engine	25	Engine model	China Gasoline Engine
	26	Power	41kw/2800rpm
	28	Displacement	2.237L
Wheel	30	Front overhang (A1)	451mm
	31	Wheel base (A2)	1640mm
	32	Front tread (B1)	1000mm
	33	Rear tread (B2)	970mm
	34	Front tire	28×9-15
	35	Rear tire	6.50-10
