LPG/GLP Forklift With Nissan Motor

Name: LPG/GLP Forklift With Nissan Motor
Brand: Shougong
SKU: 140734340
Availability: InStock

Shandong Brother International Trading Co., Ltd. Gold Verified Supplier

5Yrs

US$ 5,000 - 20,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Shougong

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO or SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Shougong

Model Number FY35

Type Powered Pallet Truck

Power Souce LP Gas Engine

Rated Loading Capacity 3000kg

Max. Lifting Height 6000mm

Min. Lifting Height 3000mm

Fork Length 1070

Fork Width 125

Overall Dimensions 2700 1225 2090

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

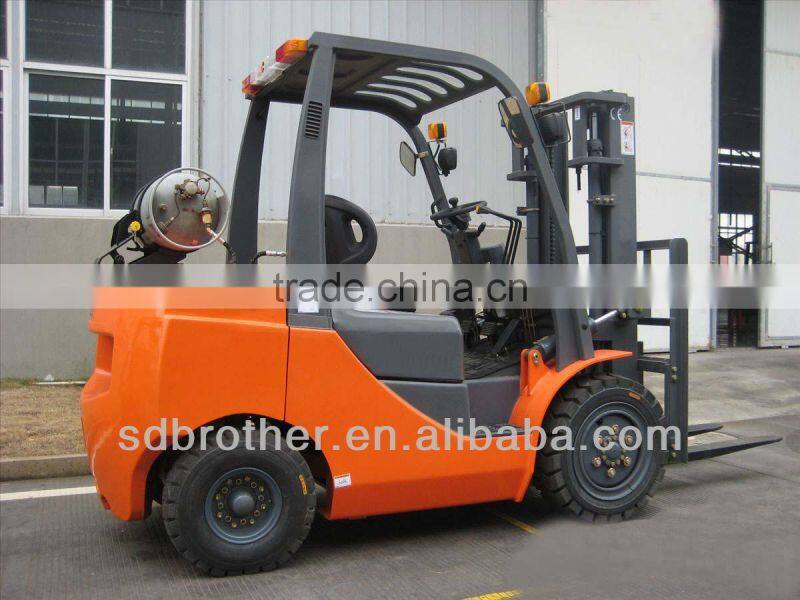

LPG/GLP Forklift with Nissan motor

	1	Model				FY35
	2	Power Type				Gasoline/LPG
	3	Rated Capacity			kg	3500
	4	Load Centre			mm	500
Characteristic&Dimension	5	Lift Height			mm	3000
	6	Free lift height			mm	130
	7	Fork Size		L×W×T	mm	1070×125×50
	8	Mast Tilt Angle		F/R	Deg	6°/12°
	9	Front Overhang (Wheel center to fork face)			mm	500
	10	Rear overhang			mm	500
	11	Ground Clearance(Bottom of mast)			mm	140
	12	Overall Dimension		Length to face of fork(Without fork)	mm	2700
	13			Overall Width	mm	1225
	14			Mast Lowered Height	mm	2045
	15			Mast Extended Height(With backrest)	mm	4150
	16			Overhead Guard Height	mm	2090
	17	Turning Radius (outside)			mm	2415
	18	Min. right angle asisle width			mm	2120
Performance	19	Speed		Travel (No load)	km/h	20
	20			Lifting (Full load)	mm/s	470
	21			Lowering(Full load)	mm/s	450
	22	Max.Drawbar Pull(Full load)			kn	18
	23	Max.Gradeability (No load/Full load)			%	20
Chassis	24	Tire		Front	mm	28×9-15-12PR
	25	Tire		Rear	mm	6.50-10-10PR
	26	Tread		Front	mm	1000
	27	Tread		Rear	mm	980
	28	Wheelbase			mm	1700
	29	Self weight			kg	4390
Power&Transmission	30	Battery	Voltage/Capacity		V/Ah	12/90
	31	Engine	Model			K25
	32		Manufacture			NISSAN
	33		Rated output/r.p.m.		kw	44/2500
	34		Rated torque/r.p.m.		N·m	186.2/1600
	35		No.of Cylinder			4
	36		Bore×Stroke		mm	92×93
	37		Displacement		cc	2472
	38		Fuel Tank Capacity		L	70
	39	Transmission	Type			Powershift
	40	Transmission	Stage	FWD/RVS		1/1
