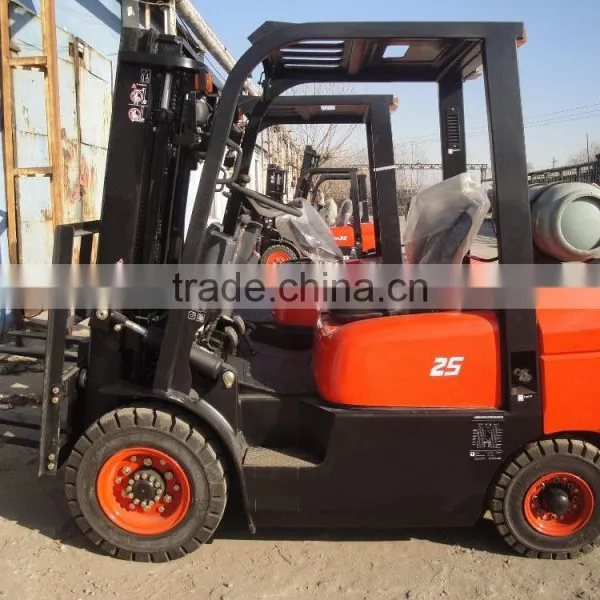

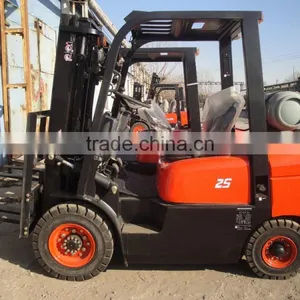

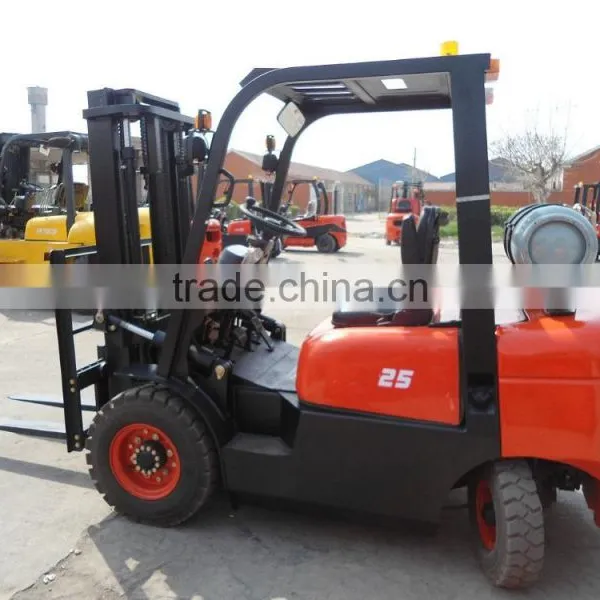

2.5Ton LPG/Gasoline Forklift With Japan Nissan Engine, Side Shift Option

Name: 2.5Ton LPG/Gasoline Forklift With Japan Nissan Engine, Side Shift Option
Brand: Shougong
SKU: 140734338
Availability: InStock

Shandong Brother International Trading Co., Ltd. Gold Verified Supplier

5Yrs

US$ 7,000 - 12,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Shougong

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name Shougong

Model Number CPQYD25FR

Type Powered Pallet Truck

Power Souce LP Gas Engine

Rated Loading Capacity 2500kg

Max. Lifting Height 6000mm

Min. Lifting Height 3000mm

Fork Length 1070

Fork Width 100

Overall Dimensions 3605 1160 2095

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

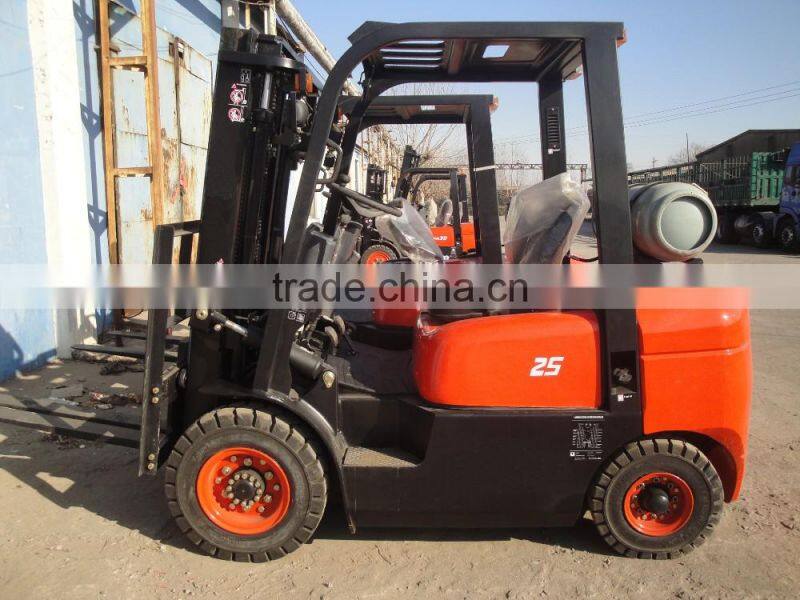

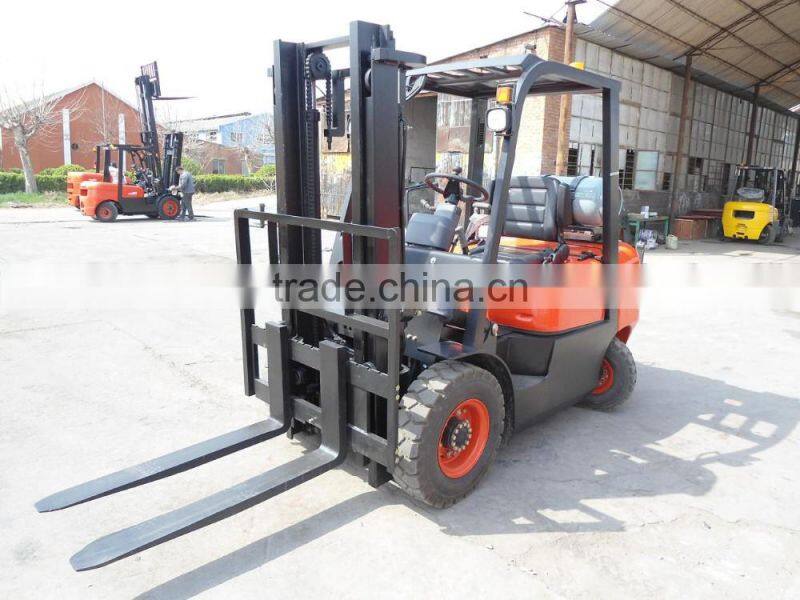

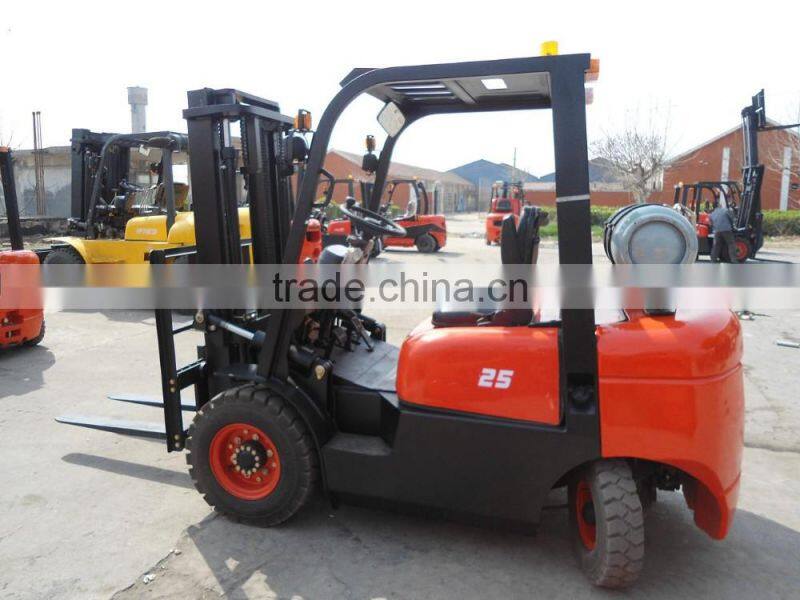

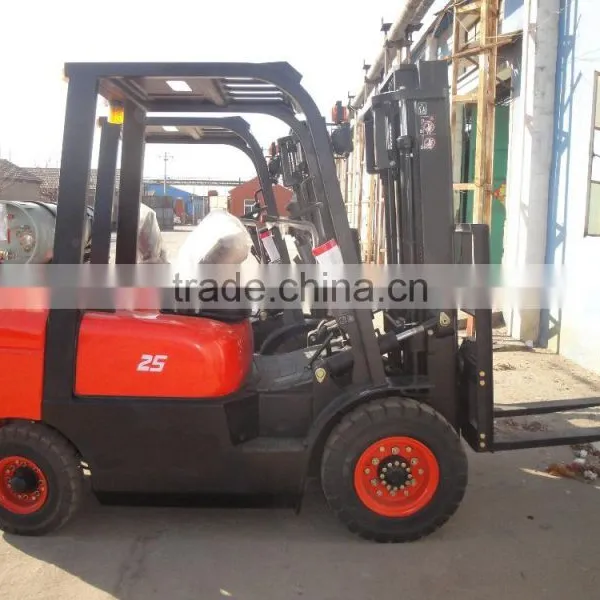

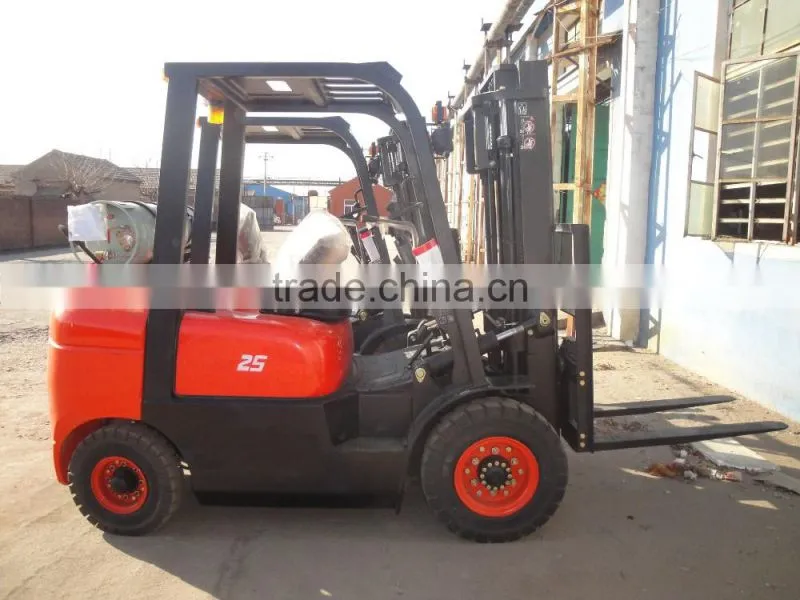

2.5Ton LPG/Gasoline Forklift with Japan Nissan Engine, side shift option

General	2	Rated capacity	2500kg
	3	Load center	500mm
	4	Power type	Gasoline/LPG
	5	Transmission	Hydraulic automatic
Dimension	6	Lifting height (H1)	3000mm
	8	Min. turning radius	2450mm
	9	Min. under-clearance	110mm
	10	Min. right angle aisle width	2050mm
	11	Overall length (including fork) (A)	3605mm
	12	Overall width (B)	1160mm
	13	Overall height (mast lowered) (H)	2095mm
	14	Overall height (mast raised) (H2)	4080mm
	15	Overall height (overhead guard) (H3)	2095mm
	16	Fork L(A3) W (B3) T (H4)	1070mm100mm40mm
Performance	19	Max driving speed (with/without load)	17/19km/h
	20	Max lifting speed (with load)	400mm/s
	21	Max traction (with/without load)	14/9kn
	22	Gradeability (with/without load)	15/20%
	23	Tilting angles (forward/backward) (α/β)	6/12°
	24	Total weight	3620kg
Engine	25	Engine model	China Gasoline Engine
	26	Power	41kw/2800rpm
	28	Displacement	2.237L
Wheel	30	Front overhang (A1)	451mm
	31	Wheel base (A2)	1640mm
	32	Front tread (B1)	970mm
	33	Rear tread (B2)	970mm
	34	Front tire	7.00-12
	35	Rear tire	6.00-9
