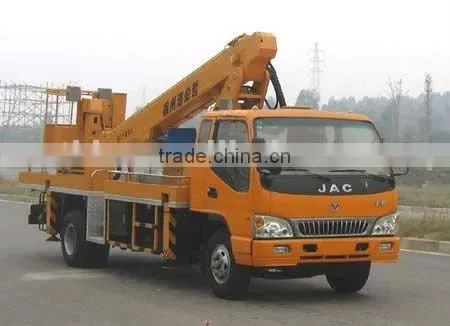

Hydrualic Rised 25m JAC Aerial Working Platform Truck

Main features:

 Fully imported upper hydraulic rise

 Double articulated boom and telescopic boom, compact structure, high working efficiency, wide outreach

Ground and basket electro-hydraulic control

 automatic control, equipped with working outreach limiting device, safe and reliable operation

 Design with especially saving energy, engine automatically being suitable speed during it being idle speed

 Ground and basket vehicle motor start and stop function

PLATFORM INFORAMTION

Model CLQ5081JGK

Chassis model HFC1082KR1D

Rated load of platform 200kg

Max. working height 25m

Max. outreach 12.5m

Sewing speed 0-2r/min

Max. run speed 90km/h

Number of people 3

Size 7730mm×2200mm×3300mm

CHASSIS INFORMATION

Approach /Departure Angle(°) 24/12.5

F/R Suspension(mm) 1085/2355

Wheelbase(mm) 4550

Axle 2

Axle Load (mm) 3160/5235

Spring Leaf 9/8+7

Tyres 6

Tyre Specification 8.25-16

Drive System 4*2

Gross/ Ratio /Kerb Mass(Kg) 8395/190/8200

Front/Rear Truck 1665/1620

Other Back extend 360mm

Brake system Pneumatic, exhaust brake

ENGINE

Model YZ4105ZLQ

Manufacturer Yangzhou Diesel Engine Co.,Ltd

Fuel diesel

Speed(km/h) 98

Displacement (Ml) 4087

Power(Kw) 90

Emission Standard EU3

Torque(N•m)/Rpm 650/1400

Stroke Type Turbocharger intercooler
