Help Center3.5ton Telescopic Boom Forklift
Related Products
Specifications
American Cummins engineLoad capacity 3.5ton
Lifting height 6 meters
Luxury operation cabin
Product Information

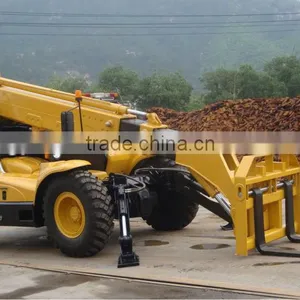

SCZ35-4 Type Telescopic Forklift Loader, Which uses the four-wheel drive, the rigid suspension; The fluid mechanical drive, the hydraulic power changes with the hydraulic brake, the rear wheel changes. The operation installment is two quadrangle telescopic handle, has fork which fix could be side to move . could use to pull in&out the box on the container, also for loading and unloading. Cargo stowing and short-haul handling.
This type could be operated under many kinds of working conditions, is excellent equipment for craning, transporting, loading and unloading on Industry and Mining , Enterprise, Construction, Materials, Harbor, Municipal Engineering. Also has the scoop, the hook, the suspend arm and so on each kind is differently for the customer's choice to install .Its loading and unloading and the cross-country performance is highly the universal forklift is unable to compare.
| Description | Unit | Specifications | |
| Rated load | kg | 3500 | |
| Lifting load(Max.extend length) | kg | 1250 | |
| Max.lifting height of basic arm | mm | 4350 | |
| Max.lifting height of full extend arm | mm | 6020 | |
| Max.traveling speed | km/h | 30 | |
| Min.Ground clearance | mm | 350 | |
| Min.tuming Diaweter(center of outer wheel) | mm | 15500 | |
| Gradeability | % | 30 | |
| Deadweight | kg | 8000 | |
| Overall dimensiong(L*W*H) | mm | 6060*2270*2650 | |
| Engine(Dongfeng Cummins) | Type | 4BT3.9-C80 | |
| Rated power | kw | 60 | |
| Rated speed | r/mini | 2000 | |
| Tyre | Front wheel | 16/70-24 | |
| Rear wheel | 10.00-20-14 | ||
