Specifications
1. America Curtis electric controller2. Reach distance 550mm
3.Shimadzu hydraulic system
4.Foldable platform

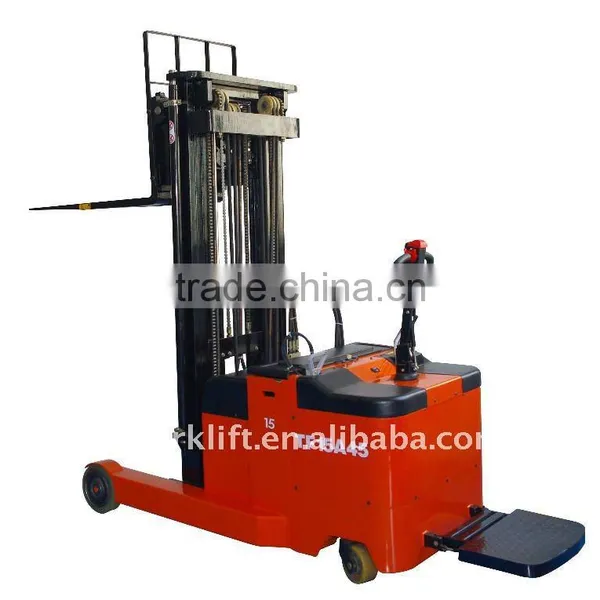

Specification of TB-A model electric stacker
Features
It can lift the forkleg, then enhances the ground clearance.
Double fork design, fork and forkleg can also works, each lift a pallet.
Model | TB10A-16 | TB10A-30 | TB15A-25 |
TB10A-25 | TB15A-16 | ||
Capacity | 1000 1000 | 1000 1500 | 1500 |
Load center | 600 | 600 | 600 |
Power type | Electromotive | Electromotive | Electromotive |
Remote control | Vertical | Vertical | Vertical |
Weight | ∼960 ∼890 | ∼945 | ∼945 |
Driving wheel mm | 215X 75 | 215X 75 | 215X 75 |
Load wheel | 80X70 | 80X70 | 80X70 |
Balance wheel | 125X50 | 125X50 | 125X50 |
Loweted fork height | 90 | 90 | 90 |
Lifting height net | 2130 1790 | 2040 2130 | 1790 |
Lifting height | 1600 2500 | 3000 1600 | 2500 |
Max extended height | 2040 2900 | 3400 2040 | 2900 |
Forks lifting height | 200 | 200 | 200 |
Pedal lengh | 460 | 460 | 460 |
Overall length | 800 | 800 | 800 |
Overall length | 1950 | 1950 | 1950 |
Fork adjust width | 800 | 800 | 800 |
fork size | 670 | 670 | 670 |
Front wheel to forks tip | 320 | 320 | 320 |
Fork size | 1150X200 | 1150X200 | 1150X200 |
Turning radius | 1700 | 1700 | 1700 |
Walking speed | 4.6∼5.6 | 4.6∼5.6 | 4.6∼5.6 |
Gradeability | 8 | 8 | 8 |
Brake | Electromagnetic | Electromagnetic | Electromagnetic |
Driving motor | 1.2 | 1.2 | 1.2 |
lifting motor | 2 | 2 | 2 |
Battery capacity | 24V/210Ah | 24V/210Ah | 24 |
