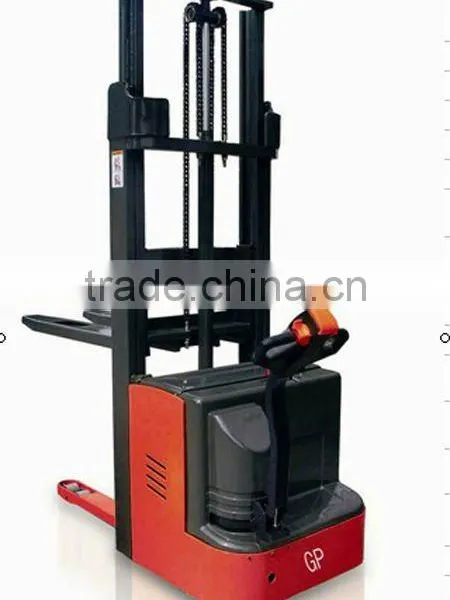

24v Full Electric Pallet Stacker
US$ 3,000 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
GP
Model Number:
TB-C
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
GP
Model Number
TB-C
After-sales Service Provided
Overseas third-party support available
Specifications
narrow classis design, small battery compartment and tiller arm steering with 180 Degree range give this compact stacker excelleProducts name: full electric pallet stacker(walking)(24v)
1.walking type
2.the brake override ,feture on stackers allows travel(creep speed )with the handle in a near vertical position while staying within the geometry of the truck. This provides exceptional manoeuvrability in extrely restricted areas
3. a narrow classis design, small battery compartment and tiller arm steering with 180° range give this compact stacker excellet manoeuvrability, even in limited space
4.primarily used for low -intensity stacking and is designed for pallet transport and stacking in warehouses.
| Description | Full Electric Pallet Stacker | |||
| Model | TB15C-16 | TB15C-25 | TB15C-30 | |
| Load capacity | Kg | 1500 | 1500 | 1500 |
| Load center | mm | 500 | 500 | 500 |
| Max. lifting height | mm | 1600 | 2500 | 3000 |
| Free lift | mm | 0 | 0 | 0 |
| Wheel type | Polyurethane solid tire | |||
| Fork size (LxW) | mm | 1100*190 | 1100*190 | 1100*190 |
| Width of forks | mm | 565 | 565 | 565 |
| Overall length | mm | 2000 | 2000 | 2100 |
| Overall width | mm | 800 | 800 | 800 |
| Overall height mast closed | mm | 2090 | 1790 | 1970 |
| Overall height fork raised(with backrest) | mm | 2090 | 2900 | 3440 |
| Outside turning radius | mm | 1600 | 1600 | 1600 |
| Front wheel to fork tip | mm | 470 | 470 | 470 |
| Max. walking speeds | km/h | 4.0~5.0 | 4.0~5.0 | 4.0~5.0 |
| Grade abitity% | 5 | 5 | 5 | |
| Total weight( with battery) | Kg | ~730 | ~730 | ~750 |
| Driving wheel | mm | Φ215*75 | Φ215*75 | Φ215*75 |
| Front wheel | mm | Φ80*70 | Φ80*70 | Φ80*70 |
| Balance wheel | mm | Φ150*50 | Φ150*50 | Φ150*50 |
| Battery | V/Ah | 24/210 | 24/210 | 24/210 |
| Charger | V/A | 24/30 | 24/30 | 24/30 |
| Driving motor | Kw | 1.1 | 1.1 | 1.1 |
| Lifting motor | Kw | 2 | 2 | 2 |
