Specifications
1. ISO and CE certificates2. America Curtis electric stacker

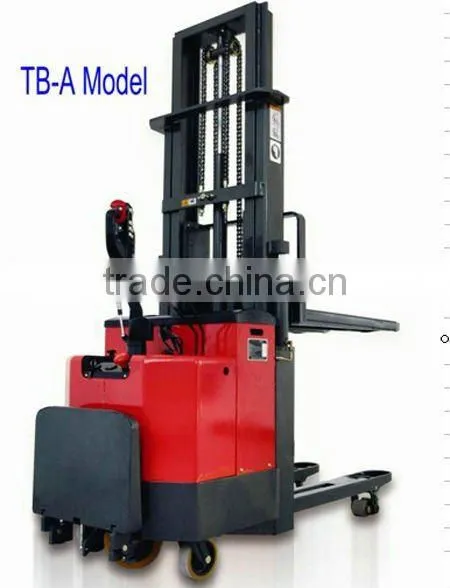

Specification of TB-A model electric stacker
Features
1. Fork leg can been lifted , then enhances the ground clearance.
2.Double fork design, fork and forkleg can also works, each lift a pallet.
3.single face pallet
4.have elevating support arms and are thus suitable for use on ramps,gradients or in general over uneven surfaces
5.have possibility to handle two separate loads, one on the forks and one on the support arms , in insentive operation
Model | TB10A-16 | TB10A-30 | TB15A-25 |
TB10A-25 | TB15A-16 | ||
Capacity | 1000 1000 | 1000 1500 | 1500 |
Load center | 600 | 600 | 600 |
Power type | Electromotive | Electromotive | Electromotive |
Remote control | Vertical | Vertical | Vertical |
Weight | ∼960 ∼890 | ∼945 | ∼945 |
Driving wheel mm | 215X 75 | 215X 75 | 215X 75 |
Load wheel | 80X70 | 80X70 | 80X70 |
Balance wheel | 125X50 | 125X50 | 125X50 |
Loweted fork height | 90 | 90 | 90 |
Lifting height net | 2130 1790 | 2040 2130 | 1790 |
Lifting height | 1600 2500 | 3000 1600 | 2500 |
Max extended height | 2040 2900 | 3400 2040 | 2900 |
Forks lifting height | 200 | 200 | 200 |
Pedal lengh | 460 | 460 | 460 |
Overall length | 800 | 800 | 800 |
Overall length | 1950 | 1950 | 1950 |
Fork adjust width | 800 | 800 | 800 |
fork size | 670 | 670 | 670 |
Front wheel to forks tip | 320 | 320 | 320 |
Fork size | 1150X200 | 1150X200 | 1150X200 |
Turning radius | 1700 | 1700 | 1700 |
Walking speed | 4.6∼5.6 | 4.6∼5.6 | 4.6∼5.6 |
Gradeability | 8 | 8 | 8 |
Brake | Electromagnetic | Electromagnetic | Electromagnetic |
Driving motor | 1.2 | 1.2 | 1.2 |
lifting motor | 2 | 2 | 2 |
Battery capacity | 24V/210Ah | 24V/210Ah | 24 |
