Home > Transportation > Forklifts & Parts > Forklift > 2ton Narrow Legs AC Powered Electric Pallet Truck ERE220

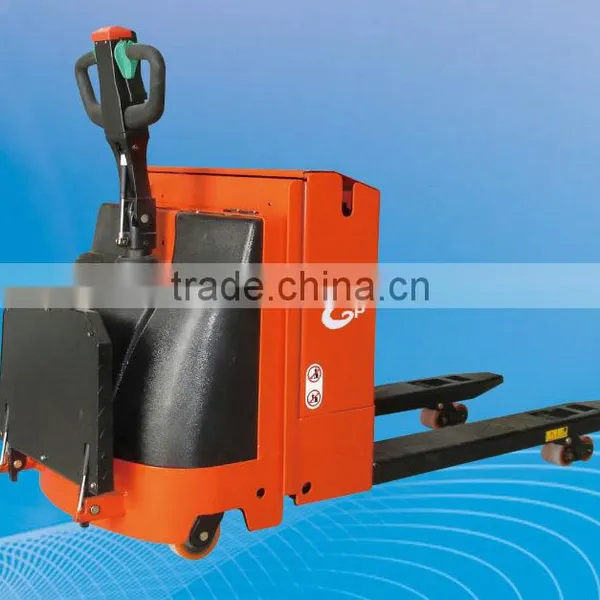

2ton Narrow Legs AC Powered Electric Pallet Truck ERE220

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name GP

Model Number ERE220

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 2000kg

Max. Lifting Height 205mm

Min. Lifting Height 85mm

Fork Length 1150/1200mm

Fork Width 185mm

	Model		EJE/ERE220 - EJE/ERE225
Feature	Load capacity	kg	2000/2500
	Load center	mm	600
	Wheelbase	mm	1480
	Operating type		Walk/ Stand on
Wheels	Wheel type		PU
	Wheel quantity Driving/Balance/Bearing wheel		1/2/4
	Driving wheel size	mm	Φ248×75
	Balance wheel size	mm	Φ80×80 Double wheels
	Bearing wheel size	mm	Φ115×55
Dimension	Min. fork lowered height	mm	85
	Max. fork lifting height	mm	205
	Max. lifting height	mm	120
	Overall fork width	mm	540/600/685/1070
	Fork length	mm	1150/1200
	Fork width	mm	185
	Fork thickness	mm	55
	Overall length (pedal folded/unfolded)	mm	1900/2305
	Overall width	mm	735
	Overall height (with/without handle)	mm	1455/900
	Min. turning radius (pedal folded/unfolded)	mm	1735/2140
	Min. aisle width for pallets 1000×1200	mm	2090/2468
	Min. aisle width for pallets 800×1200	mm	2060/2451
Performance	Travel speed laden/unladen	km/h	5.7/6
	Travel speed laden/unladen	mm/s	30/45
	Decline speed laden/unladen	mm/s	45/30
	Gradeability laden/unladen	%	6/8
Electric configuration	Drive motor power	kw	AC1.5/2.2
	Lift motor power	kw	DC2.0
	Control system		DC0.15
	Standard battery voltage/capacity	V/Ah	24/210-240
	Brake		Electromagnetic/Regenerative
	Controller		CURTIS
Weight	Battery weight	kg	200-230
Weight	Service weight with battery	kg	790-820
