Home > Products > Pallet truck > reach stacker DC Power, Lifting height 3m, ERC115
reach stacker DC Power, Lifting height 3m, ERC115
USD $1 - $200
/ Unit
1 Unit(Min.Order)
- 300 Unit / Units per Month
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | GP | Model Number | ERC115 | |
| Dimension(L*W*H) | 1940*850*1465mm | Certification | CE, SGS | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
reach stacker1. Lifting height 3m
2. Low noise, no pollution
3.Curtis , Itaian ZAPI/SME cotroller
reach stacker DC Power for materials handling, Lifting height 1.6m-4.5m,with nice design.
Advantge of electric stacker
1.Conforms To The Standards Of En1726-1:1999and En1175-1:1998
2.High Stability And Flexible Operation
3.Smooth stepless speed control from CURTIS
4.Low Noise, No Pollution, And High Reliability
5. Power unit and drive wheel made in Europe
6. Large Capacity Battery Makes The Stacker Work Longer
7.Top-Quality Control System - CURTIS from USA or ZAPI / SME from Italia
Specifications
FULL ELECTRIC STACKER | Model | |||||||
Item | Specification | Unit | ERC112 | ERC115 | ERC116 | ERC118 | ERC120 | |
1 | General | Rated capacity | Kg | 1200 | 1500 | 1600 | 1800 | 2000 |
2 | Load center | mm | 600 | 600 | 600 | 600 | 600 | |
3 | Drive type | Standed | ||||||
4 | Motor brake | Electromagnetic | ||||||
5 | Load distance (centerline of front axle to front face of forks) | 716 | 716 | 716 | 716 | 716 | ||
6 | Battery weight | Kg | 200 | 200 | 200 | 280 | 280 | |
7 | Self weight | Kg | 1080 | 1105 | 1130 | 1250 | 1280 | |
8 | Full Load per Axle - Driving side / bearing side | 865/215 | 885/220 | 905/225 | 1000/250 | 1025/255 | ||
9 | Empty Load per Axle - Driving side / bearing side | Kg | 970/1310 | 1110/1495 | 1095/1635 | 1300/1750 | 1400/1880 | |
10 | Dimensions | Lifting Height (standard) | mm | 3000 | ||||
11 | Fork min. ground clearance | mm | 85 | |||||
12 | Adjust width of fork (standard) | mm | 570 | |||||
13 | Fork size | mm | 60/180/1150 | |||||
14 | Minimum ground clearance | mm | 25 | |||||
15 | Overall length | mm | 1940 | 1940 | 1940 | 1970 | 1970 | |
16 | Overall width | mm | 850 | 1050 | ||||
17 | Overall height (including handle ) | mm | 1465 | 1465 | 1465 | 1465 | 1465 | |
18 | Bodywork height | mm | 845 | 845 | 845 | 845 | 845 | |
19 | Overall height mast raised | mm | 3530 | 3530 | 3530 | 3530 | 3530 | |
20 | Overall height mast lowered | mm | 2055 | 2055 | 2055 | 2055 | 2055 | |
21 | Front wheel tread | mm | 390 | 390 | 390 | 390 | 390 | |
22 | Supporting wheel tread | mm | 708 | 708 | 708 | 800 | 800 | |
23 | Minimum turning radius | mm | 1630 | 1630 | 1630 | 1630 | 1630 | |
24 | Stacking right angle aisle width | mm | 2236 | 2236 | 2236 | 2270 | 2270 | |
25 | Perfor-mance | Max. driving speed full/empty | Km/h | 5/6 | 5/6 | 5/6 | 5/5.8 | 5/5.5 |
26 | Max. lifting speed full/empty | mm/s | 110/130 | 95/130 | 90/130 | 80/120 | 80/120 | |
27 | Max. declining speed full/empty | mm/s | 120/110 | 110/100 | 110/90 | 80/90 | 80/90 | |
28 | Grade ability full/empty | % | 5/8 | 5/8 | 5/8 | 5/8 | 5/8 | |
29 | Wheel | Wheels material | Polyurethane | |||||
30 | Wheel number (front/rear) | 4/3 | ||||||
31 | Drive wheel (mm) | φ252x87 | φ252x87 | φ252x87 | φ252x87 | φ252x87 | ||
32 | Load wheel (mm) | φ80x70 | φ80x70 | φ80x70 | φ80x70 | φ80x70 | ||
33 | Balance wheel (mm) | φ150x48 | φ150x48 | φ150x48 | φ150x48 | φ150x48 | ||
34 | Wheelbase | 1295 | 1295 | 1295 | 1295 | 1295 | ||
35 | Power and Control | Travel motor | KW | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
36 | Lift motor | KW | 2.2 | 3 | 3 | 3 | 3 | |
37 | Voltage | V | 24 | 24 | 24 | 24 | 24 | |
38 | Battery capacity | Ah | 210 | 210 | 210 | 280 | 280 | |
39 | Control system | CURTIS / ZAPI / SME | ||||||
40 | Sound level at the driver's ear acc. to EN12053 | dB/(A) | 67 | |||||

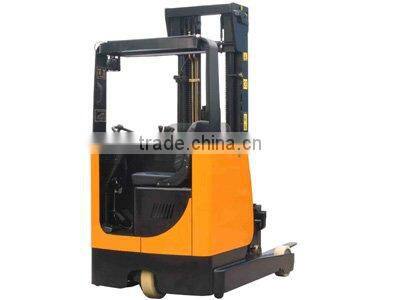

Picture:
