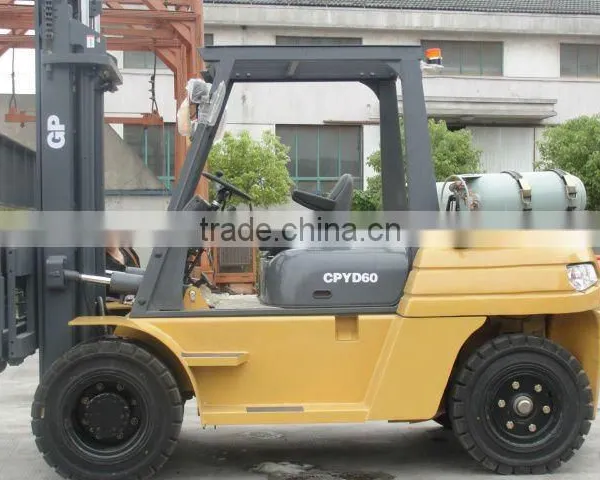

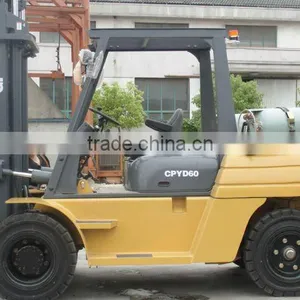

6T LPG Forklift With GM V6 Gas Engine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name GP

Model Number CPYD60

Type Powered Pallet Truck

Power Souce LP Gas Engine

Rated Loading Capacity 6000KGS

Max. Lifting Height 6000mm

Min. Lifting Height 2500mm

Fork Length 1220mm

Certification ISO&CE

After-sales Service Provided Overseas service center available

Specifications

GM 4.3 V6 engine
Double fule tank
Electric shift

5.0T to 7.0T LPG Forklift

1	Model			CPYD50	CPYD60	CPYD70
2	Power type			LPG	LPG	LPG
3	Rated capacity		kg	5000	6000	7000
4	Load center		mm	600	600	600
5	Lift height		mm	3000	3000	3000
6	Fork size	LxWxT	mm	1220x150x50	1220x150x60	1070x125x50
7	Mast tilt angle F/R		º	6/12	6/12	6/12
8	Turning radius		mm	3300	3300	3300
9	Ground clearance		mm	170	170	170
10	Overhead guard height		mm	2450	2450	2450
11	Fork overhang		mm	595	595	595
12	Max driving speeds (with load)		km/h	24	24	24
13	Max lifting speeds (with load)		mm/s	300	300	300
14	Max grade ability (with load)		%	20	20	20
15	Overall length (without forks)		mm	3540	3540	3540
16	Overall width		mm	1910	1910	1910
17	Overall height fork raised (with backrest)		mm	4380	4380	4380
18	Mast height		mm	2732	2732	2732
19	Front tyres			8.25-15-14PR	8.25-15-14PR	8.25-15-14PR
20	Rear tyres			8.25-15-14PR	8.25-15-14PR	8.25-15-14PR
21	Wheelbase		mm	2300	2300	2300
22	Tread	Front/ Rear	mm	1400/1534	1400/1534	1400/1534
23	Self Weight		kg	7900	8160	8400
24	Battery Voltage/Capacity		V/Ah	24/75?á2	24/75?á2	24/75?á2
