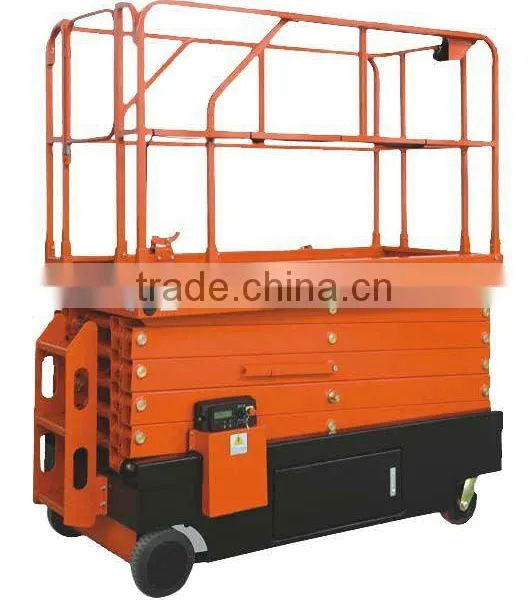

Whole-electromotion Scissor Type Aloft Lifting Platform

Shanghai Gather Power Industry Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Model Number:

FSJY

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name GP

Model Number FSJY

Specifications

1.Electronic system imported directly from PG United Kingdom.
2. Battery imported from USA.

FSJY
Whole-electromotion Scissor type Aloft lifting platform
1) Advantage
FSJY Full electric work platform, both driving and lifting are powered by electricity, easy-operation design to assure all operation could be made by only one person. This model sells very well and wins a high reputation all over the world. High quality imported components to keep its very perfect performance. 1.Electronic system imported directly from PG United Kingdom.2. Battery imported from USA. 3. Driving wheels and balance wheels assembly to keep the safety.4.Spraying plastics appearance . 5. 2-3 days working time of one time charging. 6. With safety-falling equipment.
2)Detailed specification

FSJY Whole-electromotion Scissor Type Aloft Lifting Platform			Model
Item	Specification	Unit	FSJY0.3-6	FSJY0.25-7.4
1	Max platform height	mm	6000	7400
2	Max machine height	mm	7100	8500
3	Min platform height	mm	1010	1130
4	Ground clearance	mm	90
5	Lift rated capacity	kg	300	250
6	Platform extend capacity	kg	100	80
7	Platform size	mm	1870*730
8	Platform extend length	mm	900
9	Max drive speed(platform stowed)	Km/h	3~4
10	Max drive speed(platform elevated)	km/h	0.6-1
11	Min turning radius	mm	1900
12	Max travel grade	%	10%-15%
13	Caster size	in	8
14	Driving motor	V/kw	2*24/0.5
15	Lifting motor	V/kw	24/2.2
16	Aneroid battery	V/Ah	2*12/150
17	Charger	V/A	24/15
18	Pothole protection system	N/A	Auto Mechanism
19	Overall length	mm	2030
20	Overall width	mm	900
21	Overall height	mm	2120	2240
22	Overall weight	kg	1300	1400
