Half-electric Scissor Type Aloft Lifting Platform
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
GP
Model Number:
FSJY
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or China any port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
GP
Model Number
FSJY
Specifications
1.Electronic system imported directly from PG United Kingdom.2. Battery imported from USA.

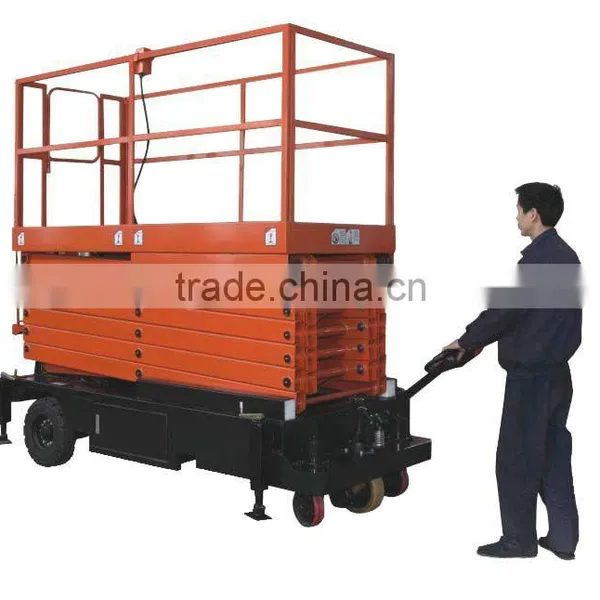

SJY Work platform, scissors movement design to keep stable lifting and lowering, with its high capacity and large working place, could be mainly used in construction area, maintenance for large warehouse, maintenance for street lamp and so on. Moreover, because of its big solid tire, it could work perfectly in rough ground.
1. AC,DC motor and driving systems for option. 2. With safety-falling equipment. 3. Big solid tire.
| 2)Detailed specification | |||||||
| SJY Scissor Type Elevating Platform | Model | ||||||
| Item | Specification | Unit | SJY0.5-6 | FSJY0.5-7.5 | SJY0.5-9 | SJY0.5-11 | |
| 1 | Max platform height | mm | 6000 | 7500 | 9000 | 11000 | |
| 2 | Min platform height | mm | 1080 | 1200 | 1360 | 1480 | |
| 3 | Lift rated capacity | kg | 500 | ||||
| 4 | Platform size | mm | 1780*840*1100 | 2180*1000*1100 | 2200*1100*1100 | ||
| 5 | The developed dimension of legs | mm | 2300*1700 | 2700*2200 | 3100*2200 | ||
| 6 | Elevating time | s | 59 | 77 | |||
| 7 | Voltage | V | 380 | ||||
| 8 | Electromotor power | kw | 2.2 | ||||
| 9 | Overall length | mm | 1820 | 2270 | |||
| 10 | Overall width | mm | 1060 | 1250 | 1450 | ||
| 11 | Overall height | mm | 1350 | 1450 | 1650 | 1800 | |
| 12 | Overall weight | kg | 950 | 1350 | 1600 | 1800 | |
