Specifications

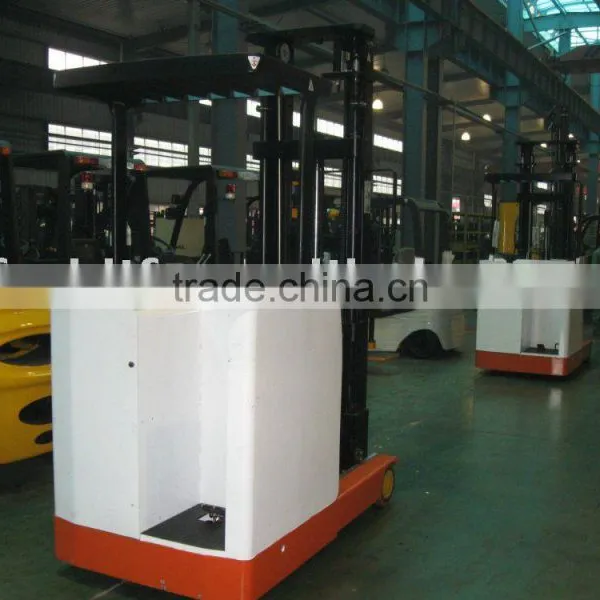

electric reach truckrated capacity:1.5T
Lift height: 3000mm
Model | TF10A-30 | TF15A-30 | TF20A-30 | TF25A-30 |
Load capacity Kg | 1000 | 1500 | 2000 | 2500 |
Load center mm | 500 | 500 | 500 | 500 |
Lifting height mm | 3000 | 3000 | 3000 | 3000 |
Lifting speed(Load) mm/s | 285 | 255 | 240 | 220 |
Driving speed km/h | 8.5 | 7.5 | 9.4 | 9 |
Forwarding length mm | 560 | 560 | 680 | 680 |
Gradeability % | ≤10 | ≤10 | ≤10 | ≤10 |
Fork tilt ° | 3/5 | 3/5 | 3/5 | 3/5 |
Turning radius mm | 1610 | 1610 | 1965 | 1965 |
Overall length(Outstretch) mm | 2260 | 2260 | 2500 | 2500 |
Overall width mm | 1090 | 1090 | 1250 | 1250 |
Overhead guard height mm | 2280 | 2280 | 2280 | 2280 |
Mast height | 2100 | 2100 | 2100 | 2100 |
Max lift mast height | 3900 | 3900 | 3950 | 3950 |
Wheelbase mm | 1350 | 1350 | 1700 | 1700 |
Adjust width of fork mm | 200-740 | 250-740 | 250-812 | 250-820 |
Fork size mm | 1070×100×35 | 1070×100×35 | 1070×125×40 | 1070×125×40 |
Total weight Kg | 2000 | 2300 | 3000 | 3000 |
Front wheel mm (Dia.) | 267×114 | 267×114 | 267×114 | 267×114 |
Driving wheel mm (Dia.) | 343×114 | 343×114 | 343×114 | 343×114 |
Balance wheel mm (Dia.) | 180×76 | 180×76 | 180×76 | 180×76 |
Driving motor KW | 4.0 | 4.0 | 5.0 | 5.0 |
Lifting motor KW | 6.3 | 6.3 | 7.5 | 7.5 |
Battery | 48/300 | 48/300 | 48/400 | 48/400 |
Charger A | 45 | 45 | 60 | 60 |
