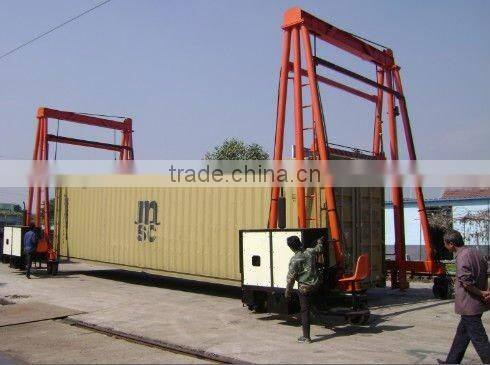

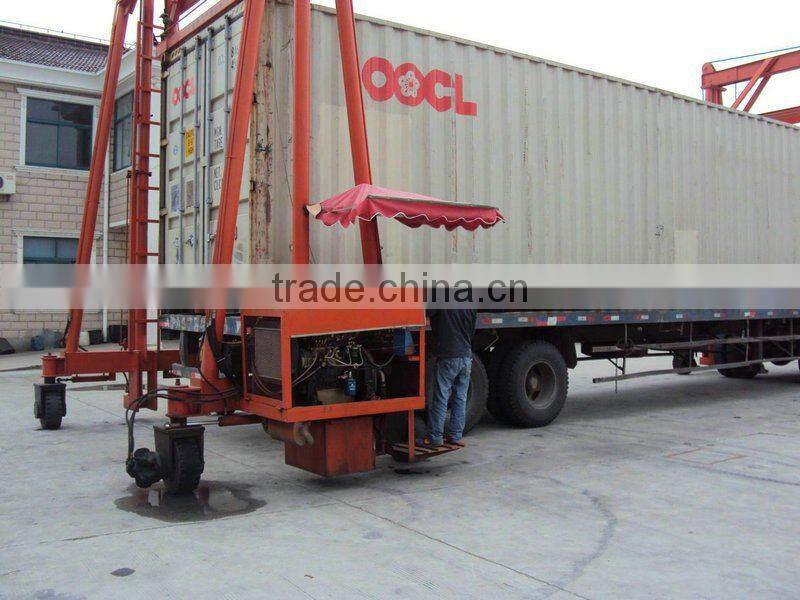

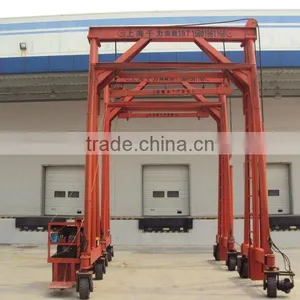

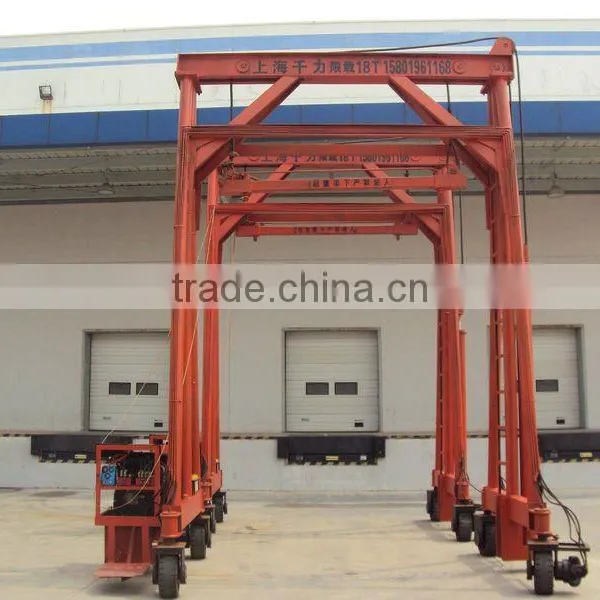

Container Crane

Shanghai Gather Power Industry Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

open warehouse or rail along

Rated Loading Capacity:

36TON

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application open warehouse or rail along

Rated Loading Capacity 36TON

Max. Lifting Height 4700mm

Place of Origin Shanghai, China

Brand Name GP

Model Number BSJD360T

Certification CE, ISO9001 & UL,SGS

After-sales Service Provided Overseas service center available

Specifications

1,High efficiency and perfect Operability
2,Wide application
3, Rainproof antirust protection
4.Professional designed

Items	Model	Model
Items	BSJD360T	BSJD400T
Load capacity	36T	40T
Max.lifting height	4700mm	4700mm
Max.lifting speed	0.065m/s	0.065m/s
Engine type	NZ3850	490BPG
Engine power/rotate speed	45.6/2200KW/r/min	45.6/2200KW/r/min
Max.torque/rotate speed	70.2/1960~2240[Nm/r min]	70.2/1960~2240[Nm/r min]
Max.travel speed	7.5km/h	7.5km/h
Diameter of lifting cylinder	203mm	203mm
Pressure of lifting system	10Mpa	10Mpa
Diameter of steering cylinder	75mm	75mm
Min.turning radius	4500mm	4500mm
Pressure of steering system	15Mpa	15Mpa
Torque of hydraulic motor	949Nm	949Nm
Rotate speed of hydraulic motor	6~400r/min	6~400r/min
Diameter of drive wheel	450mm	450mm
Min.under-clearance	80	80
Suitable carriage height	1.45m/1.75m	1.45m/1.75m
Overall length	4900mm	4900mm
Overall width	2500mm	2500mm
Overall height	6600mm	6600mm
Total weight	7.5T	8.0T
