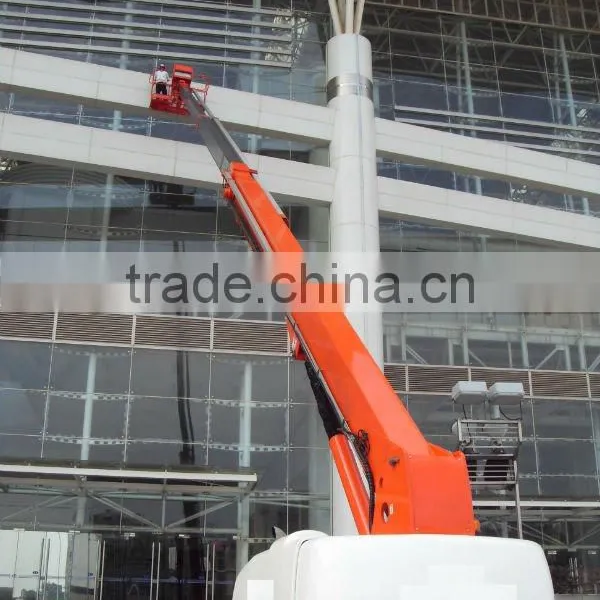

Lifting Height 36m Telescopic Boom Lift

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Model Number:

GTBZ36/38 (lifting height36-38m)

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name GP

Model Number GTBZ36/38 (lifting height36-38m)

After-sales Service Provided Overseas third-party support available

Specifications

Configuration for auto-control, against dangersfromcrashing,overload,tip-over,ect.
Dual-sensor adopted for necessary length.

Item	Measurement	Item	Measurement
Dimensions		Productivity
Overall length(stowed)	12.5M (41ft)	Platform height max.	36.5M (120ft)
Overall width(stowed)	2.49M (8ft)	Working height max.	38.5M (126ft)
Overall height(stowed)	3.08M (10ft)	Horizontal reach max.	22M (72ft)
Ground clearance	0.43M (1.4ft)	Turntable rotation	360°continuous
Wheelbase	3.66M (12ft)	Platform rotation	160°
Overall weight	20100kg (4WD)	Platform Load capacity	340kg (non-restricted)
Overall weight	20100kg (4WD)	Platform Load capacity	480kg (restricted)
Platform Size (LWH)	2.440.911.1M (8ft3ft3.6ft)	Grade ability	40% (4wd)
Platform levelling	Automatic	Turning radius(outside)	5.57M (18ft)
Tire specification	12.00-20	Turning radius(inside)	2.56M (8ft)
Tire type	Solid	Turntable tailswing	1.82M (6ft)
Power		Max. Driving Speed	4.4KM/H
Hydraulic tank vol.	200L	Driving Speed (stowed)	0~4.4km/h
Hydraulic system vol. (inc. the tank)	300L	Driving Speed (extended)	0~1.1km/h
Fuel tank vol.	150L	Max allowable wind force	12.5m/s
Control voltage	24V	Max allowable slope	3°
Engine	Original CumminsB3.3 80hp	Max noiseon normal use	82dB(A)
Drive & steer model	4WD*4WS	Max allowable side force	400N

Item	Measurement	Item	Measurement
Dimensions		Productivity
Overall length(stowed)	14.02M (46ft)	Platform height max.	38.1M (125ft)
Overall width(stowed)	2.49M (8ft)	Working height max.	40.1M (132ft)
Overall height(stowed)	3.08M (10ft)	Horizontal reach max.	22.5M (74ft)
Ground clearance	0.43M (1.4ft)	Turntable rotation	360°continuous
Wheelbase	3.66M (12ft)	Platform rotation	160°
Overall weight	20300kg (4WD)	Platform Load capacity	250kg (non-restricted)
Platform Size (LWH)	1.830.761.1M(6ft 2.5ft 3.6ft)	Grade ability	40% (4wd)
Platform levelling	Automatic	Turning radius(outside)	5.57M (18ft)
Tire specification	12.00-20	Turning radius(inside)	2.56M (8ft)
Tire type	Solid	Turntable tailswing	1.82M (6ft)
Power		Max. Driving Speed	4.4KM/H
Hydraulic tank vol.	200L	Driving Speed (stowed)	0~4.4km/h
Hydraulic system vol. (inc. the tank)	300L	Driving Speed (extended)	0~1.1km/h
Fuel tank vol.	150L	Max allowable wind force	12.5m/s
Control voltage	24V	Max allowable slope	3°
Engine	Original CumminsB3.3 80hp	Max noiseon normal use	82dB(A)
Drive & steer model	4WD*4WS	Max allowable side force	400N
