Home > Industrial Equipment & Components > Environment Protection Device > Waste Treatment Equipment > Plate Filter Press With TSURUMI Technology (MDQ-105)

Plate Filter Press With TSURUMI Technology (MDQ-105)

Name: Plate Filter Press With TSURUMI Technology (MDQ-105)
Brand: TSURUMI HONGQI
SKU: 140728786
Availability: InStock

Shandong Hongqi Machinery & Electric Group Co., Ltd.

Plate Filter Press With TSURUMI Technology (MDQ-105) thumbnail-1

Plate Filter Press With TSURUMI Technology (MDQ-105) photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

TSURUMI HONGQI

Model Number:

MDQ-105

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name TSURUMI HONGQI

Model Number MDQ-105

We are the"Volute sludge dewatering machine" national industry standard drafting units - Shandong Tsurumi Hongqi Environmental Technology Co.,

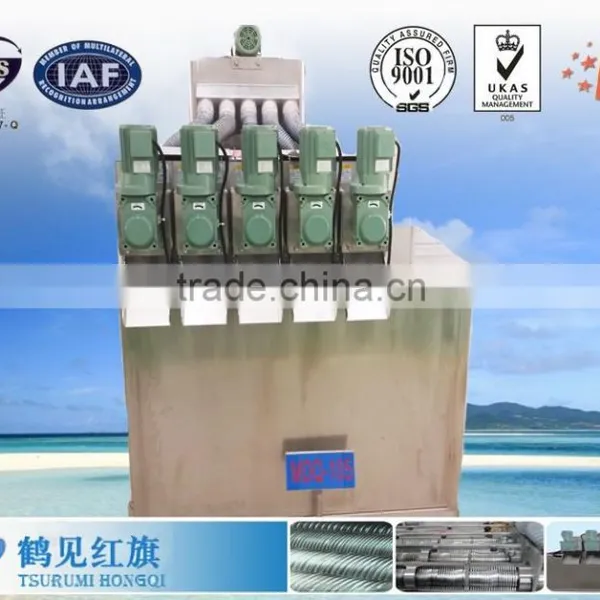

Photos of MDQ-105

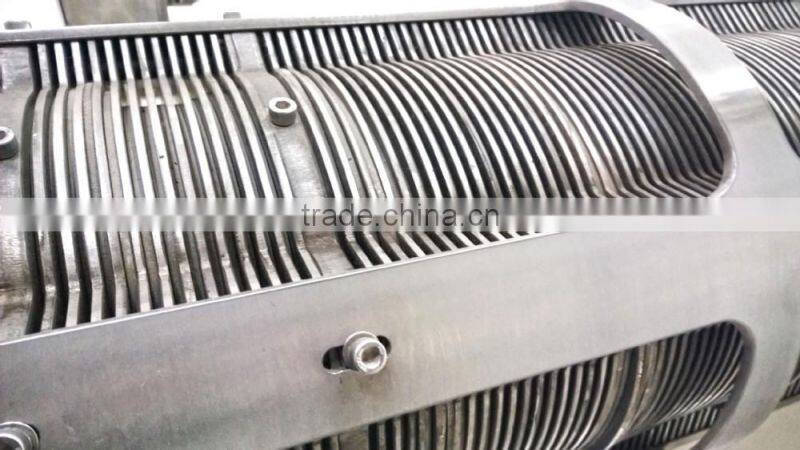

1. Integrated support cylider main shaft.

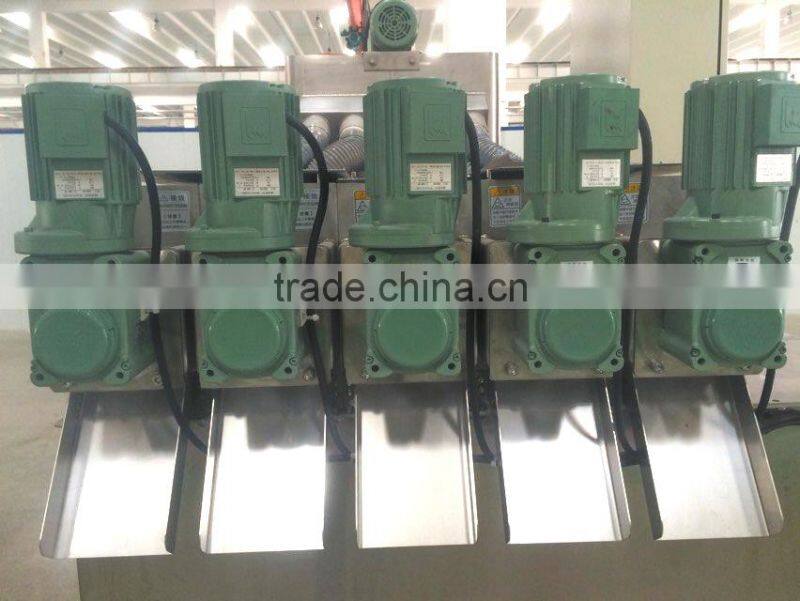

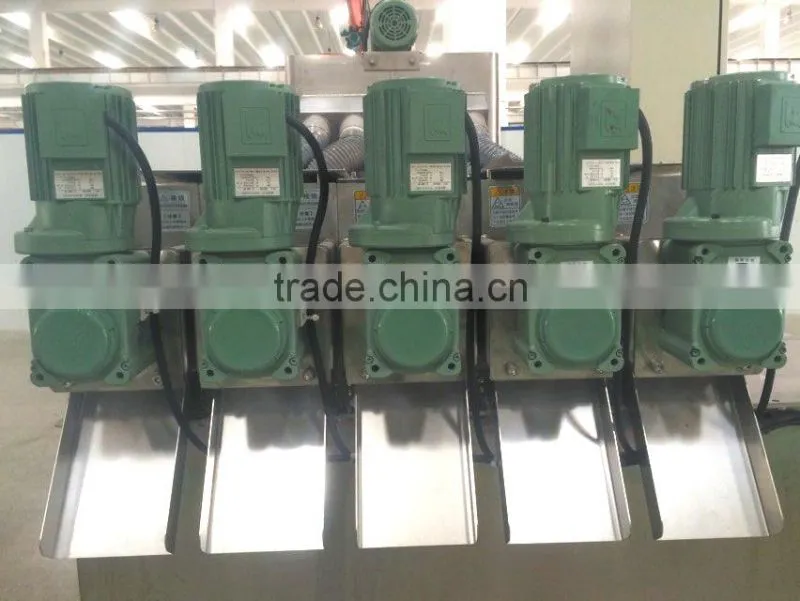

2. High reduction ratio motors.

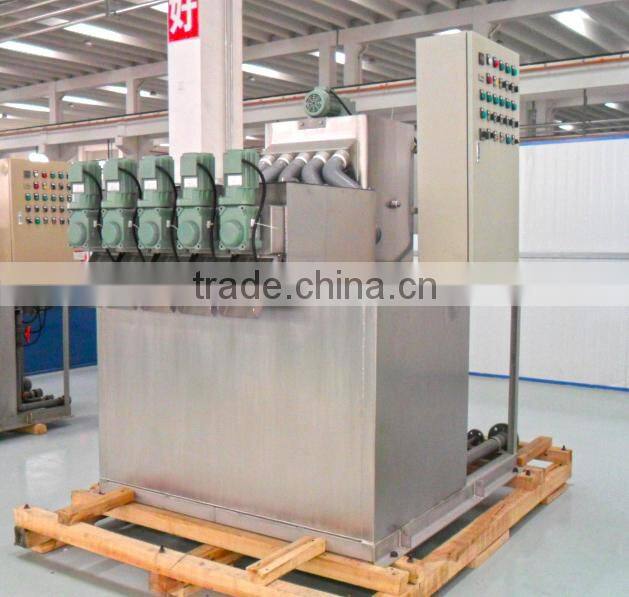

3. Control box and Flocculation tank

How to choose?

Model	Standard processing quantity(kg/h)		Sludge flow(m3/h)
Model	low concentration	high concentration	5000mg/L	20000mg/L
MDQ-101	6	9	1.2	0.6
MDQ-102	12	18	2.4	1.2
MDQ-103	18	25	4	2
MDQ-104	25	35	5	2.5
MDQ-105	30	50	6	3
MDQ-201	20	25	4	1.5
MDQ-202	40	50	8	3
MDQ-203	60	70	12	4.5
MDQ-204	80	100	16	6
MDQ-205	100	120	20	7.5
MDQ-401	80	100	16	6
MDQ-402	160	180	32	12
MDQ-403	240	260	48	16
MDQ-404	320	360	64	24

How does it work ?

Movable disc inner periphery Dehydration Process Condensation Process
rubbing system

As the inner periphery of each
movable disc is touched with the
outer periphery of the screw blade
that let the discs rotate, the movable
discs always move, and this cleans
the clearance that filtrate passes
through. Therefore, it prevents the
clearances from plugging up and
shows stable treatment capacity.
Dehydration Process

The sludge, which is conveyed
by the screw, is compressed
consecutively since the screw
pitch is narrowed toward the
advanced direction. The sludge
is then discharged after being
compressed further by dam plate
that is installed at the end of the
cage.

Condensation Process
As for the condensation sludge
that flowed into the dehydrator,
its most of the water is
discharged outside of the
machine by gravity filtration
through the clearances (the
gap between fixed disc and
movable disc) of the multiplex
structure cage.

Why choose Spiral dehydrator?

Our advantage

Why choose us ?

2.Using integrated support cylider, More storng than others

3.Using Cemented Carbide imported from Japan.

4.Using high reduction ratio motor, prolong service life .

5. We are the"Volute sludge dewatering machine" national

industry standard drafting units.

Product Description

Easy to Install + Energy Saving
As cooperation with Japan Tsurumi Manufacturing Company is the unit that carries related equipment and the control panel compactly, it is easy to install. It is also energy saving because of its low output.
Processing of the oil-containing sludge is possible.
As the structure is such that it is hard to be plugged up in the screen, it is suitable for processing oil-contained sludge such as dissolved-air flotation froth.
Processing of low concentration sludge is possible.
Since it is the structure of having both condensation and dehydration section, it is possible to process low condensation sludge (about 0.3%), which was difficult by the conventional dehydrators.
Continuous automatic operation is possible
Automatic operation can be done by one-touch operation.
Amount of washing water can be minimum.
Wash-water is necessary only for the cleaning of sludge that seeps out of the bowl. The volume of water consumed is the minimum.
Minimum secondary pollution + minimum maintenance
Since dehydrator itself is operated at low-speed rotation, there will be almost no fear for the noise pollution. At the same time, it is almost no need to carry out daily maintenance work because it operates automatically.
