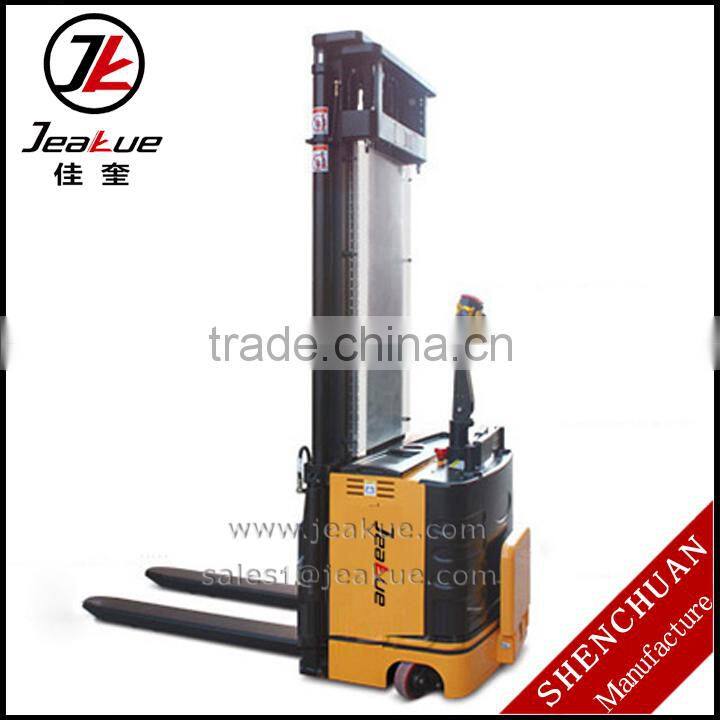

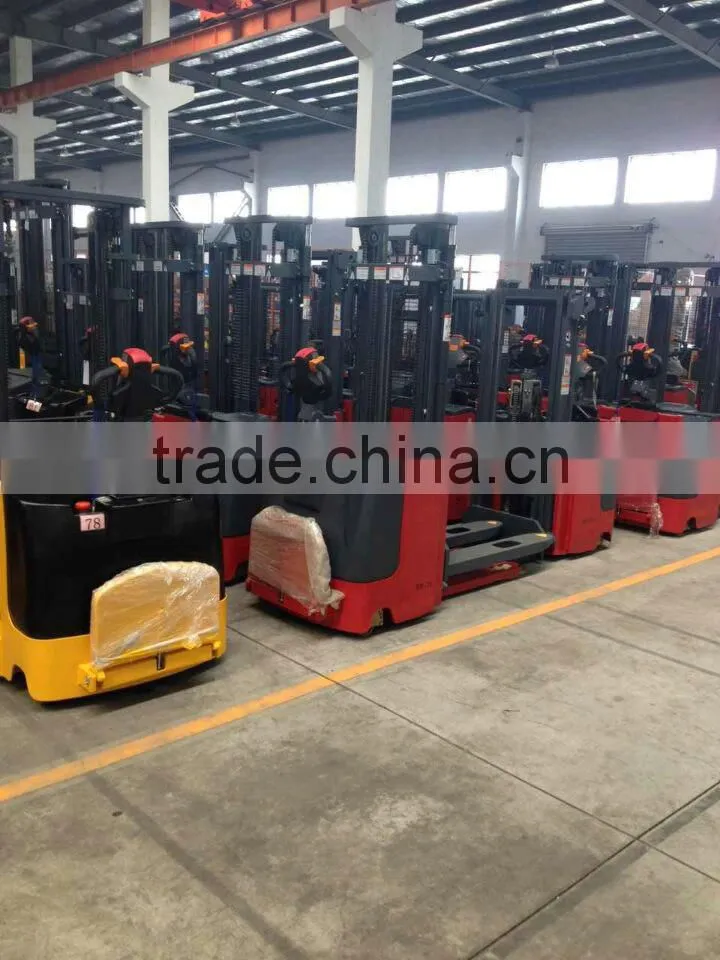

2015 ShenChuan Newest Newly Design High Lift Electric Stacker Standing Operation Type
SAFETY AND PRODUCTIVITY:
1. Emergency reversing device.
2. Built-in pressure relief valve protects the trucks from overloads.

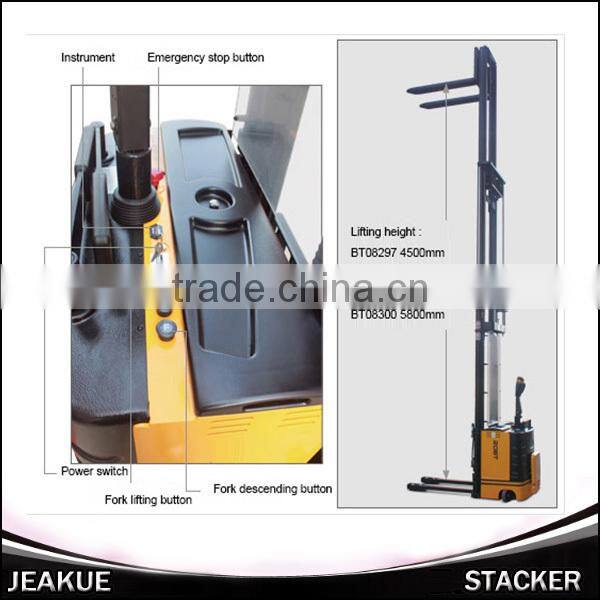

3. Emergency power disconnect.
4. Low speed switch in the handle.
5. Stepless speed control.

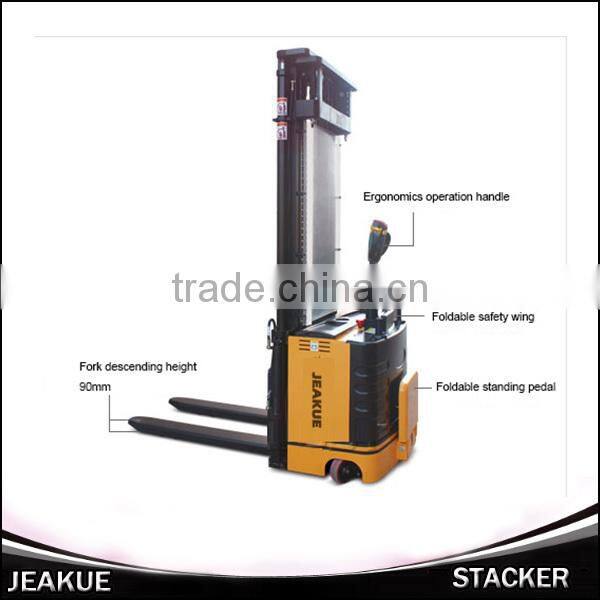

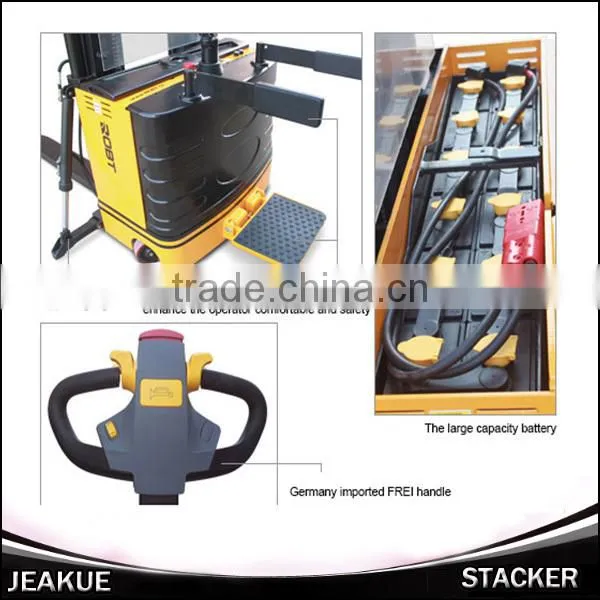

6. The rubber platform and safety guides increase operator safety and reduce fatigue, and they can be folded away when not in use.
STRUCTURAL:
1. The side located cyliders provides operators a wide view and ensures structural stability.
2. Spring-loaded castors improve lateral stability on uneven floors and enhance truck performance and service life.
3. Imported steel for the mast from Germany.
4. Supporting legs.
SERVICEABILITY:
1. Low battery protection setting prolongs the battery use time.
2. CANbus technology reduces wiring complexity and increases reliability.
Remarks:
Heavy duty type Stacker, the full free lifting is only avaiable for lift from 4.5m to 5.8m.
Item No. |
JK8382 |
JK8383 |
JK8384 |
JK8385 |
|||
Driving type |
Power-driven (battery) |
||||||
Operating type |
Standing-driving type |
||||||
Rated load(Q) |
kg |
2000 |
|||||

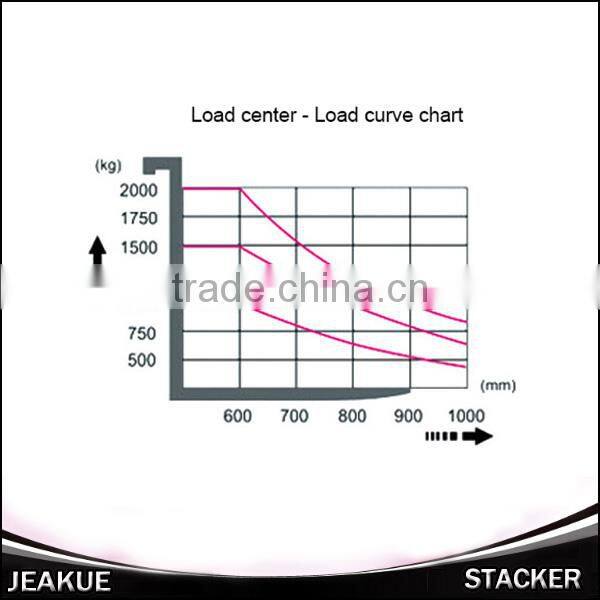

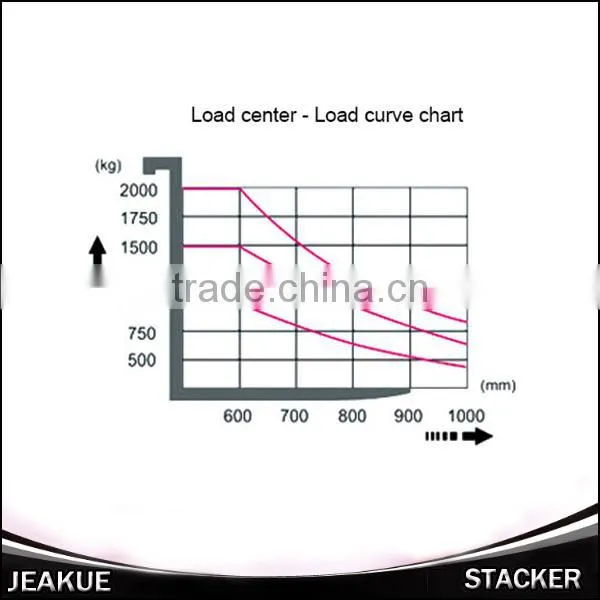

Load center distance(C) |
mm |
500 |
|||||
Front overhang(X) |
mm |
870 |
|||||
Wheel base(Y) |
mm |
1357 |
|||||
Dead weight (including battery) |
kg |
1600 |
1630 |
1630 |
1655 |
||
Axle load, front/back axle (full load) |
kg |
1554/2046 |
1574/2056 |
1574/2056 |
1591/2064 |
||
Axle load, front/back axle (no load) |
kg |
1279/321 |
1299/331 |
1299/331 |
1316/339 |
||
Wheel |
Polyurethane wheel |
||||||
Size of front wheel |
mm |
Φ250×80 |
|||||
Size of back wheel |
mm |
Φ80×70 |
|||||
Size of additional wheel |
mm |
Φ150×60 |
|||||
Wheels, front and back qty (x=driving wheel) |
1x+2/4 |
||||||
Tread of front wheel (b10) |
mm |
886 |
|||||
Tread of back wheel (b11) |
mm |
525 |
|||||

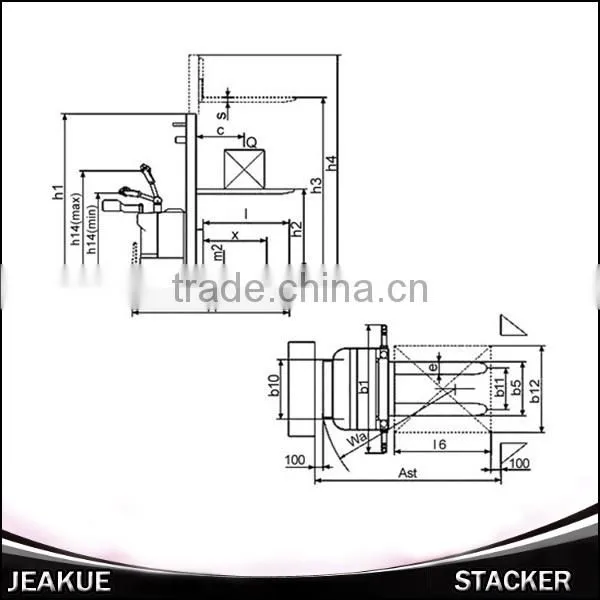

Height when door frame draw back(h1) |
mm |
2087 |
2337 |
2407 |
2407 |
||

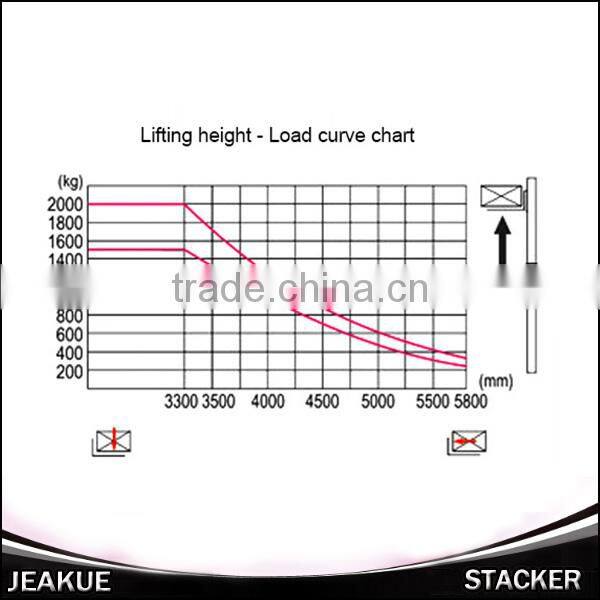

Lifting height(h3) |
mm |
4500 |
5300 |
5500 |
5800 |
||
Max height of door frame when operating (h4) |
mm |
5055 |
5823 |
6033 |
6333 |
||
Height when pallet fork declines (h13) |
mm |
90 |
|||||
Length of fork surface(l2) |
mm |
805 |
|||||
Width of body (b1) |
mm |
1220.8-1630 |
|||||
Size of pallet fork(s/e/l) |
mm |
60/170/1070(1150) |
|||||
Outside width of pallet fork(b5) |
mm |
695 |
|||||
Ground clearance of wheelbase center(m2) |
mm |
21 |
|||||
Passage width, pallet1000×1200(1200laid across the pallet fork)(Ast) |
mm |
2464 |
|||||
Passage width, pallet800×1200(1200laid across the pallet fork)(Ast) |
mm |
2401 |
|||||
Turning radius (Wa) |
mm |
1629 |
|||||
Walking speed(full load/no load) |
KM/h |
4.5/5.6 |
|||||
Lifting speed(full load/no load) |
m/s |
0.09/0.11 |
|||||
decline speed(full load/no load) |
m/s |
0.12/0.09 |
|||||
gradeability(full load/no load) |
% |
5/10 |
|||||
braking |
Electromagnetism brake |
||||||
Noise lever to driver's ear accords with DIN12053 |
dB(A) |
70 |
|||||
Configuration: | |||||||
Name |
Brand |
Palce of original |
|||||
electrical machine |
Chang Yin |
China |
|||||
Storage battery |
JINKUAILE |
China |
|||||
Controller |
ZAPI |
Italy |
|||||
Multi-way valve and oil pump |
Shimadzu |
Japan (Domestic assembly) |
|||||
Magnetic valve |
HIPO |
Italy |
|||||
Charger |
SINONG |
China |
|||||
