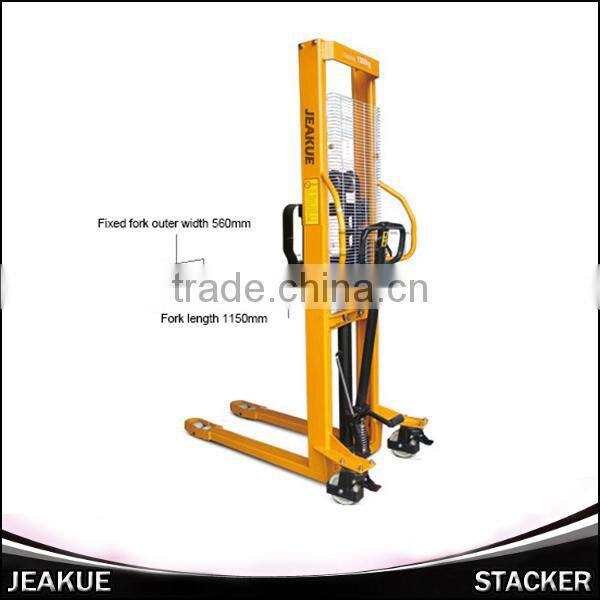

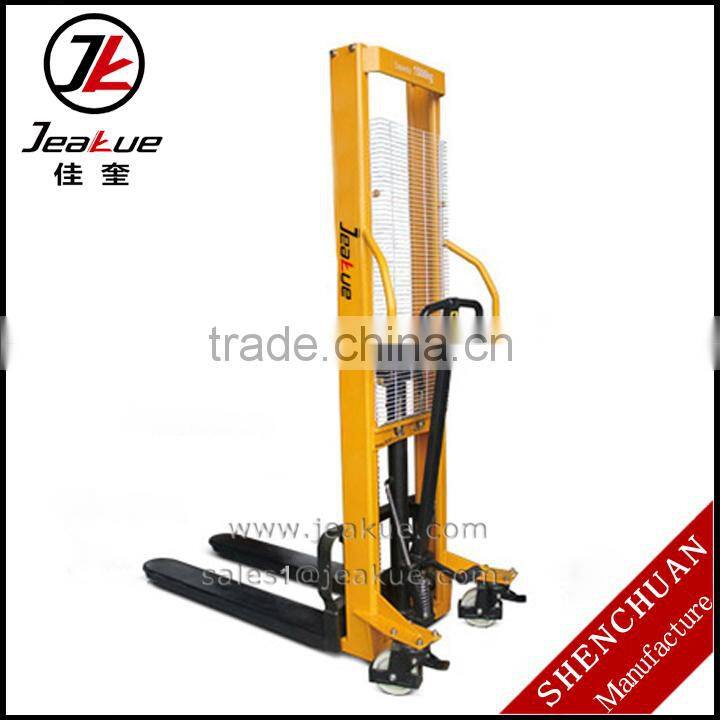

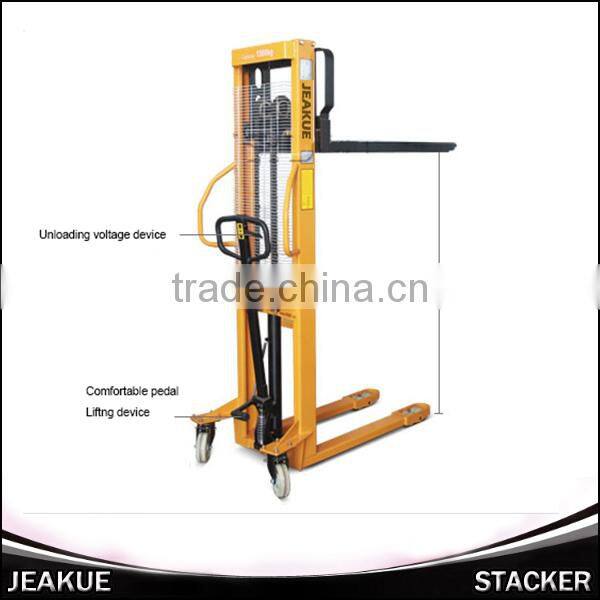

2015 Newest 1500kg Manual Hydraulic Stacker

2015 Newest 1500kg Manual Hydraulic Stacker thumbnail-1
2015 Newest 1500kg Manual Hydraulic Stacker photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
JEAKUE
Contact Supplier Request Quote Chat Now
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name JEAKUE
Model Number JC-HS15
Type Manual Pallet Truck
Rated Loading Capacity 1000/1500kgs Hydraulic manual stacker
Max. Lifting Height 1600/2500MM Hydraulic manual stacker
Min. Lifting Height 85 mm
Overall Dimensions 2.02*0.85*1.75M
Certification CE
After-sales Service Provided Engineers available to service machinery overseas





2015 Newest 1500kg Manual Hydraulic Stacker





Brief introduction
Rated load: 1000/1500kg
Max height of pallet fork: 1600/2500mm
Min height of pallet fork: 85mm
Net weight:240-260kg
Products details:

1.Choosing high quality hydraulic oil cylinder, the sealing is good, it’s safe and labor saving
2.It’s in line with the European standard EN 1757-1:2001;

Item No.
JK8481
JK8482
JK8483
Rated loading capacity
kg
1000
1000
1500
Min height of pallet fork
mm
85
85
85
Max height of pallet fork
mm
1600
2500
1600
Min height of door frame
mm
1980
1830
1980
Size of pallet fork
mm
150/160×60
150/160×60
150/160×60
Length of pallet fork
mm
900/1150
900/1150
900/1150
Width of pallet fork (adjustable type/fixed type)
mm
330~740/550
330~740/550
330~740/550
Turning radius
mm
1250/1380
1250/1000
1250
Weight
kg
240/220
240/220
260
Wheel of pallet fork
mm
Φ74×70
Φ74×70
Φ74×70
Big wheel
mm
Φ180×50
Φ180×50
Φ180×50









 2015 Newest 1500kg Manual Hydraulic Stacker2015 Newest 1500kg Manual Hydraulic Stacker2015 Newest 1500kg Manual Hydraulic Stacker2015 Newest 1500kg Manual Hydraulic Stacker

2015 Newest 1500kg Manual Hydraulic Stacker
